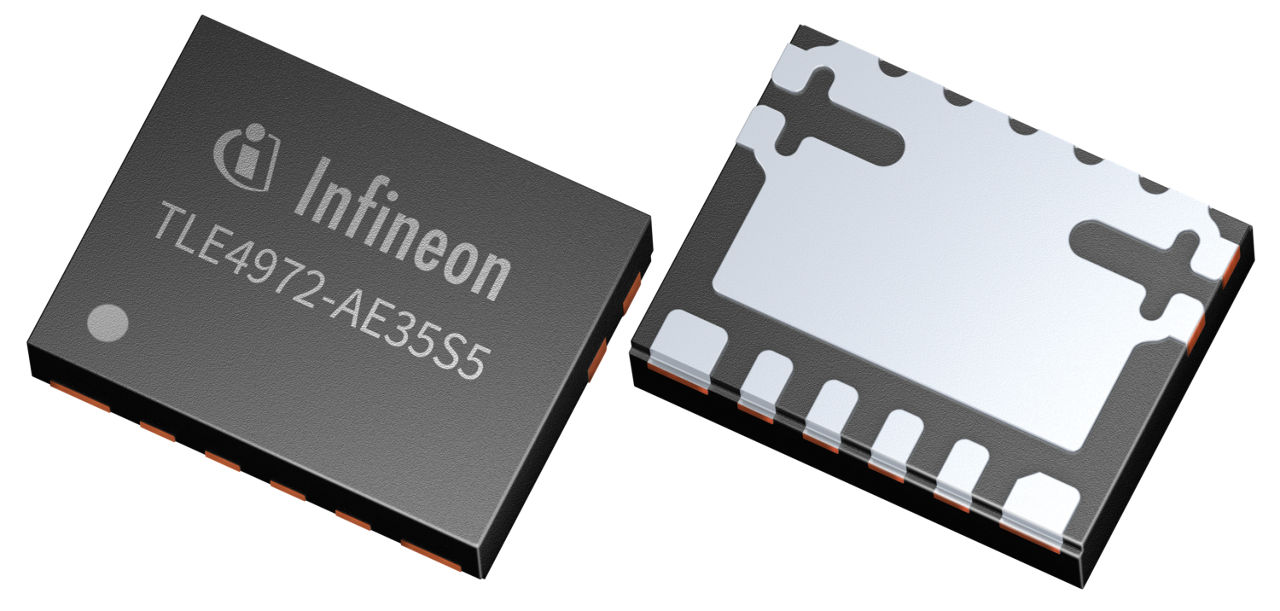

TLE4972-AE35S5

XENSIV™ - TLE4972-AE35S5 magnetic coreless current sensor in a leadless VSON-6 package
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4972-AE35S5
TLE4972-AE35S5
ea.
Data Sheet

Product details

  • Accuracy
    2 %
  • Classification
    ISO 26262-compliant
  • Diagnosis
    OCD 1, OCD 2, OV, UV, diagnosis mode
  • Interfaces
    Analog
  • Measurement range
    31 mT
  • Planned to be available until at least
    2039
  • Supply Voltage
    3.1 - 3.5
Recommended
OPN
TLE4972AE35S5XUMA1
Product Status active and preferred
Infineon Package
PG-VSON-6
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-VSON-6
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Robust, high precision current sensor TLE4972 –AE35S5 using Hall technology, ideal for EMC prone environments. Its proprietary compensation and digital measurement ensure high stability over temperature and lifetime. With accurate measurement up to 31 mT, it avoids saturation & hysteresis. VSON-6 package enables low power losses. Includes overcurrent pins for fast detection in safety critical applications, ISO 26262-compliant up to ASIL B.

Features

  • High accurate, scalable, DC & AC sensing
  • Low sensitivity error over temperature
  • Stability of offset over temperature
  • Bandwidth provides fast response time
  • Magnetic stray field suppression
  • Dual fast Over-Current Detection (OCD)
  • Compact size reduces losses
  • Configure analog output operational mode
  • Supply voltage 3.1 to 3.5V
  • ISO 26262 SEooC for ASIL B Safety
  • Varied solutions for diverse wiring.
