TLE4291E

The TLE4291E is a monolithic integrated low-dropout voltage regulator in a PG-SSOP-14 EP exposed pad package, designed for automotive applications.
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4291E
TLE4291E
Data Sheet

Product details

  • Accuracy
    2 %
  • Budgetary Price €/1k
    0.8
  • Dropout Voltage
    250 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    yes
  • Family
    OPTIREG™ linear General Purpose
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    3.3 V to 45 V
  • Output Current max
    450 mA
  • Output Voltage Type
    5.0 V
  • Over Voltage Protection
    no
  • Currently planned availability until at least
    2038
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    220 µA
  • Regulator Type
    General Purpose
  • Reset
    yes
  • Status Output
    no
  • Watchdog
    yes
Recommended
OPN
TLE4291EXUMA2
Product Status active and preferred
Infineon Package
PG-SSOP-14
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-SSOP-14
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The TLE4290 regulates input voltage up to 42V to 5.0V output, driving loads up to 450mA. It has short-circuit protection, integrated over-temperature shutdown, and features an integrated reset and watchdog function, ideal for supplying microprocessor systems in automotive environments. The watchdog and power-on reset delay timing can be programmed using an external delay capacitor.

Features

  • Output Voltage 5 V ± 2%
  • Output Current up to 450 mA
  • Very low Current Consumption
  • Power-on and Undervoltage Reset with PDT
  • Integrated Standard Watchdog
  • Reset Low Down to V Q; = 1 V
  • Output Current Limitation
  • Reverse Polarity Protection
  • Over temperature Protection
  • Suitable for Automotive Electronics
  • Temperature Range from -40 °C to 150 °C

Benefits

  • Robust Protection Features
  • Wide input & temp range operation

Diagrams

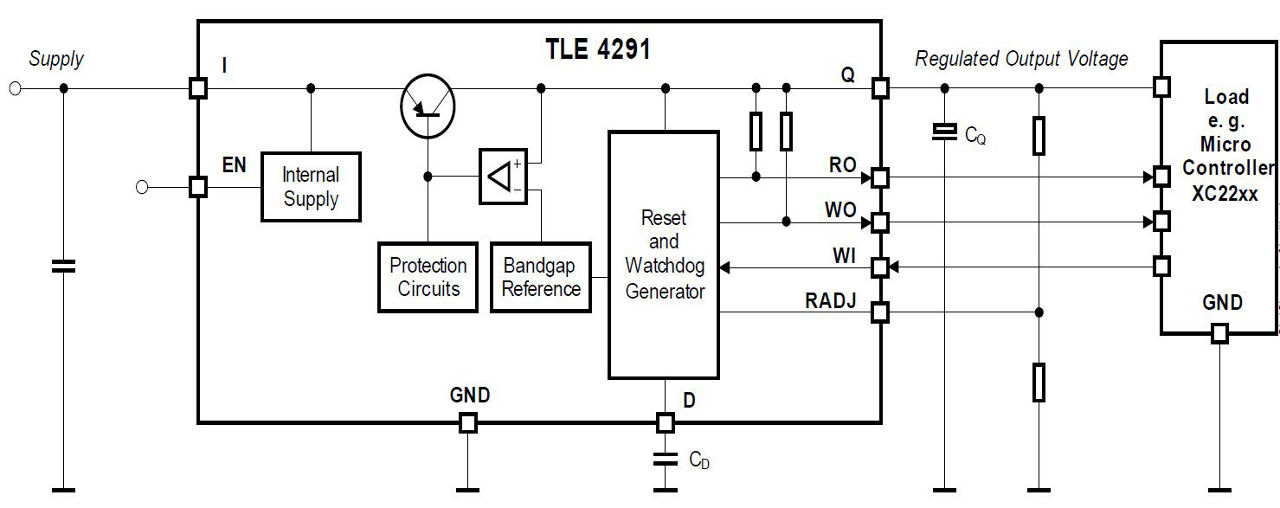

TLE4291-Block-Diagram
TLE4291-Block-Diagram
TLE4291-Block-Diagram TLE4291-Block-Diagram TLE4291-Block-Diagram
×
