TLE4264-2G

The TLE4264-2G is a monolithic integrated low-drop fixed voltage regulator which can supply loads up to 150 mA.
Data Sheet
package
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4264-2G
TLE4264-2G
ea.
Data Sheet

Product details

  • Accuracy
    3 %
  • Budgetary Price €/1k
    0.63, 0.63
  • Dropout Voltage
    220 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    no
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    5.5 V to 45 V
  • Output Current max
    100 mA
  • Output Voltage Type
    5.0 V
  • Over Voltage Protection
    no
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    40 µA
  • Regulator Type
    General Purpose
  • Reset
    no
  • Status Output
    no
  • Watchdog
    no
OPN
TLE42642GHTSA2 TLE42642GHTMA1
Product Status not for new design not for new design
Infineon Package
PG-SOT223-4
PG-SOT223-4
Package Name SOT-223 SOT-223
Packing Size 1000 4000
Packing Type TAPE & REEL TAPE & REEL
Moisture Level 1 1
Moisture Packing NON DRY NON DRY
Lead-free Yes Yes
Halogen Free No No
RoHS Compliant Yes Yes
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package
PG-SOT223-4
Package Name SOT-223
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

Product Status not for new design
Infineon Package
PG-SOT223-4
Package Name SOT-223
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The TLE4264-2 is a pin-compatible alternative to the TLE4264 with reduced quiescent current (typ. 40 µA). Ideal for low quiescent current applications. Offers overload, short-circuit, and over-temperature protection. Provides stabilized voltage (V Q,nom = 5 V) with ±3% accuracy for input voltages of 5.5 V - 45 V. Accuracy of ±2% for load currents up to 50 mA. Operating temperature range: -40 to 150 °C.

Features

  • Output voltage tolerance  ≤   ± 3% ( ± 2% up to 50 mA)
  • 150 mA current capability
  • Low-drop voltage
  • Very low current consumption: 40  µ A
  • Over temperature protection
  • Short-circuit proof
  • Suitable for use in automotive electronics
  • Reverse polarity proof
  • Green Product (RoHS compliant)
  • AEC Qualified

Benefits

  • Robust protection features
  • Wide input operation and temperature range

Diagrams

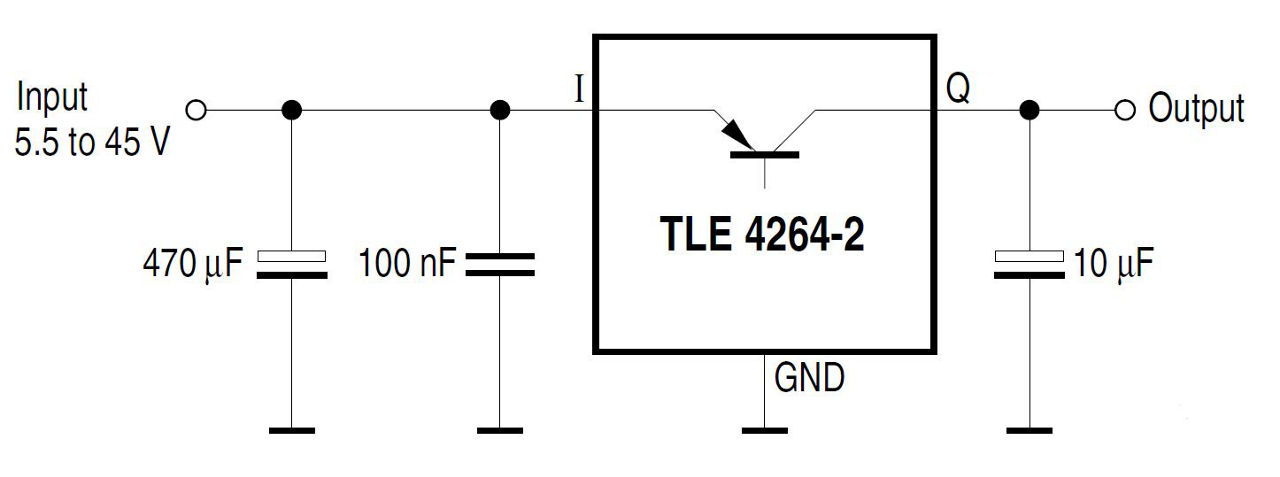

TLE4264-2-Application-Diagram
TLE4264-2-Application-Diagram
TLE4264-2-Application-Diagram TLE4264-2-Application-Diagram TLE4264-2-Application-Diagram

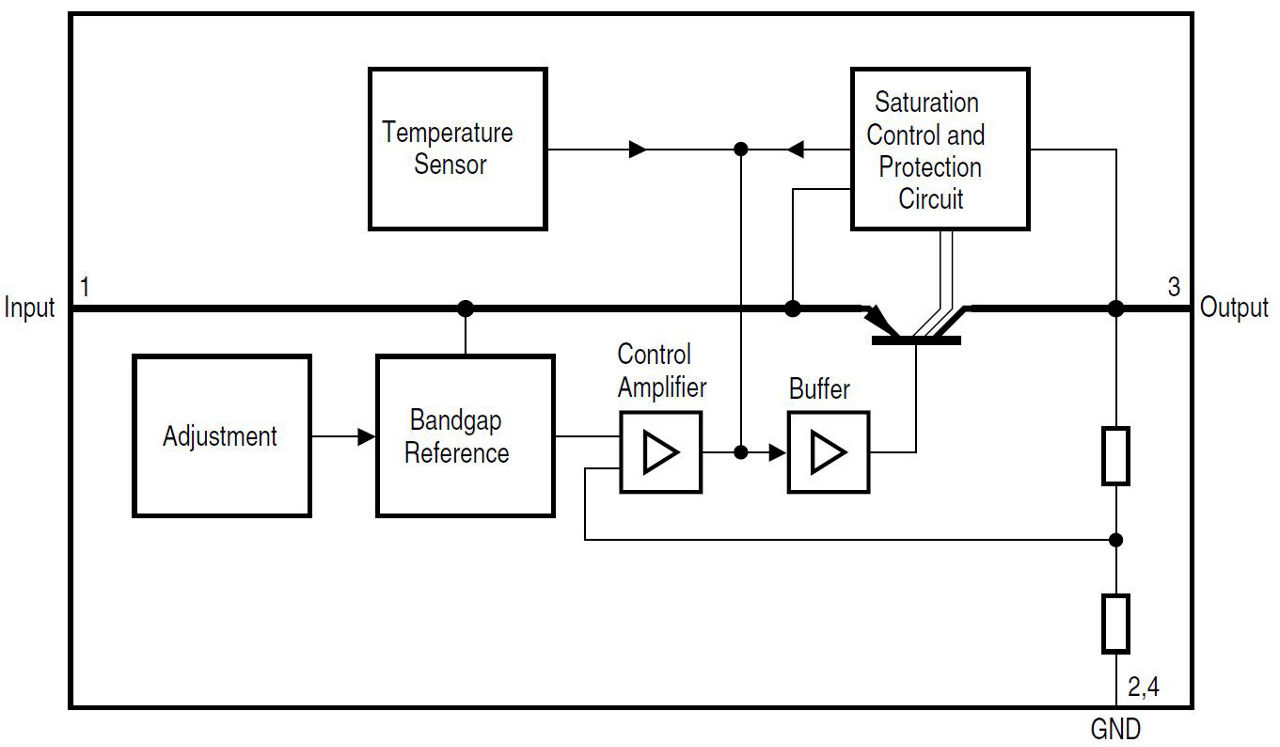

TLE4264-2-Block-Diagram TLE4264-2-Block-Diagram TLE4264-2-Block-Diagram
×
