TDM3883

END OF LIFE
IPOL 3 A single output high-efficiency buck regulator module with integrated inductor
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TDM3883
TDM3883
Data Sheet

Product details

  • Family
    IPOL Module
  • Industrial 24V Input
    No
  • Input Voltage
    4.5 V to 14 V
  • Internal Bias LDO
    Yes
  • Iout max
    3 A
  • Moisture Sensitivity Level
    3
  • Number of Outputs
    1
  • Output Voltage
    0.5 V to 5 V
  • Over Voltage Protection
    Yes
  • Package
    PG-LGA-15
  • Power Good
    Yes
  • Product Category
    Analog Power Module
  • Qualification
    Industrial
  • Regulator Type
    Single Output
  • Switching Frequency
    800 kHz
  • Technology
    EaSy COT
  • Topology
    Buck
  • Type
    Single phase
OPN
TDM3883XUMA1
Product Status discontinued
Infineon Package
PG-LGA-15
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
PG-LGA-15
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

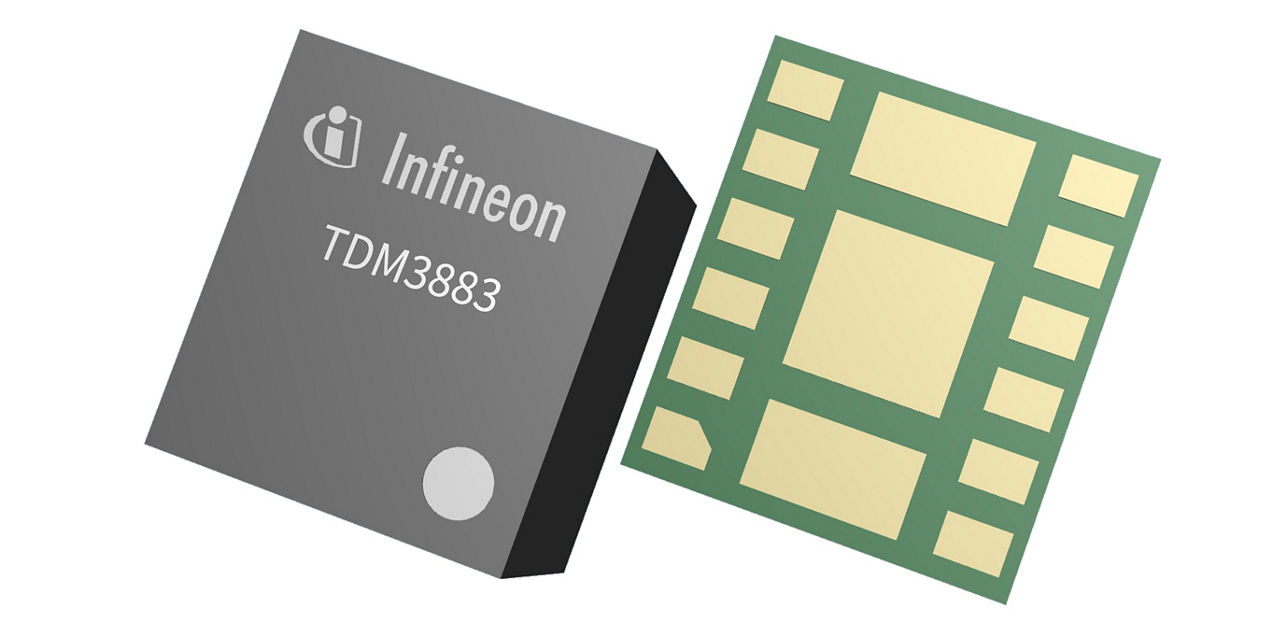

The TDM3883 IPOL power module with integrated inductor is a complete 3 A buck converter. It offers a high-efficiency load and line regulation over a wide input supply range with a compact design. With integrated inductor and capacitors, it reduces external components and saves 80% of PCB area. Therefore, TMD3883 allows a much higher power density while minimizing the parasitic parameters.

Features

  • Optimized module with inductor included
  • Micro-sized 2.7 mm x 3.1 mm x 2.3 mm
  • Continuous 3 A load capability
  • Single input voltage range (4.5V to 14V)
  • 800 kHz switching frequency
  • 10 µA supply current at shutdown
  • Enhanced stability IPOL engine
  • Enhanced light load efficiency
  • Forced continuous conduction mode option
  • Thermally compensated OCP
  • Soft-start with pre-bias capability
  • Precision reference (0.5 V ±1.0%)

Benefits

  • Easy design with fewer components
  • High power density
  • High efficiency
  • Reduced BOM, 80% area saving
  • Low parastics improves performance
  • Longer battery life
  • High reliability Internal inductor
