IQE006NE2LM5CG

OptiMOS™ low-voltage power MOSFET 25V in PQFN 3.3x3.3 Source-Down Center-Gate package with industry leading RDS(on)
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IQE006NE2LM5CG
IQE006NE2LM5CG
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    0.66
  • Ciss
    4100 pF
  • Coss
    1700 pF
  • ID (@25°C) max
    298 A
  • IDpuls max
    1192 A
  • Operating Temperature
    -55 °C to 150 °C
  • Package
    PQFN 3.3x3.3 Source-Down
  • Polarity
    N
  • Ptot max
    89 W
  • QG (typ @4.5V)
    28.5 nC
  • QG (typ @10V)
    61.7 nC
  • RDS (on) (@10V) max
    0.65 mΩ
  • RDS (on) (@4.5V) max
    0.8 mΩ
  • RthJA max
    60 K/W
  • RthJC max
    1.4 K/W
  • Rth
    1.4 K/W
  • Special Features
    Center-Gate
  • VDS max
    25 V
  • VGS(th)
    1.2 V to 2 V
  • VGS max
    16 V
Recommended
OPN
IQE006NE2LM5CGATMA1
Product Status active and preferred

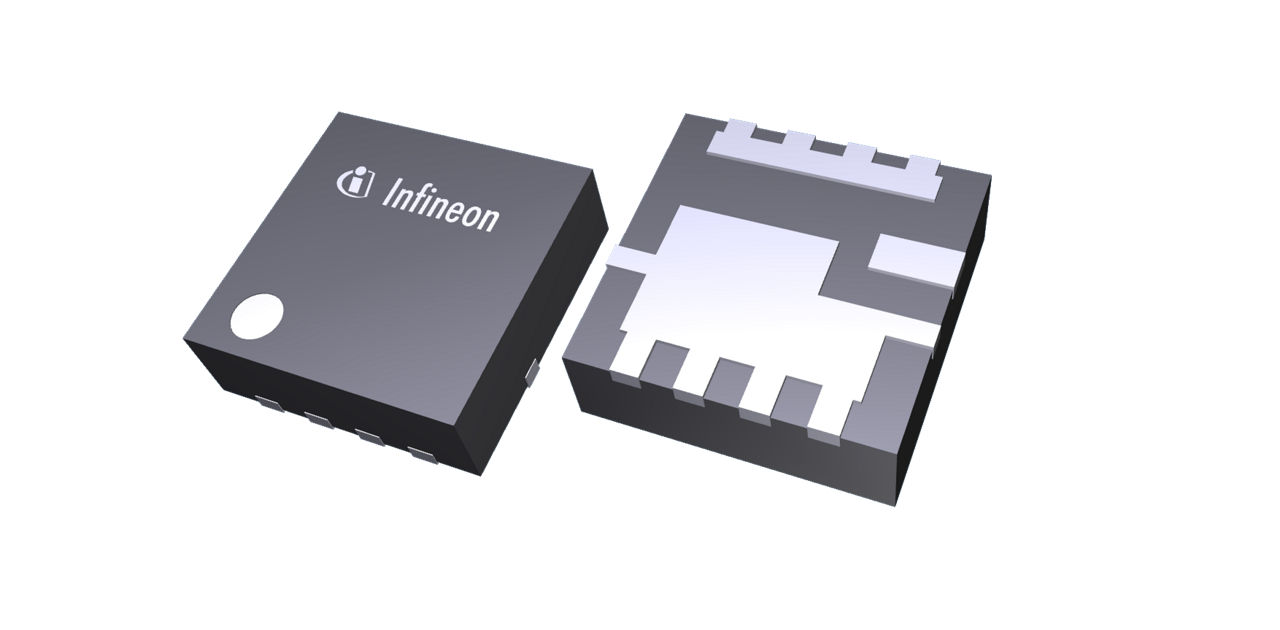

Infineon Package
PG-TTFN-9
Package Name PQFN 3.3x3.3 Source-Down
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TTFN-9
Package Name PQFN 3.3x3.3 Source-Down
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
IQE006NE2LM5CG OptiMOS™ low-voltage power MOSFET Source-Down is available as a Center-Gate footprint version. Placing the gate in the middle of the footprint leads to an optimized source connection. Center-Gate footprint offers the advantage of optimized and easy parallelization of MOSFETs as it comes with a larger drain to source creepage distance, improving current capability, resulting in higher output levels.

Features

  • RDS(on) reduction up to 30%
  • Superior thermal management option
  • Optimized layout possibilities
  • Two footprint versions available

Benefits

  • Higher current capability
  • Highest power density and performance
  • Shrink of form factor
  • SuperSO8 performance in smaller package
  • Optimized PCB parasitics
  • Decrease of RthJA and RthJC
  • Better transfer of power losses
  • Double-side cooling
  • Source-Down for existing PCB
  • Center-Gate optimizes parallelization
