IKFW40N60DH3E

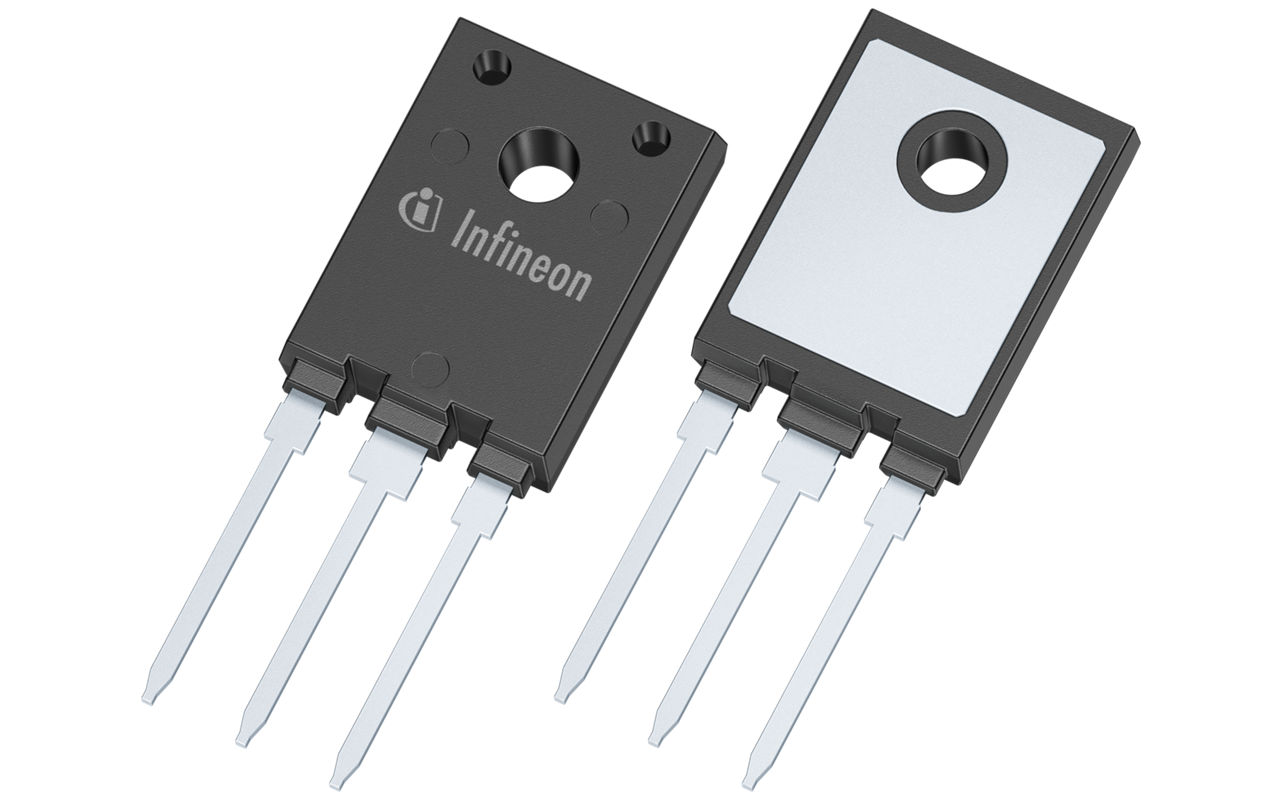

600 V, 30 A IGBT with anti-parallel diode in TO-247 package
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IKFW40N60DH3E
IKFW40N60DH3E
ea.
Data Sheet

Product details

  • Eoff (Hard Switching)
    0.36 mJ
  • Eon
    0.87 mJ
  • IC (@ 25°) max
    34 A
  • ICpuls max
    90 A
  • IF max
    35 A
  • IFpuls max
    90 A
  • Irrm
    9.9 A
  • Package
    PG-TO247-3
  • Ptot max
    111 W
  • QGate
    107 nC
  • Qrr
    0.4 nC
  • RGint
    0 Ω
  • RG
    10 Ω
  • Switching Frequency
    18 kHz to 60 kHz
  • td(off)
    144 ns
  • td(on)
    18 ns
  • Technology
    IGBT HighSpeed 3
  • tf
    16 ns
  • tr
    34 ns
  • tSC
    5 µs
  • VCE(sat)
    2.3 V
  • VCE max
    600 V
  • VF
    1.6 V
Recommended
OPN
IKFW40N60DH3EXKSA1
Product Status active
Infineon Package
PG-HSIP247-3
Package Name TO-247-3 advanced isolation
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-HSIP247-3
Package Name TO-247-3 advanced isolation
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Hard-switching 600 V, 30 A high speed TRENCHSTOP™ IGBT3 co-packed with Rapid 1 fast and soft anti-parallel diode in a TO-247 advanced isolation package for a best cost efficient solution.

Features

  • Short circuit withstand time 5μs
  • Positive temperature coefficient
  • Low EMI
  • Very soft Anti-parallel diode
  • Maximum junction temperature 175°C
  • 2500 VRMSelectrical isolation
  • 100% tested isolated mounted surface
  • Pb-free lead plating; RoHS compliant
  • Qualified for industrial application

Benefits

  • No need of isolation/thermal grease
  • 35% reduction in assembling time
  • eliminated faults of isolation foil
  • Up to 10°C lower Tc
  • Up to 20% Ioutincrease
  • manufacturing process control
