IFX90121EL V50

The IFX90121EL V50 is a high frequency PWM step-down DC/DC converter with an integrated PMOS power switch, packaged in a small PG-SSOP-14
Data Sheet
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IFX90121EL V50
IFX90121EL V50
Data Sheet

Product details

  • Comments
    Vin up to 45V, 2.2 MHz Step-Down Regulator with Low Quiescent Current, PG-SSOP-14
  • Inhibit
    yes
  • IQ max
    500 mA
  • Iq
    45 µA
  • Moisture Sensitivity Level
    3
  • Mounting
    SMT
  • Number Reflow
    3
  • Operating Temperature
    -40 °C to 150 °C
  • Output Current Type
    Buck Converter
  • Peak Reflow Temp max
    260 °C
  • Product ID
    SP001118296
  • Protect
    yes
  • Regulator Type
    Buck Regulator
  • Replacement
    TLF50211EL
  • Reset
    no
  • Tolerance
    2(4)%
  • VQ (multiple)
    5.0 V
  • Watchdog
    no
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
Fixed 5V, 500mA, 2.2 MHz Step-Down Converter with low quiescent current and integrated powertransistor

Features

  • 500 mA step down voltage regulator
  • 5 V Output voltage
  • ± 2% output voltage tolerance
  • Low quiescent current (less than 45μA at nominal input voltage)
  • Integrated power transistor
  • Current mode PWM regulation
  • PFM mode for light load current
  • Input voltage range from 4.75V to 45V
  • 2.2 MHz switching frequency
  • 100% Duty cycle
  • Synchronization input
  • Very low shutdown current consumption (<2 μA)
  • Soft-start function
  • Input under voltage lockout
  • Suited for industrial applications: Tj = -40 °C to +125 °C
  • Green Product (RoHS compliant

Benefits

  • High switching frequency of 2.2MHz allows use of small inductors and capacitors henceminimizing board space required
  • Low quiescent current in shutdown makes the device suitable for battery powered systems
  • Pulse Frequency Modulation to optimize efficiency in light load conditions

Applications

Diagrams

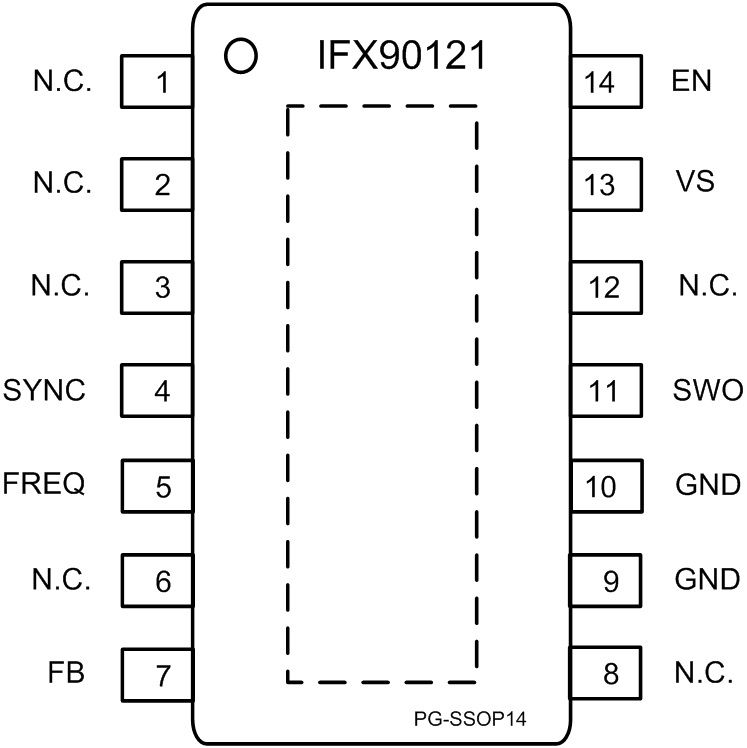

IFX90121ELV50_PinOut
IFX90121ELV50_PinOut
IFX90121ELV50_PinOut IFX90121ELV50_PinOut IFX90121ELV50_PinOut

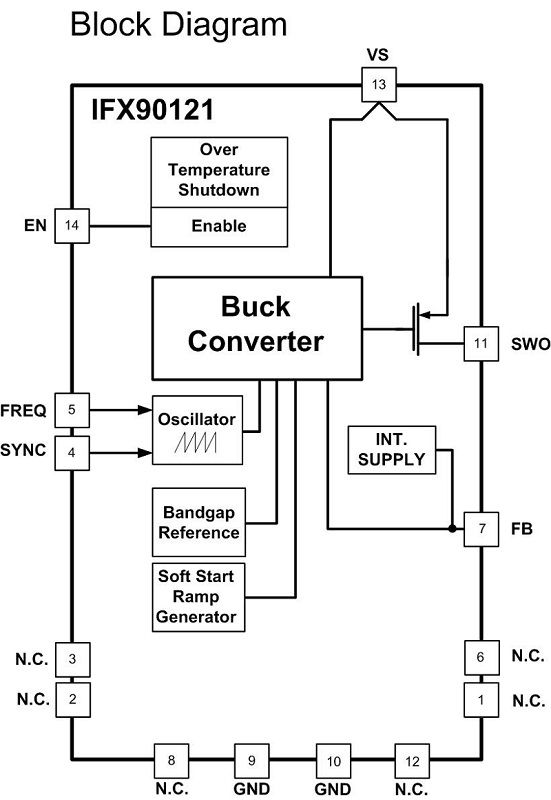

Blockdiag_IFX90121 Blockdiag_IFX90121 Blockdiag_IFX90121
IFX90121_low_resolution IFX90121_low_resolution IFX90121_low_resolution

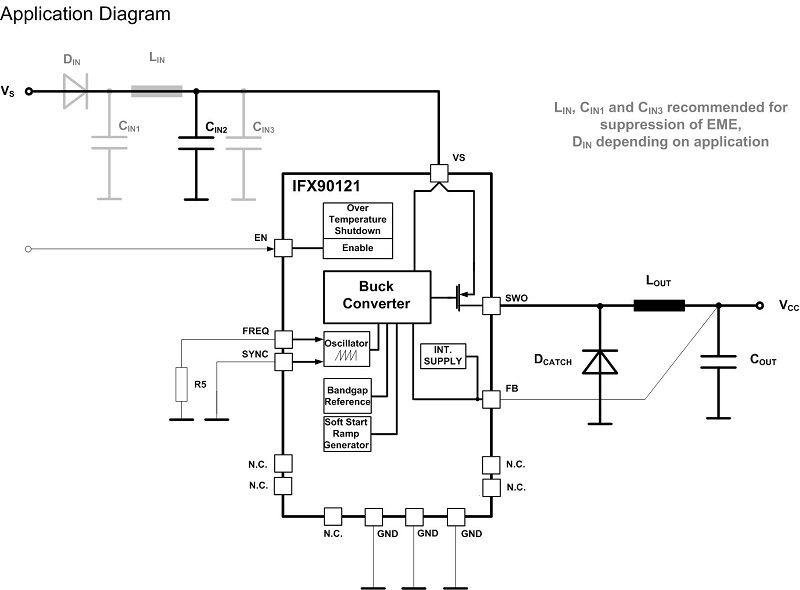

ApplicationDiagram_IFX90121 ApplicationDiagram_IFX90121 ApplicationDiagram_IFX90121
×
