not for new design
RoHS Compliant

IAUC45N04S6N070H

40 V, N-Ch, 7.0 mΩ max, Automotive MOSFET, Dual SSO8 HB (5x6), OptiMOS™ 6
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IAUC45N04S6N070H
IAUC45N04S6N070H
ea.

Product details

  • ID (@25°C) max
    45 A
  • Launch year
    2020
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    PG-TDSON-8
  • Currently planned availability until at least
    2029
  • Polarity
    N+N
  • QG (typ @10V)
    9 nC
  • QG (typ @10V) max
    12 nC
  • Qualification
    Automotive
  • RDS (on) (@10V) max
    7 mΩ
  • Technology
    OptiMOS™-6
  • VDS max
    40 V
  • VGS(th)
    2.6 V
OPN
IAUC45N04S6N070HATMA1
Product Status not for new design
Infineon Package

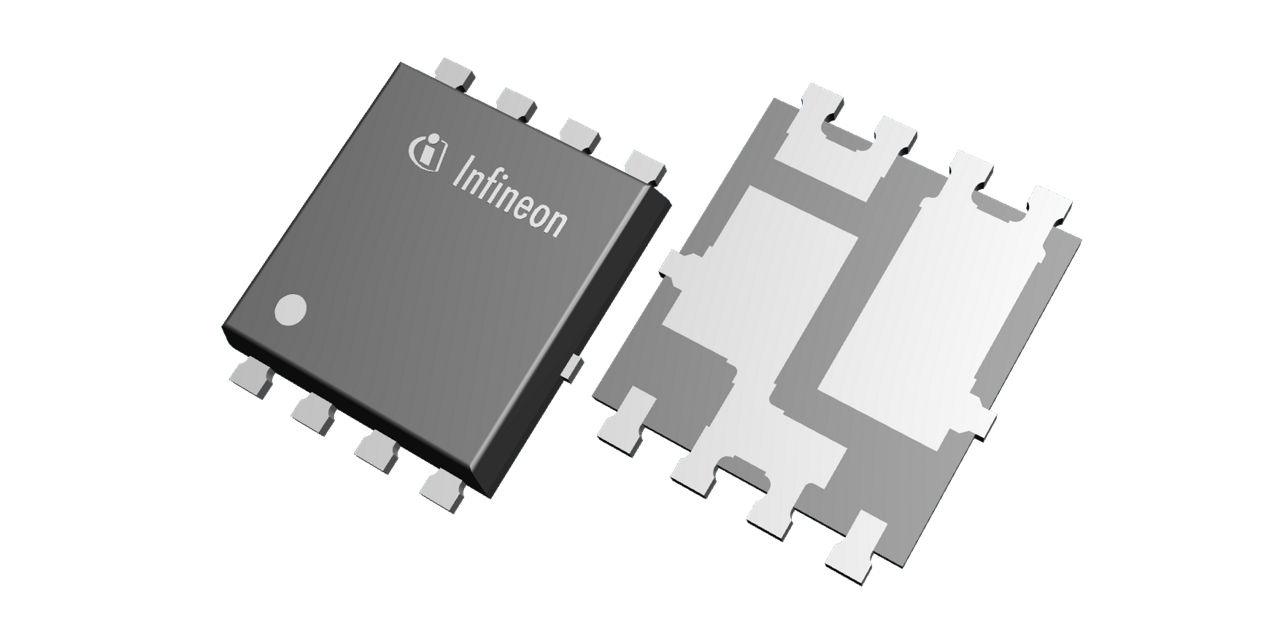

Package Name Dual SSO8 HB
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
ea. in stock

Product Status not for new design
Infineon Package
Package Name Dual SSO8 HB
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The dual SSO8 5x6 mm² package is perfect for single loads. For bridge applications, routing with a dual MOSFET is complex and may require a larger PCB area, with its current ratings limited to 20A. The integrated half-bridge reduces PCB area by providing enhanced routing for bridge applications. It is designed based on optimized OptiMOS™6 technology, offering a wide RDS(ON) range from 3.0 mΩ to 7.0 mΩ and an increased current rating of 60A.

Features

  • Integrated half-bridge SSO8 (5x6)
  • 5x6 mm² reduced footprint
  • Optimized layout for B6 apps
  • Optimized switching & power losses
  • Package JEDEC listed
  • Cost efficiency for low & mid power drive
  • Cu-clip soldered
  • PPAP Capable Device

Benefits

  • Enhanced routing for bridge applications results
  • Optimized for OptiMOS™6
  • RDS(ON) range 3.0 mΩ - 7.0 mΩ
  • Increased DS current rating of 60A
