IAUA250N04S6N008

END OF LIFE

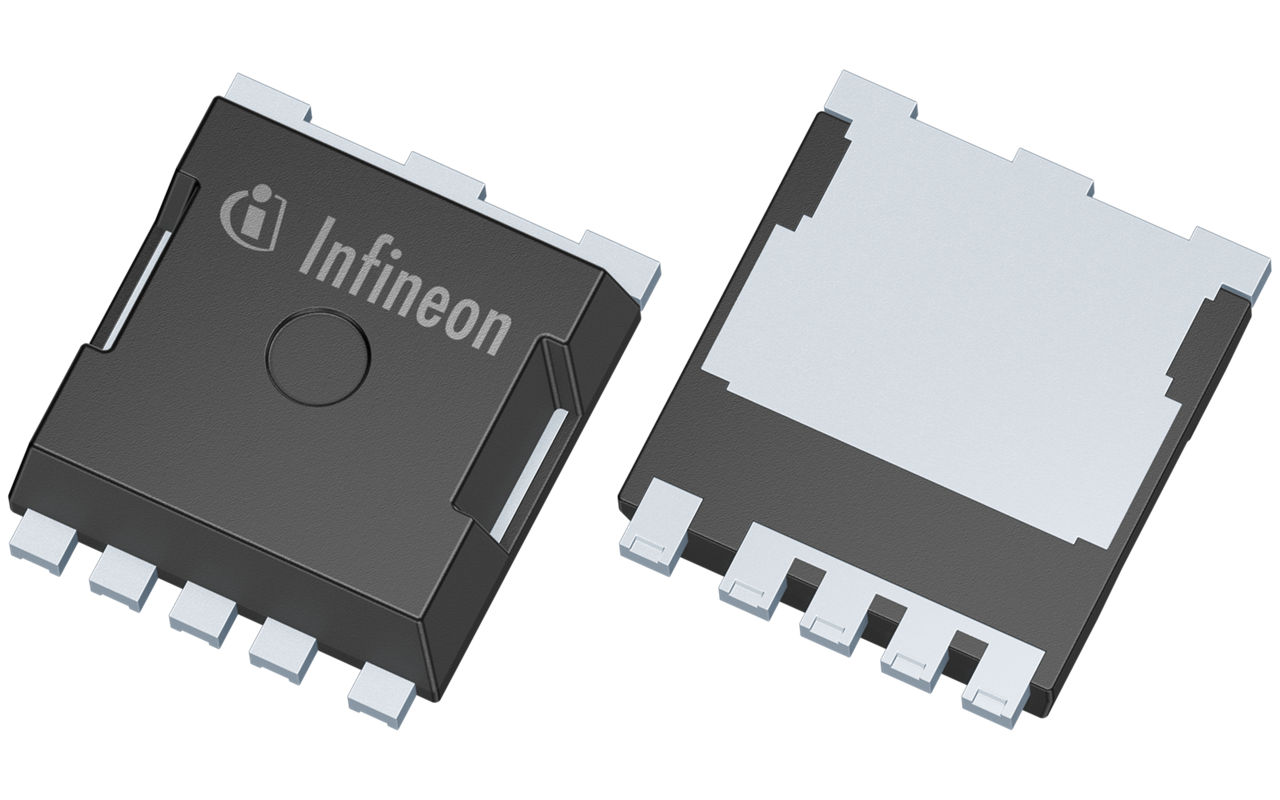

40 V, N-Ch 0.8 mΩ max, Automotive MOSFET, sTOLL (7x8), OptiMOS™ 6
Data Sheet
package
board
View replacement

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IAUA250N04S6N008
IAUA250N04S6N008
View replacement
Data Sheet

Product details

  • ID max
    250 A
  • ID (@25°C) max
    250 A
  • Launch year
    2022
  • Operating Temperature
    -55 °C to 175 °C
  • Planned to be available until at least
    2029
  • Polarity
    N
  • QG (typ @10V)
    81 nC
  • QG (typ @10V) max
    109 nC
  • Qualification
    Automotive
  • RDS (on) (@10V) max
    0.8 mΩ
  • Technology
    OptiMOS™-6
  • VDS max
    40 V
  • VGS(th)
    2.6 V
OPN
IAUA250N04S6N008AUMA1
Product Status discontinued
Infineon Package
PG-HSOF-5
Package Name sTOLL
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
View replacement

Product Status discontinued
Infineon Package
PG-HSOF-5
Package Name sTOLL
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

Features

  • OptiMOS™ power MOSFET
  • N-ch.-Normal Level-Enhancement mode
  • Extended qualification beyond AEC-Q101
  • Enhanced electrical testing
  • Robust design
  • MSL3 up to 260°C peak reflow
  • Green product (RoHS compliant)
  • 100% Avalanche tested
  • PPAP capable device
