BTS50007-1LUA

Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTS50007-1LUA
BTS50007-1LUA
ea.
Data Sheet

Product details

  • Certifications
    ISO 26262-ready
  • Channels
    1
  • Classification
    ISO 26262-ready
  • Diagnostics
    Sense
  • Family
    Power PROFET™ + 12V
  • Halogen-free
    yes
  • IL (Short Circuit Current)
    130 A
  • Load Current
    55 A
  • Mounting
    SMT
  • Nominal Load Current per channel
    55 A
  • Operating Temperature
    -40 °C to 150 °C
  • Planned to be available until at least
    2039
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 150°C) max
    1.4 mΩ
  • RDS (on) (@ Tj = 25°C)
    0.7 mΩ
  • Recommended Operating Voltage
    3.1 V to 28 V
  • toff (Turn OFF time) max
    220 µs
  • ton (Turn ON time) max
    190 µs
Recommended
OPN
BTS500071LUAAUMA1
Product Status active and preferred
Infineon Package
PG-HSOF-8
Package Name N/A
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-HSOF-8
Package Name -
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

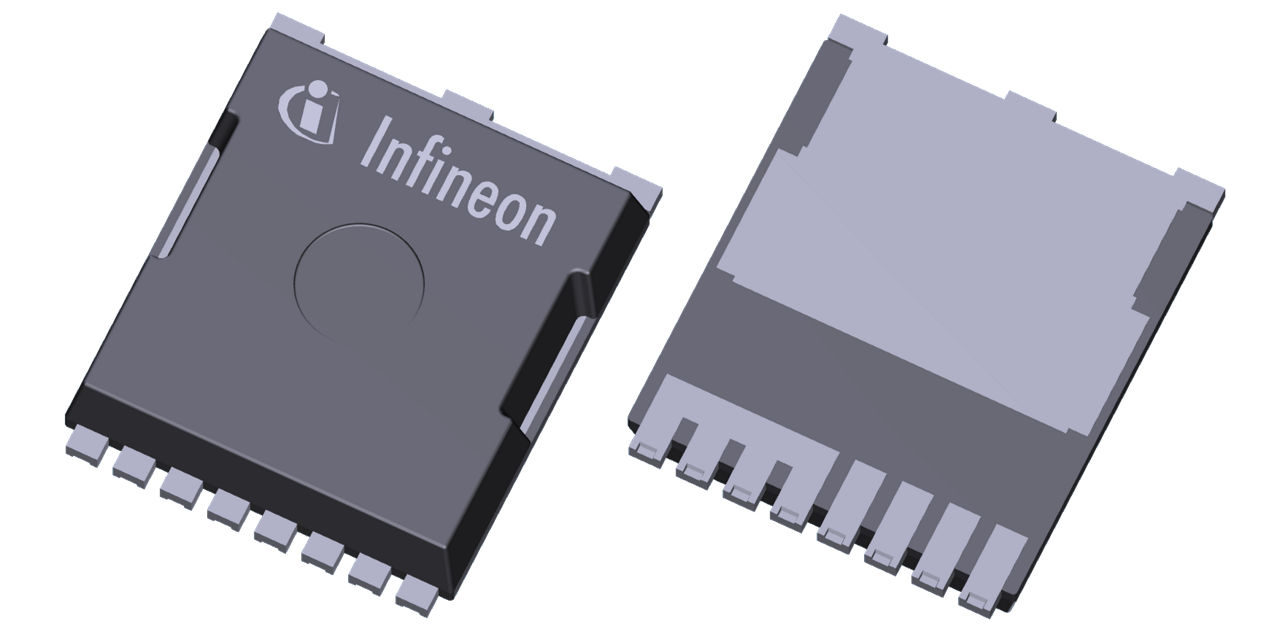

Introducing the new member of the Power PROFET™ + 12V family, the BTS50007-1LUA is a 0.7 mΩ single channel smart high-side power switch, embedded in a 8 pin TO-leadless package, providing protective functions and diagnosis. It features Reverse ON functionality protecting the device in reverse polarity condition (reverse battery). The power transistor is built by a N-channel power MOSFET with charge pump. It is especially designed to drive high current loads up to 55 A, for applications like heaters, glow plugs, fans and pumps in the harsh automotive environment.

Features

  • Low stand-by current
  • Reverse ON for low power dissipation in reverse battery condition
  • Ground loss protection
  • Electrostatic discharge protection (ESD)
  • Optimized electromagnetic compatibility (EMC)
  • Compatible to cranking pulses
  • Integrated diagnostic functions
  • Integrated protection functions (Over-current, over-load, over-temperature, over-power)
  • AEC-Q100 qualification

Benefits

  • PRO-SIL™ ISO 26262-ready for supporting the integrator in evaluation of hardware element acc. to ISO 26262
  • Accurate current sensing
  • Developed to support dependable power supply and distribution

Applications
