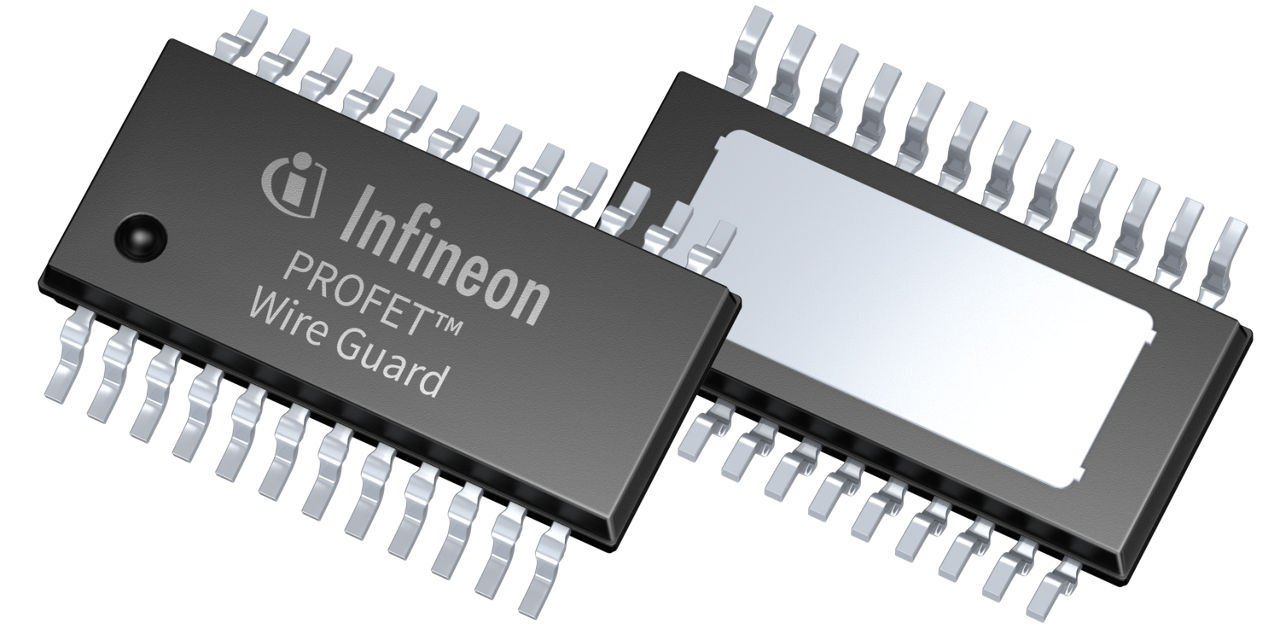

BTG70008A-1ESW

12V | 0.9mΩ | 36.6A | I²t wire protection | Idle mode | 1ch smart HS switch | ISO 26262-compliant | PG-TSDSO-24 | PROFET™ Wire Guard
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTG70008A-1ESW
BTG70008A-1ESW
ea.
Data Sheet

Product details

  • Adjustable overcurrent protection range
    43 A to 240 A
  • Certifications
    ISO 26262-compliant
  • Channels
    1
  • Diagnostics
    SENSE
  • Family
    PROFET™ Wire Guard 12V
  • Halogen-free
    Yes
  • I²t wire protection range range
    24 A to 40.6 A
  • Load Current
    36.5 A
  • Mounting
    SMT
  • Nominal Load Current per channel
    36.5 A
  • Operating Temperature range
    -40 °C to 150 °C
  • Planned to be available until at least
    2038
  • Qualification
    Automotive
  • Recommended Operating Voltage range
    2.75 V to 28 V
Recommended
OPN
BTG70008A1ESWXUMA1
Product Status active and preferred
Infineon Package
PG-TSDSO-24
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TSDSO-24
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The single-channel high-side power switch BTG70008A-1ESW, member of the PROFET™ Wire Guard family, is designed for wire protection in modern automotive E/E architectures. It is equipped with integrated I²t wire protection, and enhanced diagnostic capabilities. Its adjustable overcurrent protection threshold ensures fast failure isolation towards power supplies and the automatic idle mode reduces the current consumption to ~ 50 µA during parking.

Features

  • High-side switch with protection
  • Sequential diagnosis for status readout
  • Selectable integrated I²t protection
  • Operating current < 60 µA during parking
  • IDL pin for microcontroller wake-up
  • Adjustable overcurrent threshold
  • Capacitive load switching mode
  • Reverse ON for reverse polarity
  • Inverse current condition capable

Benefits

  • Precise wire protection
  • Fast failure isolation to power supply
  • Precise application diagnostics
  • Dynamic load control during parking
  • Automatic Idle mode at ~ 50 µA
  • Fast, safe charging of big capacitors
  • pin and footprint compatibility
  • ISO 26262-compliant

Applications
