Please note that this is an end of life product. See newer alternative product version Please note that this is an end of life product. See newer alternative product version
END OF LIFE
discontinued
RoHS Compliant

AUIRF6215S

END OF LIFE
-150 V, P-Ch, 290 mΩ max, Automotive MOSFET, D2PAK, Gen 5
Data Sheet

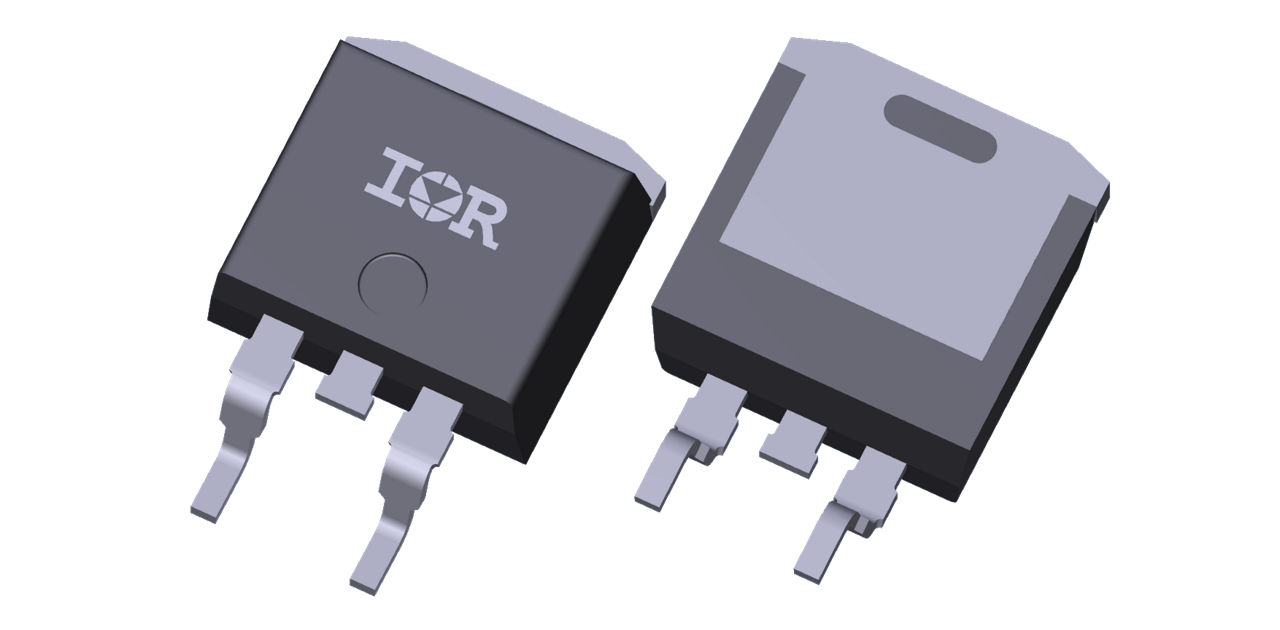

package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

AUIRF6215S
AUIRF6215S
Data Sheet

Product details

  • Budgetary Price €/1k
    1.71
  • ID (@25°C) max
    -13 A
  • Moisture Sensitivity Level
    1
  • Mounting
    SMD
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    D2PAK D2PAK
  • Polarity
    P
  • Ptot max
    110 W
  • Qgd
    23.3 nC
  • QG (typ @10V) max
    44 nC
  • Qualification
    Automotive
  • RDS (on) (@10V) max
    290 mΩ
  • RthJC max
    1.4 K/W
  • Technology
    Gen 5
  • Tj max
    175 °C
  • VDS max
    -150 V
  • VGS(th) max
    -4 V
  • VGS(th) min
    -2 V
  • VGS max
    20 V
OPN
AUIRF6215STRL
Product Status discontinued
Infineon Package
PG-TO263-3
Package Name D2PAK
Packing Size 800
Packing Type TAPE & REEL LEFT
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
PG-TO263-3
Package Name D2PAK
Packing Size 800
Packing Type TAPE & REEL LEFT
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

Features

  • Advanced planar technology
  • Dynamic dV/dT rating
  • 175°C operating temperature
  • Fast switching
  • Fully Avalanche Rated
  • Repetitive avalanche allowed up to Tjmax
  • Lead free, RoHS compliant
  • Automotive qualified
  • PPAP Capable Device
