Please note that this is an end of life product. See newer alternative product version Please note that this is an end of life product. See newer alternative product version
END OF LIFE
discontinued
RoHS Compliant

AUIPS7111S

END OF LIFE
Automotive Q100 Intelligent Power Switch 1 Channel High Side Driver in a D2-Pak 5-Lead Package
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

AUIPS7111S
AUIPS7111S
Data Sheet

Product details

  • Channels
    1
  • Classification
    n.a
  • Diagnostics
    Sense
  • Family
    Classic PROFET™ 24V
  • IL (Short Circuit Current)
    45 A
  • Mounting
    SMD
  • Operating Temperature
    -40 °C to 150 °C
  • Currently planned availability until at least
    n.a
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 25°C)
    6 mΩ
  • RDS (on) (@ Tj = 150°C) max
    15 mΩ
  • Recommended Operating Voltage
    8 V to 50 V
  • toff (Turn OFF time) max
    155 µs
  • ton (Turn ON time) max
    75 µs
  • Undervoltage Recovery Delay
    n.a
OPN
AUIPS7111STRL
Product Status discontinued
Infineon Package PG-TO263-5
Package Name N/A
Packing Size 800
Packing Type TAPE & REEL LEFT
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package PG-TO263-5
Package Name -
Packing Size 800
Packing Type TAPE & REEL LEFT
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

Benefits

  • Suitable for 24V systems
  • Over current shutdown
  • Over temperature shutdown
  • Current sensing
  • Active clamp
  • Low current
  • Reverse battery
  • ESD protection
  • Optimized Turn On/Off for EMI

Applications

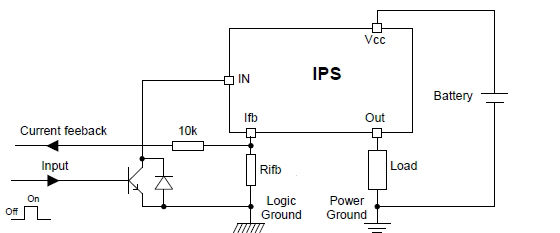

Diagrams

tc-auips7111s
tc-auips7111s
tc-auips7111s tc-auips7111s tc-auips7111s
×
