Active and preferred
RoHS Compliant
Lead-free

6ED2230S12C

1200 V, 0.65 A three phase gate driver IC bare die with integrated bootstrap diode and over current protection
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

6ED2230S12C
6ED2230S12C
Data Sheet

Product details

  • Channels
    6
  • Configuration
    Three Phase
  • Input Vcc
    10 V to 20 V
  • Isolation Type
    Functional levelshift SOI (Silicon On Insulator)
  • Output Current (Source)
    0.35 A
  • Output Current (Sink)
    0.65 A
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    650 ns
  • Turn On Propagation Delay
    700 ns
  • VBS UVLO (On)
    10.4 V
  • VBS UVLO (Off)
    9.4 V
  • VCC UVLO (Off)
    10.4 V
  • VCC UVLO (On)
    11.4 V
  • Voltage Class
    1200 V
Recommended
OPN
6ED2230S12CX7SA1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type HORIZONTAL FRAME SHIPPER
Moisture Level N/A
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type HORIZONTAL FRAME SHIPPER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

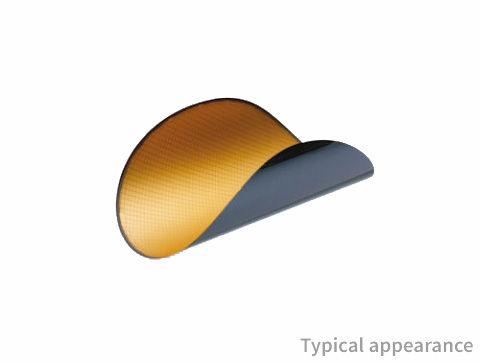

EiceDRIVER™ 1200 V three-phase gate driver with 0.35 A source and 0.65 A sink currents is offered in Wafer-on-Film. Utilizing our 1200 V SOI technology, 6ED2230S12C provides unique advantages including low-ohmic integrated bootstrap-diode (BSD) and best-in-class robustness to protect against negative transient voltage spikes. It is for designs up to about 6 kW. Contact our sales offices for sample wafer purchase.

Features

  • 1200-V Thin-Film-SOI technology
  • Integrated Ultra-fast Bootstrap Diode
  • Tolerant to -Vs 100V transient spike
  • Source/sink current 0.35 A/0.65 A
  • Over current protection (+/- 5%)
  • Integrated dead-time protection
  • Shoot-through protection
  • Independent UVLO for VCC and VBS
  • Fault and Enable on the same pin
  • Channels propagation delay matched
  • 3.3 V, 5 V, 15 V input logic

Benefits

  • Integrated BS diode for cost savings
  • 100 V -VS for increased reliability
  • 50% less on level shift power loss
  • Integrated protection for cost saving
  • UVLO protection at low supply voltage
