2EDL8023G

EiceDRIVER™ - dual-channel junction-isolated gate driver - 2EDL8023G
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

2EDL8023G
2EDL8023G
ea.
Data Sheet

Product details

  • Channels
    2
  • Configuration
    High-side and low-side
  • Input Vcc
    8 V to 20 V
  • Isolation Type
    Functional levelshift
  • Output Current (Source)
    3 A
  • Output Current (Sink)
    6 A
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    45 ns
  • Turn On Propagation Delay
    45 ns
  • VCC UVLO (On)
    7 V
  • Voltage Class
    120 V
OPN
2EDL8023GXUMA1
Product Status not for new design
Infineon Package
PG-VDSON-8
Package Name N/A
Packing Size 6000
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package
PG-VDSON-8
Package Name -
Packing Size 6000
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

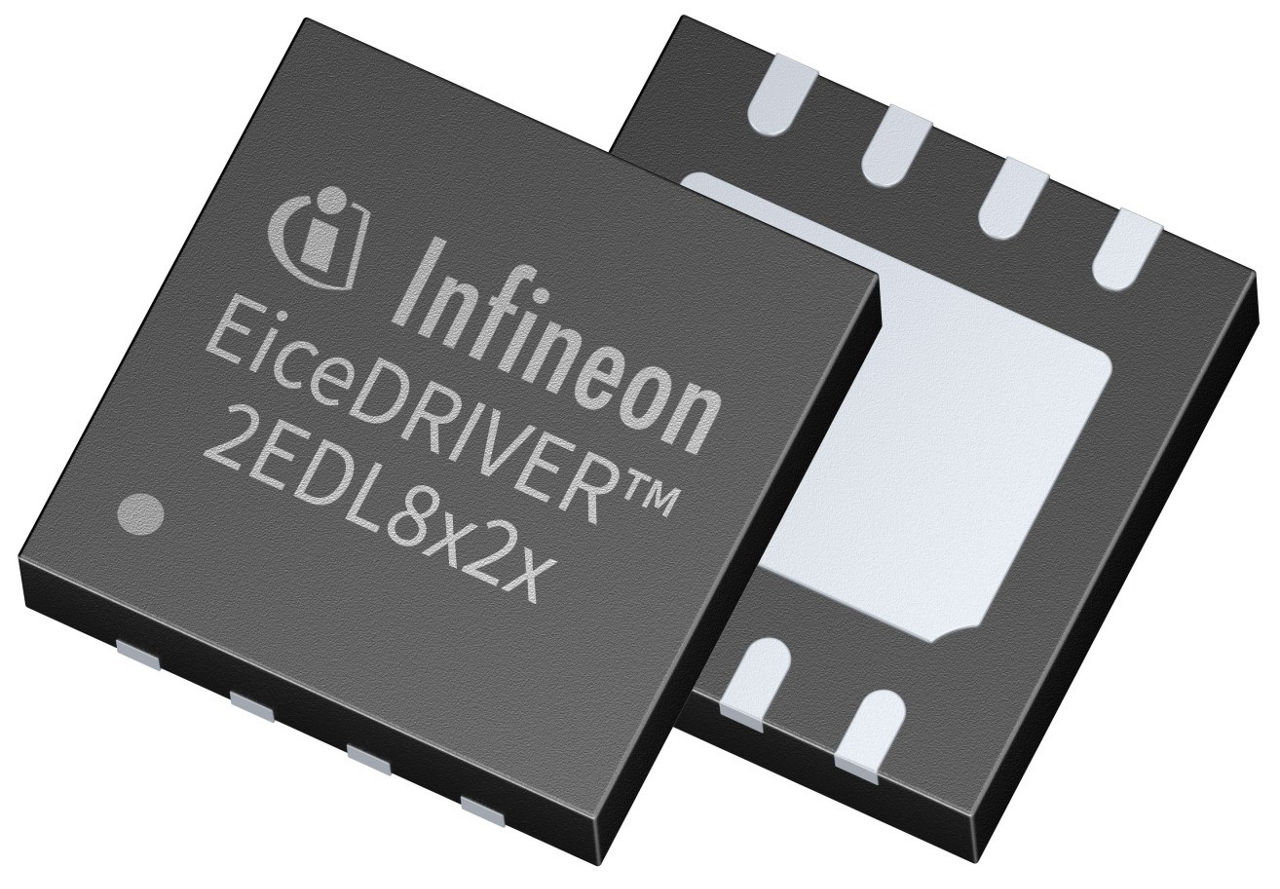

The EiceDRIVER™ 2EDL8023G dual-channel junction-isolated gate driver IC is designed for medium-voltage power MOSFETs in half-bridge applications such as telecom and datacom DC-DC converters. This industry-leading 3 A version is recommended to reduce MOSFET switching losses. The 2EDL8023G permits operation of both channels independently. For this reason, it is the perfect choice for diagonally driven full-bridges on the primary side as well as for the synchronous rectification stage on the secondary side because it permits reduction of losses during the free-wheeling phase. All gate driver ICs of the EiceDRIVER™ 2EDL8 family come in an industry-standard leadless package and pin-out. All of them have an integrated 120 V boot-strap diode as well as a precise channel-to-channel propagation delay matching of +/- 2 ns.

Features

  • No need for external boot strap diode
  • Fast MOSFET switching
  • Strong pull-down current reduces risk of
  • return-on from switching noise
  • Low dead-time losses
  • Inherent shoot-through protection
  • -8 V/+15 V common mode rejection

Benefits

  • High power density
  • High efficiency
  • Strong MOSFET Reliability
  • High efficiency
  • Strong MOSFET reliability
  • Robust operation
