2ED020I06-FI

650 V half-bridge gate driver IC with galvanic isolation, shutdown
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

2ED020I06-FI
2ED020I06-FI
Data Sheet

Product details

  • Channels
    2
  • Configuration
    Half Bridge
  • Input Vcc
    14 V to 18 V
  • Isolation Type
    Galvanic isolation - Functional
  • Output Current (Sink)
    2.5 A
  • Output Current (Source)
    1.5 A
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    85 ns
  • Turn On Propagation Delay
    85 ns
  • VBS UVLO (Off)
    11.2 V
  • VBS UVLO (On)
    12.2 V
  • VCC UVLO (Off)
    11 V
  • VCC UVLO (On)
    12 V
  • Voltage Class
    650 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
EiceDRIVER™ Enhanced - High voltage, high speed power MOSFET and IGBT half-bridge driver IC with coreless transformer technology and interlocking high and low side referenced outputs.

Features

  • 650 V Coreless Transformer Driver
  • Rail-to-rail outputs
  • Protection function
  • Floating high side driver
  • Undervol. lockout for both channels
  • 3.3 V and 5 V TTL compatible inputs

Applications

Diagrams

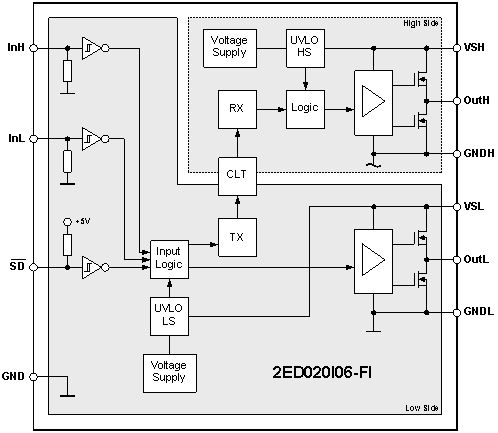

Circuit_diagram_2ED020I06-FI
