SiC-JFET in half-bridge configuration - parasitic turn-on at current commutation

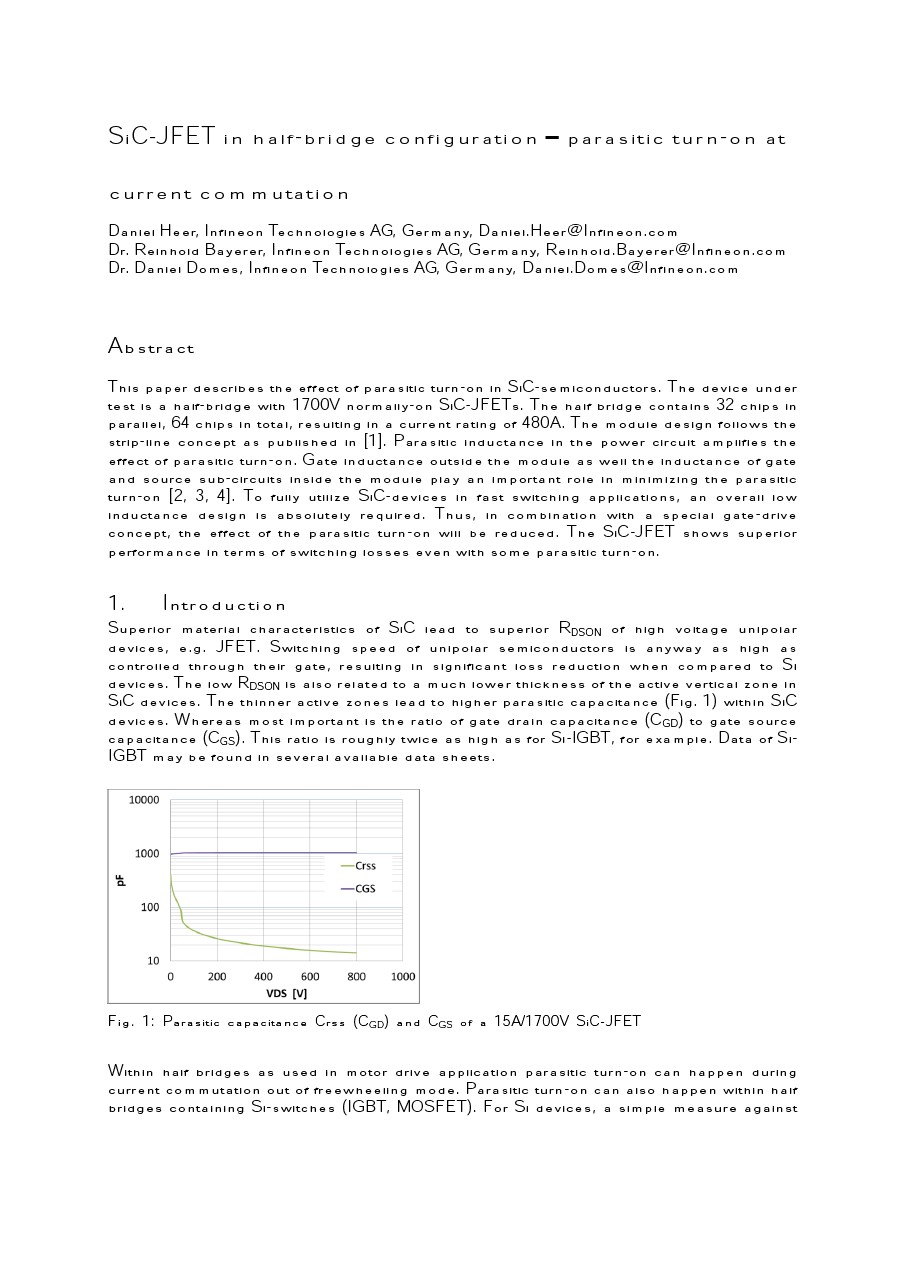

This paper describes the effect of parasitic turn-on in SiC-semiconductors. The device under test is a half-bridge with 1700 V normally-on SiC-JFETs. The half bridge contains 32 chips in parallel, 64 chips in total, resulting in a current rating of 480 A. The module design follows the strip-line concept as published in. Parasitic inductance in the power circuit amplifies the effect of parasitic turn-on. Gate inductance outside the module as well the inductance of gate and source sub-circuits inside the module play an important role in minimizing the parasitic turn-on. To fully utilize SiC-devices in fast switching applications, an overall low inductance design is absolutely required. Thus, in combination with a special gate-drive concept, the effect of the parasitic turn-on will be reduced. The SiC-JFET shows superior performance in terms of switching losses even with some parasitic turn-on.
