VD_REF_XDP_48V_TO_POL

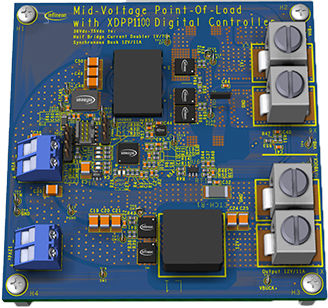

Reference design board 200 W dual output 48V-to-PoL single step converter with XDP™ digital power controller
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

VD_REF_XDP_48V_TO_POL
VD_REF_XDP_48V_TO_POL
Application Notes

Product details

  • Board Type
    Virtual Design
  • Dimensions
    90mm× 90mm× 20mm
  • Family
    Gate Driver, Digital power controller, OptiMOS™ 5
  • Frequency
    332 kHz to 332 kHz
  • Input Type
    DC
  • Output Current
    0 A to 11 A
  • Output Voltage
    12 V to 12 V
  • Pout
    132 W
  • Product Name
    VD_REF_XDP_48V_TO_POL
  • Qualification
    Standard
  • Supply Voltage
    36 V to 72 V
  • Target Application
    Power Supplies, Telecom
  • Topology
    Single Phase, non-Isolated, Current Doubler, Half Bridge
Recommended
OPN
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The 200 W 48 V dual digital Point-of-Load is a telecom power solution with non-isolated SMPS and single-stage 48 V-to-PoL setup, ensuring up to 97% efficiency and ±0.5% voltage accuracy. Infineon’s OptiMOS™ 5 power transistors and XDPP1100 XDP™ digital power controller achieve high efficiency and power density.

Features

  • Voltage accuracy up to ±0.5 % over full temperature range -40 °C to 125 °C
  • Fully programmable digital control based on 32-bit, ARM® Cortex™-M0
  • Magnificent feed-forward and load regulation with Infineon patented fast transient response control
  • System configuration, monitor and control with PMBus and GUI Support
  • Temperature compensation

Benefits

  • Optimized power stage compactness by FET’s integrated drivers
  • Increase power density and overall reliability
  • Accurate V/I/Temp telemetry with advanced fault protection
  • Innovative system control with fast response
  • Configurable external LED support and FAN control

Applications
