UIO STICK V2

uIO-Stick v2 is an interface device for controlling Infineon boards/kits during run time
User Manual
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

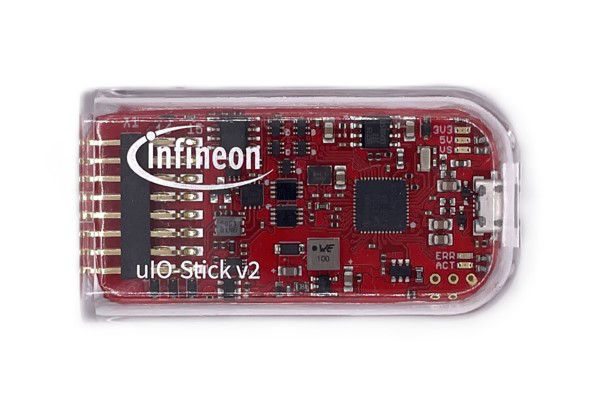

UIO STICK V2
UIO STICK V2
User Manual

Product details

  • Board Type
    Evaluation Board
  • Family
    MOTIX™ MCU | 32-bit motor control SoC
  • Input Type
    DC
  • Interfaces
    CAN
  • Output Voltage
    3.3 V to 12 V
  • Qualification
    Automotive
  • Sub Application
    Establish communication between Infineon device and PC
Recommended
OPN
UIOSTICKV2TOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The uIO-Stick v2 plugs into the evaluation board via a standard 16-pin connector and allows easy interface to the microcontroller. It provides an exclusive function: Infineon MOTIX™ MCU | 32-bit motor control SoC family BSL Support: The Infineon MOTIX™ MCU (SoC) devices provide a built-in boot strap loader (BSL), for programming the MOTIX™ MCU (SoC) devices over the built-in CAN transceiver or UART. The uIO-Stick v2 acts as an interface between the MOTIXTM MCU device and a PC. It handles the BSL protocols as well as the physical layers. A PC application provides access to all BSL functions of the MOTIX™ MCU (SoC) device. Supported Devices: TLE988x and TLE989x

Features

  • Communication with the device via CAN
  • USB HID device (no additional driver)
  • 3 on-board status LEDs
  • BSL communication with TLE988x/9x

Benefits

  • Easy interface to the microcontroller

Applications
