TLS4120 3.3VBOARD L

User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLS4120 3.3VBOARD L
TLS4120 3.3VBOARD L
User Manual

Product details

  • Board Type
    Demo Board
  • Family
    OPTIREG™ Switcher
  • Input Type
    DC
  • Output Voltage
    3.3 V
  • Qualification
    Automotive
  • Sub Application
    Infotainment, Car-Media, Telematics, Camera, Radar, Gateway, BCM, ADAS, Power supply for any automotive ECU
  • Supply Voltage
    13.5 V
  • Target Application
    Automotive
  • Topology
    DC-DC converter
OPN
TLS412033VBOARDLTOBO1
Product Status on request
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status on request
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

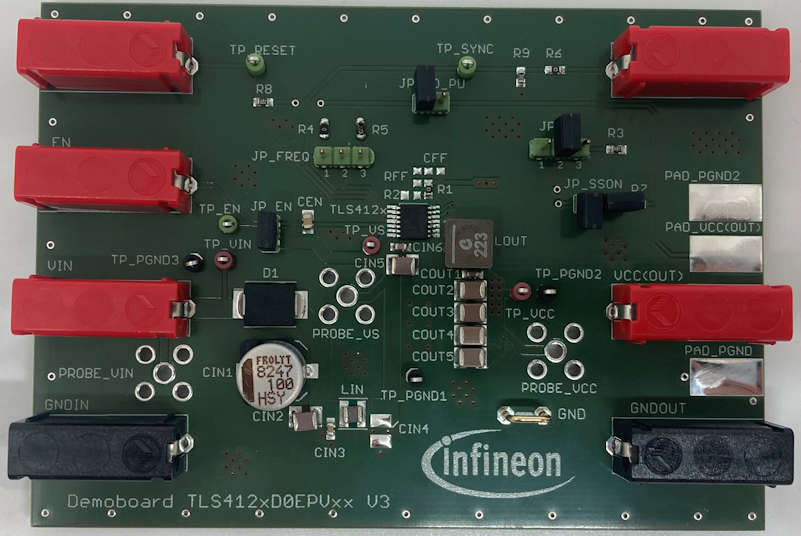

The demoboard allows evaluation of the TLS4120D0EP V33, a synchronous step-down DC/DC converter for automotive applications. It offers 2A current capability, fixed 3.3V output voltage, and wide input voltage range (3.7V - 35V). Integrated power stages, soft start, and reduce external components, lowering system costs and board space. TLS4120 3.3VBOARD L supports TLS4120D0EP V33 with selectable switching frequencies (0.44MHz, 0.32MHz, 2.2MHz).
