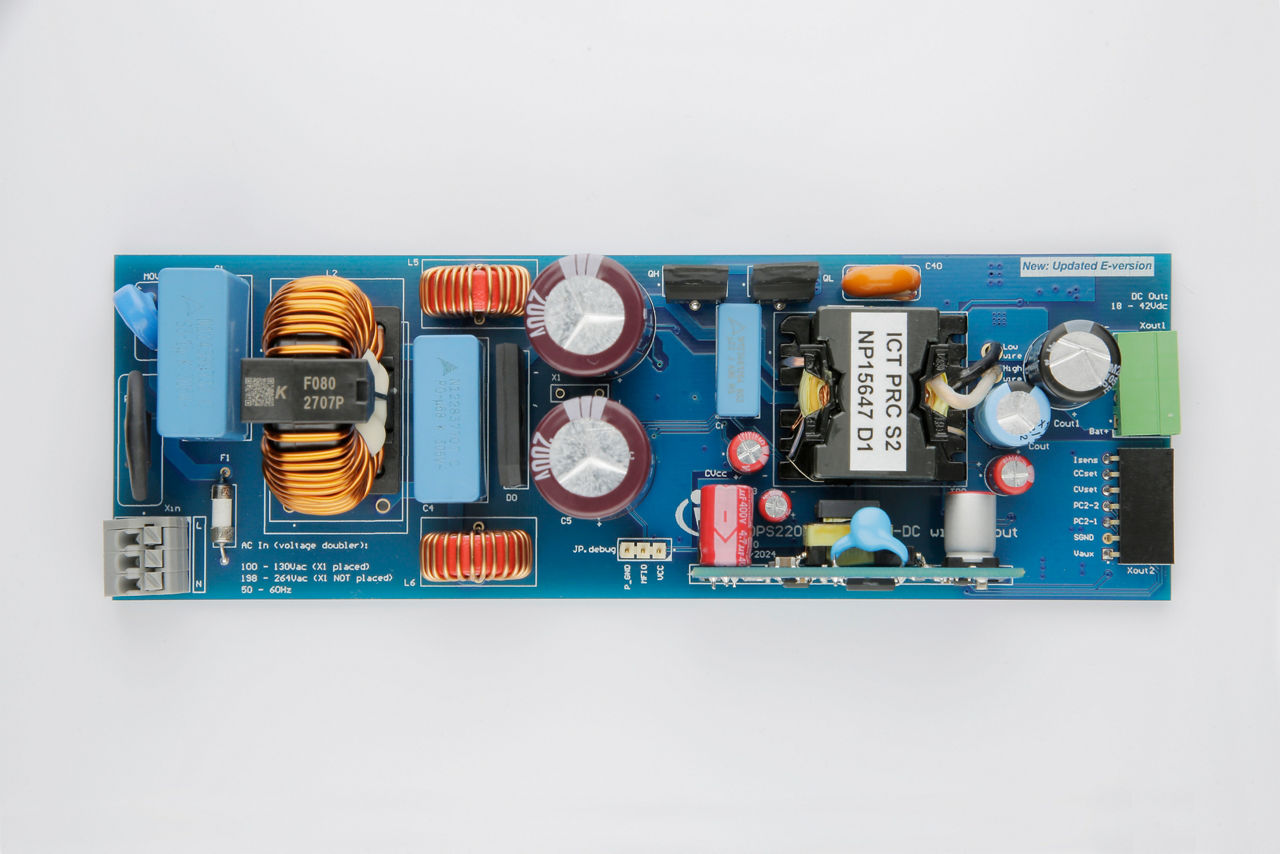

REF_XDPS2201E_170W_BPA

This reference design with XPDS2201E HFB controller with expanded feature set enables wide input designs for eBike and Power Tool chargers.
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_XDPS2201E_170W_BPA
REF_XDPS2201E_170W_BPA
Application Notes

Product details

  • Board Type
    Reference Board
  • Dimensions
    170 x 55 x 38mm
  • Family
    Power Controller (PWM, PFC)
  • Frequency
    180 kHz to 200 kHz
  • Input Type
    AC
  • Interfaces
    Control interface DC, Output connector DC, Input Connector AC
  • Mounting
    PCBA, SMD and THT
  • Output Current
    0.1 A to 4 A
  • Output Voltage
    18 V to 42 V
  • Pout
    1 W to 170 W
  • Qualification
    Consumer
  • Sub Application
    Commercial
  • Supply Voltage
    198 V to 264 V, 100 V to 130 V
  • Topology
    Hybrid flyback
Recommended
OPN
REFXDPS2201E170WBPATOBO1
Product Status active and preferred
Infineon Package -
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package -
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The converter has high peak efficiency of 95% and two control inputs that define the setpoints for the constant current (CC) and constant voltage (CV) regulation loops. Therefore, it is ideal for use in battery charging applications in combination with a safety switch and charging controller. A voltage doubler ensures configurable wide input range to cover different residential voltages across the world.

Features

  • Hybrid flyback topology for battery charger
  • Wide output voltage range, 18 - 42 V
  • 170 W output power
  • Optional auxiliary supply possible
  • Control interface for CC & CV adjustment

Benefits

  • High efficiency up to 95% at full load
  • Cost-optimized with input voltage doubler
  • Simplified design with tools and guide
