REF-XDPL8210-U35W

35W reference board for LED driver with isolated 0 to 10V dimming and dim-to-off operation
Getting Started
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF-XDPL8210-U35W
REF-XDPL8210-U35W
ea.
Getting Started

Product details

  • Board Type
    Reference Board
  • Dimensions
    98mmx63mm
  • Family
    LED Driver
  • Output Current max
    830 mA
  • Output Voltage
    18 V to 54 V
  • Pout max
    35 W
  • Product Name
    REF-XDPL8210-U35W
  • Qualification
    Industrial
  • Sub Application
    LED Driver
  • Target Application
    LED Lighting, Lighting
  • Topology
    Flyback
Recommended
OPN
REFXDPL8210U35WTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

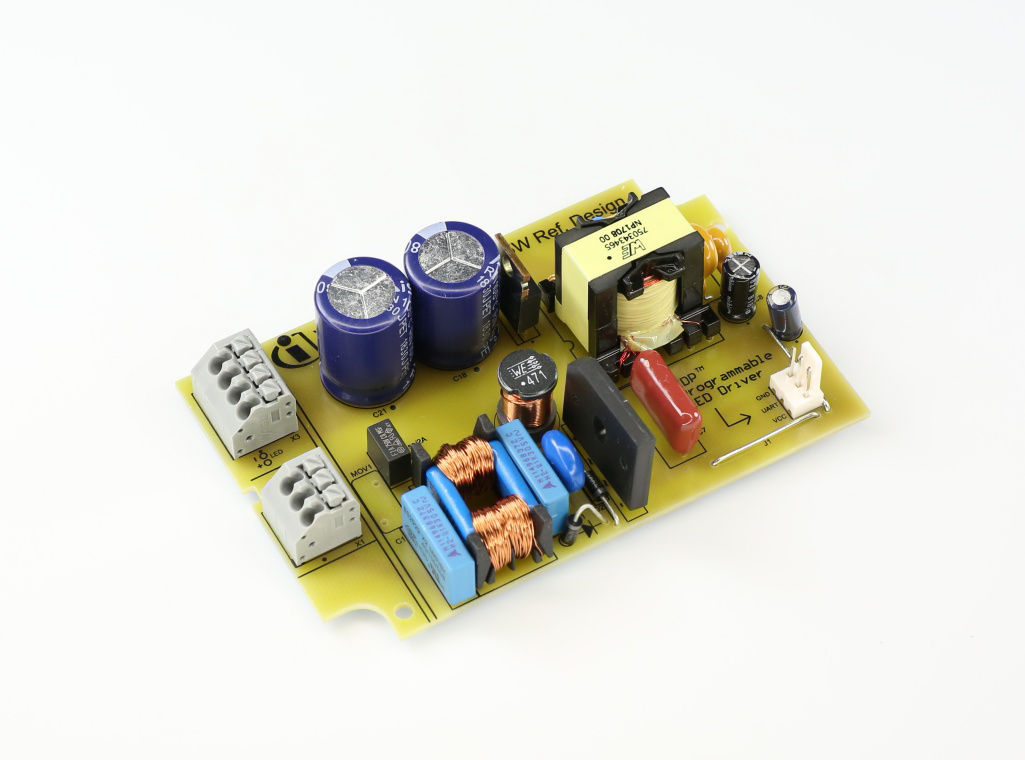

The REF-XDPL8210-U35W features the XDPL8210 digital power controller IC for LED drivers, providing excellent power quality over a wide load range. It supports a wide input range of 90VAC - 305VAC, a maximum power of 35W, and output current of up to 830mA with protections for all failure modes. It also offers analog dimming input, configurable output current and power, and ensures low stand-by power and high power factor.

Features

  • Small form factor: 98mm x 63mm
  • Excellent power factor and THD over wide load range
  • Connector for XDP™ interface board for parameter configuration
  • 0-10V dimming down to 1% of nominal output

Benefits

  • Access to most features of XDPL8210
  • Reference for single stage constant current boards
  • 0-10V dimming
  • Prototype for demonstrations
  • Operating parameter can be digitally tuned to meet application requirements
  • Extraordinary line and load regulation (deviation <2%)
  • Configurable protections and operating parameters
  • High efficiency

Applications
