REF_BGT60LTR11AIP_AUT

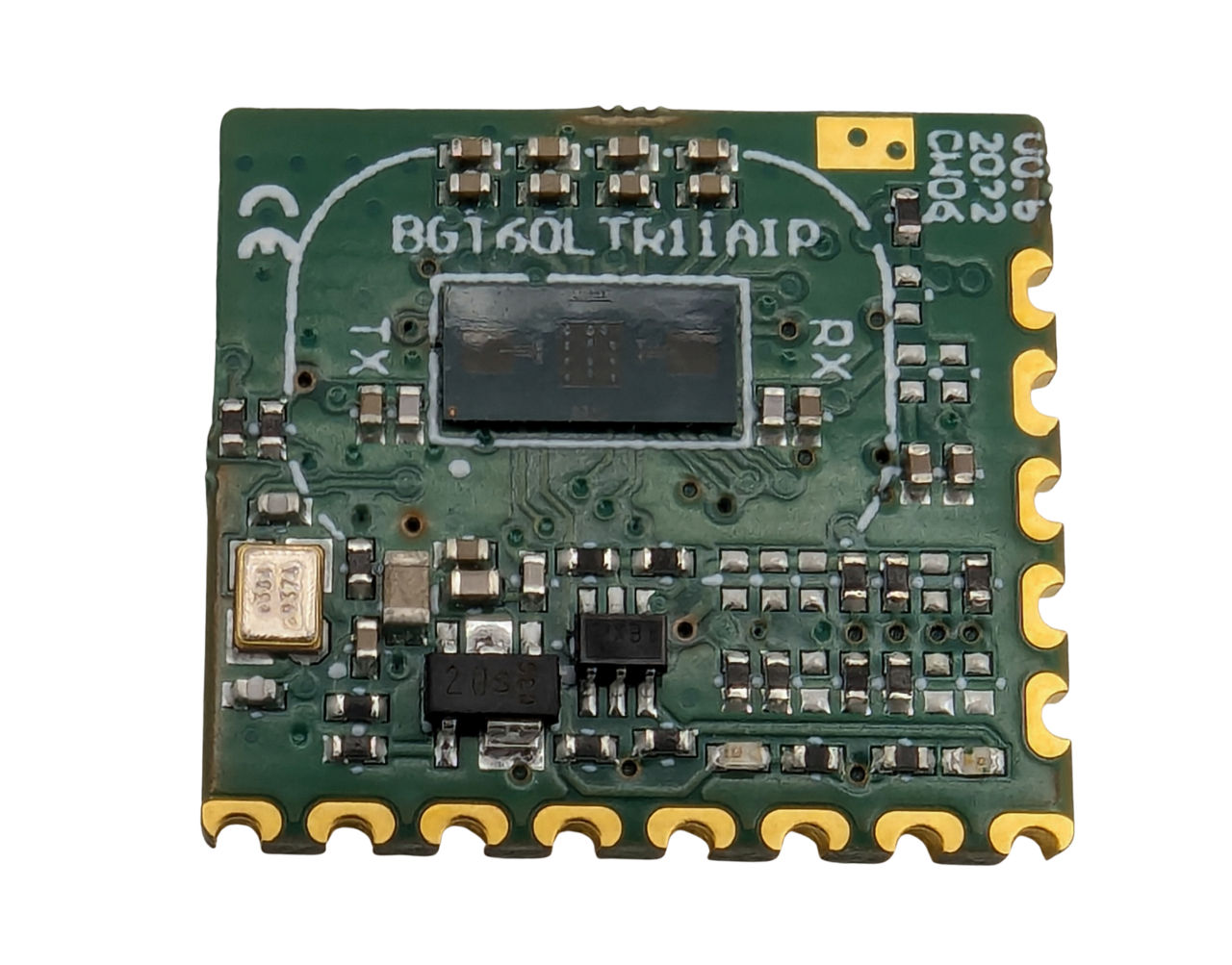

Reference board with XENSIV™ BGT60LTR11AIP 60 GHz radar sensor in completely autonomous mode

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_BGT60LTR11AIP_AUT
REF_BGT60LTR11AIP_AUT

Product details

  • Antenna
    Antennas in package
  • Board Type
    Reference Board
  • Direction of Motion
    Yes
  • Family
    XENSIV™ 60GHz Radar Sensors
  • Frequency
    61 GHz to 61.5 GHz
  • Halogen-free
    yes
  • Input Type
    DC
  • Max Detection Range
    7 m
  • Min Detection Range
    0.5 m
  • Motion
    yes
  • Number of Rx Antennas max
    1
  • Number of Tx Antennas max
    1
  • Product Name
    BGT60LTR11AIP
  • Qualification
    Industrial (JEDEC20/22)
  • Speed [m/s]
    yes
Recommended
OPN
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

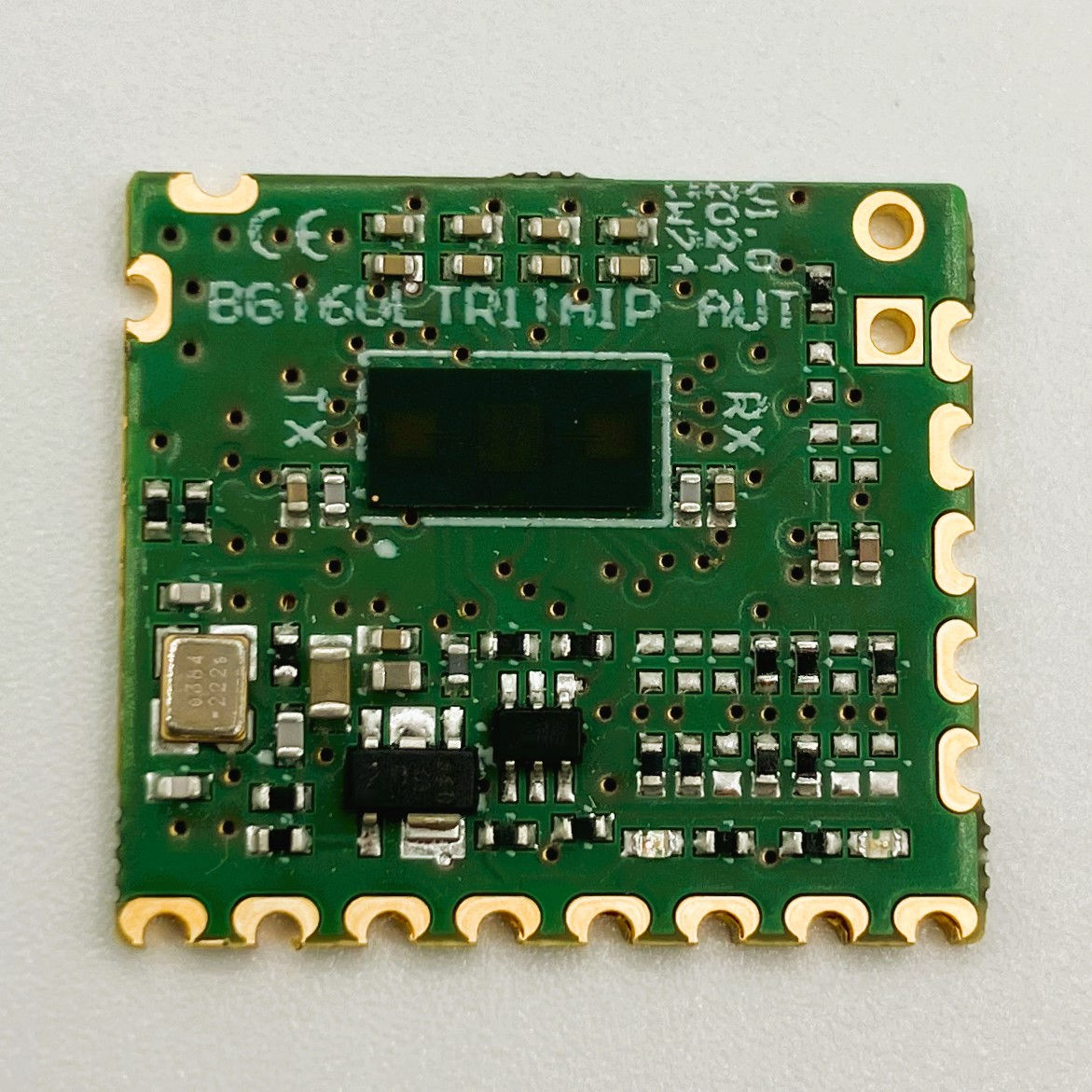

This reference board features the XENSIV™ BGT60LTR11AIP radar sensor, configured in autonomous mode. It enables low-power radar-based applications, offering a cost-effective alternative to conventional PIR sensors in low-power or battery-powered applications, operating as a Doppler motion sensor in the 60 GHz ISM band. This board enables the operation of the device without any microcontroller, or as a plug-and-play radar sensor to detect motion and direction of motion using only two GPIO pins. The board is fully certified, meeting the regulatory requirements of CE and FCC standards.

Features

  • 31.1 mm x 27.4 mm size
  • 1Tx 1Rx Antennas in Package (AIP)
  • 80° Half Power Beam Width (HPBW)
  • Radar MMIC configured in Autonmous mode
  • 2 LEDs indicating the detectors' outputs
  • FCC certification collateral

Benefits

  • Up to 7 m detection range for humans
  • Low power consumption
  • Requires minimal external circuitry

Applications
