REF_36W_SLFOC_XMC13_CF

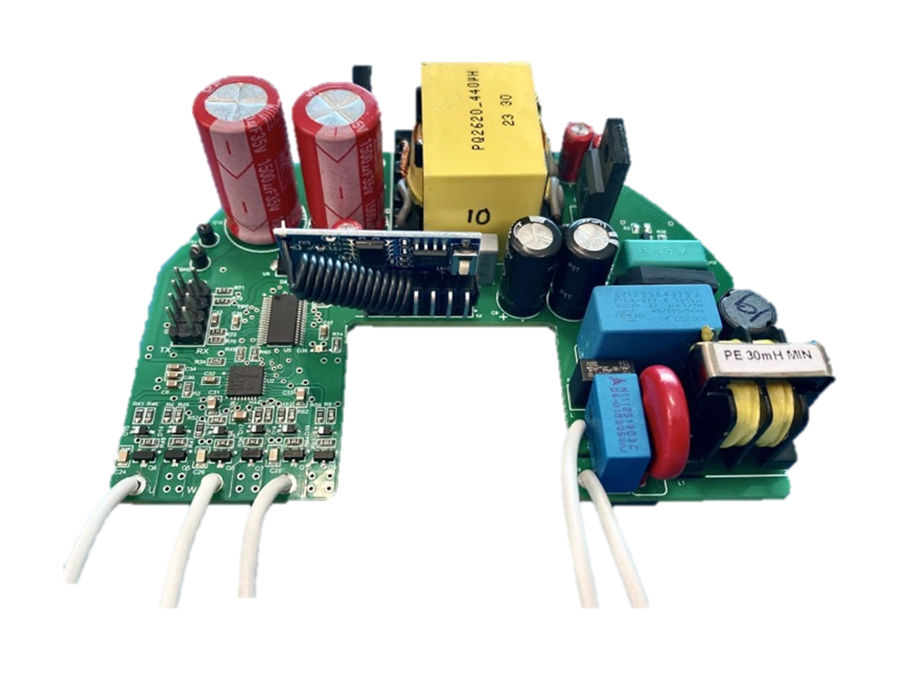

36 W Low voltage ceiling fan solution. Powered by integrated controller at AC DC PFC flyback stage for constant voltage output.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_36W_SLFOC_XMC13_CF
REF_36W_SLFOC_XMC13_CF

Product details

  • Board Type
    Reference Board
  • Description
    Infineon’s 36 W BLDC ceiling fan solution is powered by ICL8810 integrated controller (IC) at the ACDC PFC flyback stage for constant voltage output along with IPA80R750P7 MOSFET. XMC1302 microcontroller from the XMC series is used for brushless direct current (BLDC) sensorless field-oriented control (FOC) motor drive. It also includes the 160 V 6ED2742S01Q 6-channel gate driver and IRLML0040TRPBF (SOT23) as motor inverter MOSFET; which provide a cost-effective, high-performance and flexible system.
  • Dimensions
    69.9(L) X 96.99(W) X 23(H) mm
  • Family
    Gate Driver
  • Frequency
    16 kHz to 16 kHz
  • Input Type
    AC
  • Interfaces
    - RF Module and controller - IR module and controller
  • Output Current
    0 A to 4.15 A
  • Pout
    3.42 W to 31.5 W
  • Qualification
    Consumer
  • Sub Application
    Motor Control & Drives
  • Target Application
    Low Voltage Ceiling Fan
  • Topology
    Flyback
OPN
REF36WSLFOCXMC13CFTOBO1
Product Status on request
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status on request
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The REF_36W_SLFOC_XMC13_CF is the turn-key plug-in low voltage solution with UI configuration, enabling a smoother and faster implementation process. XMC1302 microcontroller used for BLDC sensorless FOC motor drive. It includes the 6-channel gate driver and motor inverter MOSFET.

Features

  • 230 VAC nominal operating input
  • Efficiency at least 85%. Full Load
  • Standby power <0.85 W at input 90~300 VAC
  • Flyback input/output OVP

Benefits

  • Single-shunt sensorless FOC
  • Stall Detection
  • Catch-free running
  • IR/RF remote speed control
  • GUI interface Tuning
  • Motor driver HW/SW OCP, DC-link OVP/UVP
