KIT_LGPWR_BOM005

Kit power board for low voltage drives scalable power demoboard
User Manual
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_LGPWR_BOM005
KIT_LGPWR_BOM005
ea.
User Manual

Product details

  • Board Type
    Demo Board
  • Dimensions
    75mm x 19mm
  • Family
    OptiMOS™ 5
  • Input Type
    DC
  • Output Current max
    273 A
  • Product Name
    KIT_LGPWR_BOM005
  • Qualification
    Industrial
  • Sub Application
    Motor drives and control
  • Supply Voltage
    48 V
  • Target Application
    E-Bikes & Small E-Vehicles
  • Topology
    Half Bridge, B6 Bridge, Full Bridge, Buck, Boost, DC-DC converter
Recommended
OPN
KITLGPWRBOM005TOBO1
Product Status active
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

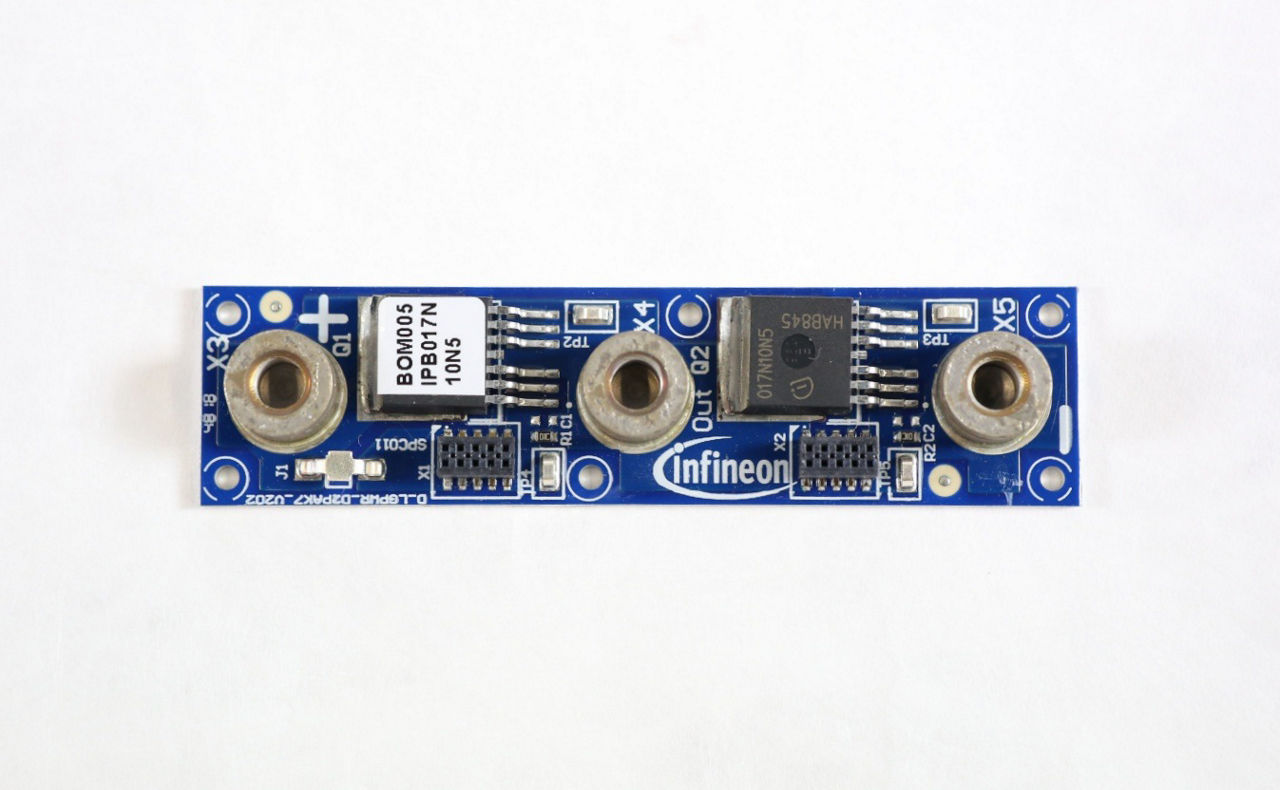

The power board module in this kit uses a 100 V OptiMOS™ MOSFET in a D²PAK-7 package, forming the primary building block for the LVD scalable power demo platform. As a single half-bridge, it facilitates easy construction of any half-bridge power topology. Power boards using Infineon’s OptiMOS™ in D²PAK, D²PAK-7, and TO-Leadless packages showcase diverse power MOSFET performance.

Features

  • IMS PCB for increased cooling
  • SMD power terminals with M5 thread
  • Onboard test point terminals
