KIT_1EDB_AUX_SIC

Isolated gate driver IC with a configurable floating bipolar auxiliary supply for SiC MOSFETs
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_1EDB_AUX_SIC
KIT_1EDB_AUX_SIC
ea.
Application Notes

Product details

  • Family
    Gate Driver
  • Frequency
    2.1 MHz to 2.2 MHz
  • Input Type
    DC
  • Interfaces
    Pads with 1.27mm pitch
  • Iout
    2 mA to 62 mA
  • Mounting
    Direct soldering into an 8-pin/10-pin footprint or plug-in via 1.27mm pitch connector
  • Output Voltage
    17.65 V to 19.35 V
  • Pout
    0.054 W to 1.1 W
  • Qualification
    Industrial
  • Sub Application
    Industrial
  • Supply Voltage
    9.5 V to 10.5 V
  • Target Application
    Server and Telecom switch-mode power supplies (SMPS), EV Off-board chargers, Solar micro inverter, Industrial power supplies (SMPS, Residential UPS)
  • Topology
    Na ;Use-case is to drive SiC with bipolar driving
Recommended
OPN
KIT1EDBAUXSICTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

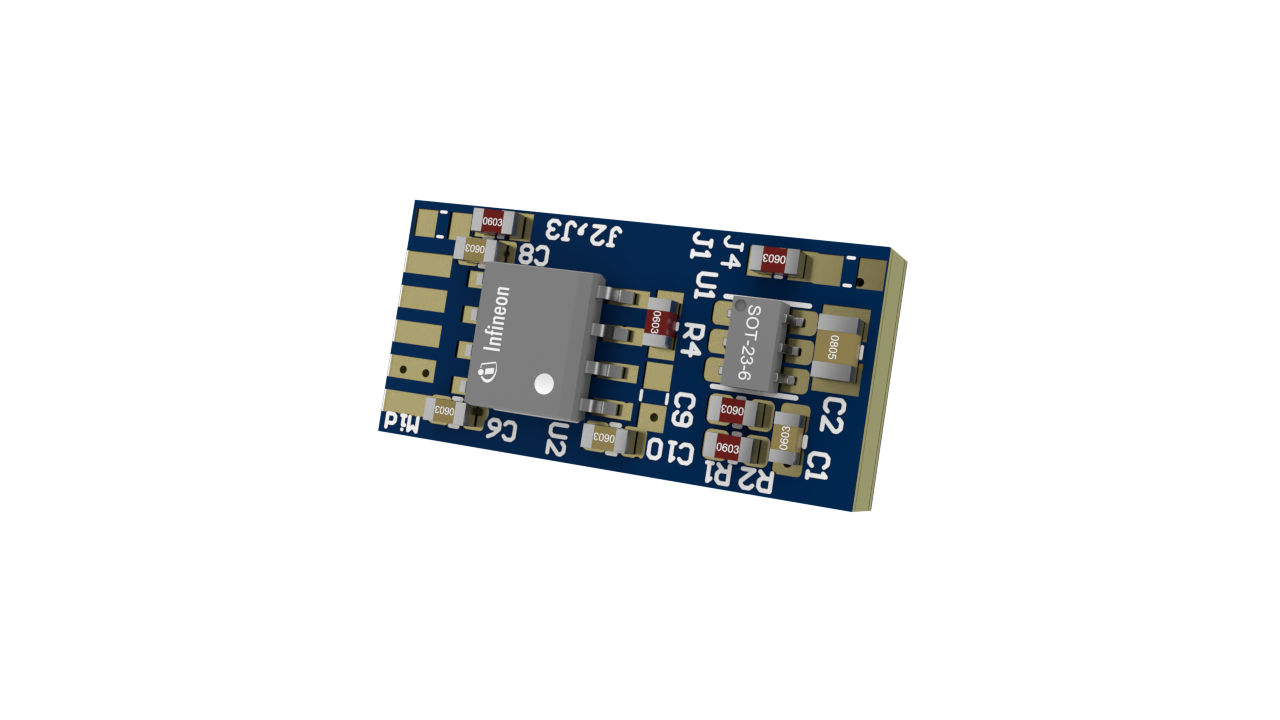

The KIT_1EDB_AUX_SiC is a complete driving solution for SiC MOSFETs , including an isolated gate driver IC and its floating auxiliary supply. The isolated auxiliary supply can support unipolar and bipolar driving. Typical voltage levels for SiC are easily configurable by utilizing few resistors.

Features

  • Up to 1.5 W output power to cover use-cases with different SiC MOSFETs and switching frequencies
  • 1% regulation of the positive VGS for best SiC RDS(ON) accuracy
  • Optimized for bipolar driving levels typical of SiC MOSFETs
  • Isolated driving solution with high CMTI for SiC MOSFETs

Benefits

  • A compatible footprint allows easy plug-in in existing boards, including single-channel isolated gate drivers in 8-pin DSO 150mil
  • Complete compact and cost-optimized driving solution including isolated power supply
  • Bipolar driving is easily configurable using two resistors to define the positive and negative voltage rail

Applications
