EVAL_TLE9180D-31QK

Get familiar with the MOTIX™ TLE9180D-31QK gate driver IC for brushless DC (BLCD) motor control in automotive applications.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_TLE9180D-31QK
EVAL_TLE9180D-31QK

Product details

  • Board Type
    Evaluation Board
  • Family
    Microcontroller, Gate Driver
  • Input Type
    DC
  • Output Voltage
    12 V to 48 V
  • Qualification
    Automotive
  • Supply Voltage
    12 V to 48 V
  • Target Application
    Automotive, Motor Control & Drives
  • Topology
    3-Phase Inverter
Recommended
OPN
EVALTLE9180D31QKTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

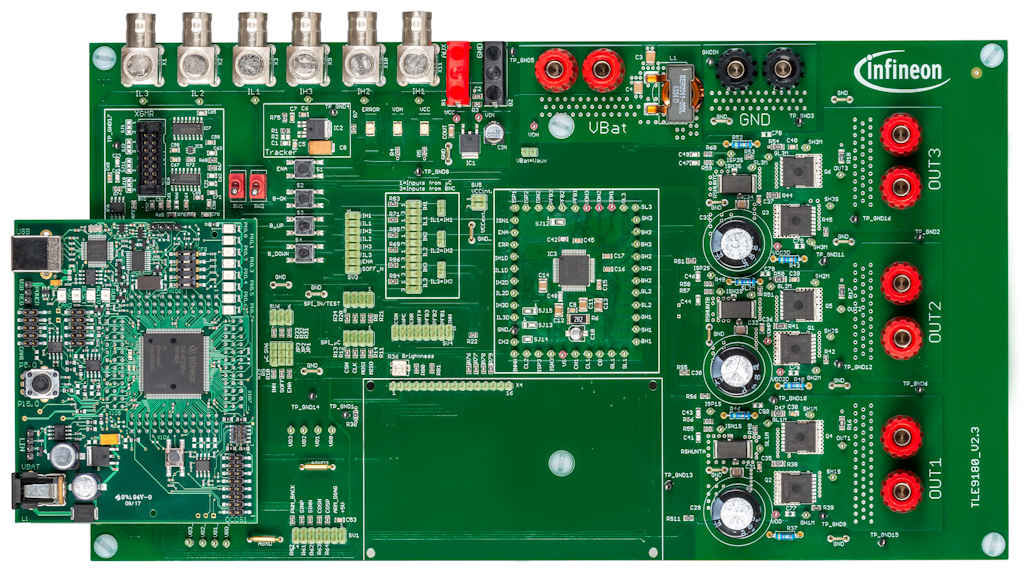

This evaluation board has the purpose to quickly get familiar with the gate driver IC TLE9180D-31QK and evaluate the functions. The board can be operated at an input voltage range from 12 V up to 48 V DC.

Features

  • Board with the 3-phase gate driver IC
  • Pre-flashed microcontroller board
  • USB cable to connect the microcontroller
  • Graphical user interface for register

Benefits

  • High performance BLDC motor control

    • Applications

    Bill of Material

    Documents

    Documents

    Design resources

    Diagrams

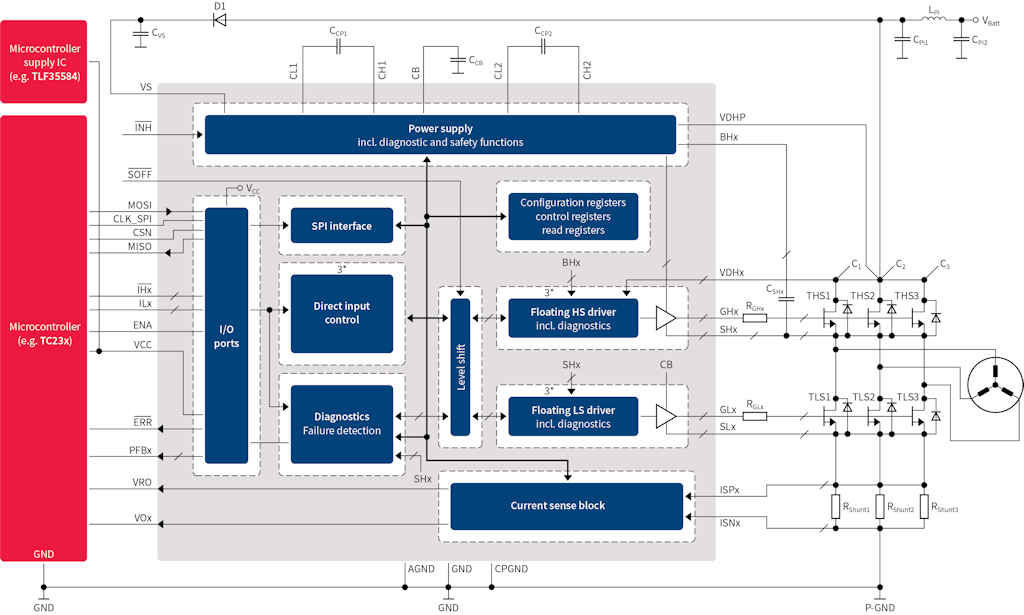

    TLE9180D-Block-diagram
