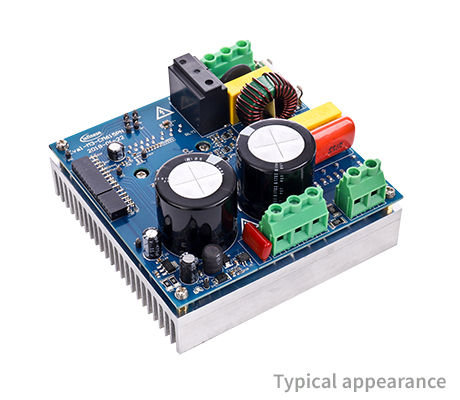

EVAL-M3-CM615PN

iMOTION™ MADK Evaluation board for CIPOS™ Mini Intelligent Power Modules
User Manual
board
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-M3-CM615PN
EVAL-M3-CM615PN
ea.
User Manual

Product details

  • Applications
    Compressors, Industrial Drives
  • Board Type
    Evaluation Board
  • Dimensions
    120x120
  • Family
    iMOTION™ Motor Control ICs, Motor Driver, Intelligent Power Modules (IPM), Microcontroller
  • Input Type
    AC
  • Interfaces
    MADK-M3 30pin interface connector
  • Motor Power max
    650 W
  • Pout max
    650 W
  • Product Name
    EVAL-M3-CM615PN
  • Qualification
    Industrial
  • Sub Application
    Compressors, Industrial Drives
  • Supply Voltage max
    265 V
  • Target Application
    Commercial, construction and agricultural vehicles (CAV), Motor Control & Drives, Consumer, Commercial
  • Topology
    PFC, 3-Phase Inverter
Recommended
OPN
EVALM3CM615PNTOBO2
Product Status active
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The Eval-M3-CM615PN integrates the CIPOS™ Mini IFCM15P60GD, combining a 3-phase inverter stage with a PFC stage based on TRENCHSTOP™ IGBTs. When paired with the iMOTION™ control board EVAL-M3-102T, it forms a potent inverter + PFC system, enabling rapid prototyping of various motor control systems with active PFC.

Features

  • Power stage to drive 3-phase motor
  • Power factor correction
  • 600 V blocking voltage
  • 15 A installed chip current
  • Max. PFC switching frequency 40 kHz
  • 650 W output power (passive cooled)
  • Test pads to attach oscillo. probes
  • Stand. MADK M3 interface connector
