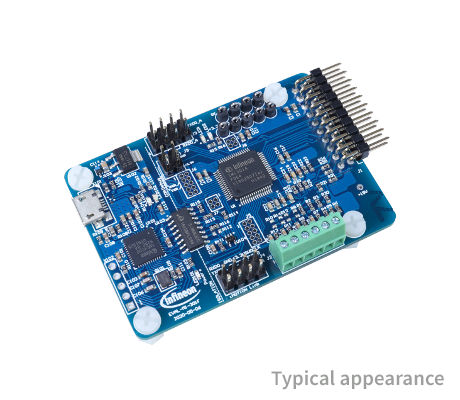

EVAL-M1-301F

Control Board for iMOTION™ Modular Application Design Kit (MADK)
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-M1-301F
EVAL-M1-301F
ea.
User Manual

Product details

  • Applications
    Drives, Fans, Pumps, Refrigerator compressor
  • Board Type
    Evaluation Board
  • Dimensions
    65x45mm
  • Family
    iMOTION™ Motor Control ICs
  • Input Type
    DC
  • Interfaces
    MADK-M1 20pin interface connector
  • Product Name
    EVAL-M1-301F
  • Qualification
    Industrial
  • Sub Application
    Pumps, Fans, Compressors, BLDC motor drives
  • Supply Voltage
    5 V
  • Target Application
    Industrial, Automation, Motor Control & Drives, Consumer
  • Topology
    3-Phase Inverter
Recommended
OPN
EVAL-M1-301FTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The EVAL-M1-301F Control Board, powered by IMC301A-F064 iMOTION™ Motor Control IC, enables sensorless or sensor-based Field Oriented Control without coding. Combined with any iMOTION™ MADK power board, it allows rapid prototyping of inverterized motor control systems like fans, pumps, and compressors. Users can download essential software and tools for system configuration and monitoring from the iMOTION™ Tools & Software webpage.

Features

  • Dual core motor control board
  • Based on IMC301T-F064
  • Single- or leg shunt current sense
  • Sensorless or hall based FOC
  • Additional Arm® Cortex® M0
  • Isolated on-board PC interface

Benefits

  • Run a motor in less than 1 hour!
  • Simple setup and easy tuning
  • iMOTION™ Solution Designer support
  • No coding for motor control
  • Use any M1 interface power board
