EVAL_BDPS_DRIVER

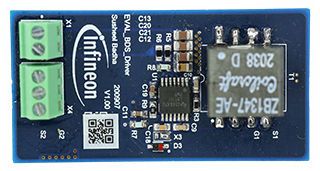

Evaluation board – Bidirectional high and low-side back-to-back MOSFET driver featuring EiceDRIVER™ 2EDF7175F
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_BDPS_DRIVER
EVAL_BDPS_DRIVER
User Manual

Product details

  • Board Type
    Evaluation Board
  • Description
    Kit mother board for low voltage drives scalable power demoboard.
  • Family
    Small signal MOSFETs
  • Input Type
    DC
  • Output Current
    4 A
  • Output Voltage
    10 V
  • Product Name
    EVAL_BDPS_DRIVER
  • Supply Voltage
    50 V
  • Target Application
    Battery formation, Commercial Vehicles, Energy Storage, Power Tools, Relays, Robotics - Automated Guided, EV Charger
  • Topology
    Topology not found
Recommended
OPN
EVALBDPSDRIVERTOBO1
Product Status active and preferred
Infineon Package L-MADK-1
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package L-MADK-1
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The evaluation board, featuring EiceDRIVER™ 2EDF7175F, adopts a modular approach to drive bidirectional MOSFET switch boards (EVAL_BDPS_DD_TOLL/G) for prototyping battery protection systems for packs with nominal voltages up to 48V. It is used in lithium-ion battery applications to implement battery management systems and ensure safe operation by disconnecting the battery under critical conditions.

Features

  • Stackable for MOSFET board parallel
  • Onboard test points

Benefits

  • Ease of use
  • Fast prototyping

Applications
