EVAL-6ED2231S12TM1

Evaluation Board for 1200 V three-phase SOI gate driver and 1200 V EasyPACK™ SiC modules
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-6ED2231S12TM1
EVAL-6ED2231S12TM1
ea.
User Manual

Product details

  • Applications
    Servo, Heat Pumps, Industrial Drives, Compressors
  • Board Type
    Evaluation Board
  • Dimensions
    85x55
  • Family
    CoolSiC™ MOSFET, IGBT Modules, Gate Driver
  • Input Type
    DC, AC
  • Interfaces
    Others
  • Motor Power max
    5000 W
  • Pout max
    5000 W
  • Product Name
    EVAL-6ED2231S12TM1
  • Qualification
    Industrial
  • Sub Application
    Industrial Drives, Compressors
  • Supply Voltage
    200 V to 800 V
  • Target Application
    Motor Control & Drives, Pumps, Fans, Heat Pumps, Commercial Air Conditioning
  • Topology
    3-Phase Motor
Recommended
OPN
EVAL6ED2231S12TM1TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

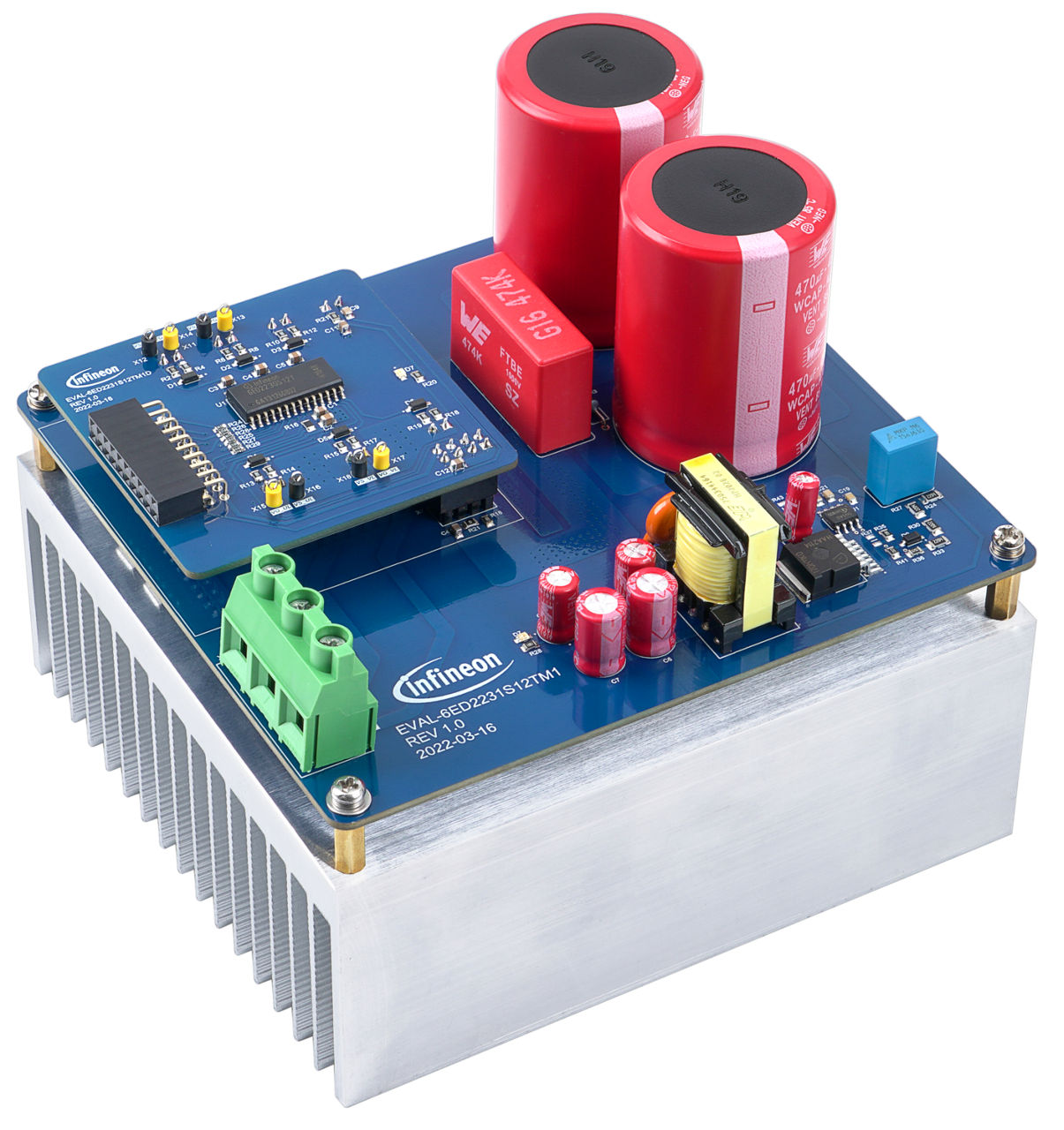

The EVAL-6ED2231S12TM1 power evaluation board demonstrates CoolSiC™ MOSFET module and SOI gate driver technology for motor drives, featuring the 6ED2231S12T 1200V three-phase gate driver, one EasyPACK™ 1B CoolSiC™ MOSFET 1200V module, a three-phase silicon-on-insulator (SOI) gate driver IC, and the M1 connector for compatibility with control boards such as EVAL-M1-101T.

Features

  • 1200 V SOI Technology
  • Best-in-class minus VS performance
  • Withstands Negative 100 V
  • Integrated ultra fast diode
  • Output cur.: IO+ 350 mA, IO- 650 mA
  • Overcurrent protection
  • Integrated 360 ns dead-time
  • Independent undervoltage lockout
  • 3.3 V, 5 V, 15 V input logic compa.
  • Fault reporting
  • 2.5 kV HBM ESD ; 25 V Vcc capable
  • DSO-24: SOIC-28 (4 pins removed)
