Active and preferred

EVAL-2EDL23I06PJ

Evaluation Board for 600V Half Bridge Gate Driver IC
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-2EDL23I06PJ
EVAL-2EDL23I06PJ
ea.
Application Notes

Product details

  • Applications
    Air conditioners, Drives, Fans, Pumps
  • Board Type
    Evaluation Board
  • Dimensions
    85x55
  • Family
    Gate Driver, IGBT Discrete
  • Frequency
    0 kHz to 20 kHz
  • Input Type
    DC
  • Interfaces
    Others
  • Mounting
    Through Hole
  • Output Current
    0 A to 20 A
  • Output Voltage
    100 V to 400 V
  • Pout
    0 W to 8000 W
  • Product Name
    EVAL-2EDL23I06PJ
  • Qualification
    Industrial
  • Sub Application
    Fans, Power Management, Pumps, Drives, Air conditioners
  • Supply Voltage
    13 V to 17.5 V
  • Target Application
    Power Supplies, Motor Control & Drives
  • Topology
    Half Bridge
Recommended
OPN
EVAL2EDL23I06PJTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

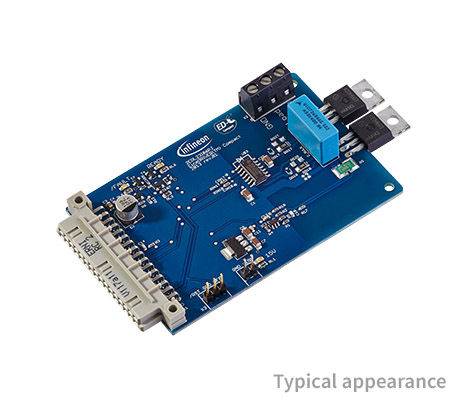

This gate driver evaluation board was developed to show the functionalities and key features of the 2EDL23I06PJ 600V half bridge gate driver IC with LS-SOI technology to control IGBTs .

Features

  • Overcurrent comparator
  • Enable function, Fault indicator
  • Individual control circuits
  • Detection of under voltage supply
  • All inputs clamped by diodes
  • Off line gate clamping function
  • Asym. underv. lockout thresholds
  • Insensitivity of the bridge output*
  • *to negative transient volt. < -50V
  • Ultra fast bootstrap diode

Applications
