DEMO DISTANCE2GOL

Demo kit with XENSIV™ BGT24LTR11 24 GHz radar sensor in software-controller FMCW mode, for range measurements and 1D tracking of humans
Application Notes
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DEMO DISTANCE2GOL
DEMO DISTANCE2GOL
Application Notes

Product details

  • Antenna
    External
  • Board Type
    Demo Board
  • Direction of Motion
    Yes
  • Family
    XENSIV™ 24GHz Radar Sensors
  • Frequency
    24 GHz to 24.5 GHz
  • Halogen-free
    yes
  • Input Type
    DC
  • Max Detection Range
    20 m
  • Min Detection Range
    1 m
  • Motion
    yes
  • Number of Rx Antennas max
    1
  • Number of Tx Antennas max
    1
  • Product Name
    BGT24LTR11
  • Qualification
    Industrial (JEDEC20/22)
  • Range
    yes
  • Speed [m/s]
    Yes
  • Target Application
    UAVs, Smart Home, HVAC, Security systems, Lighting systems, Smart Building
Recommended
OPN
DEMODISTANCE2GOLTOBO1
Product Status active
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

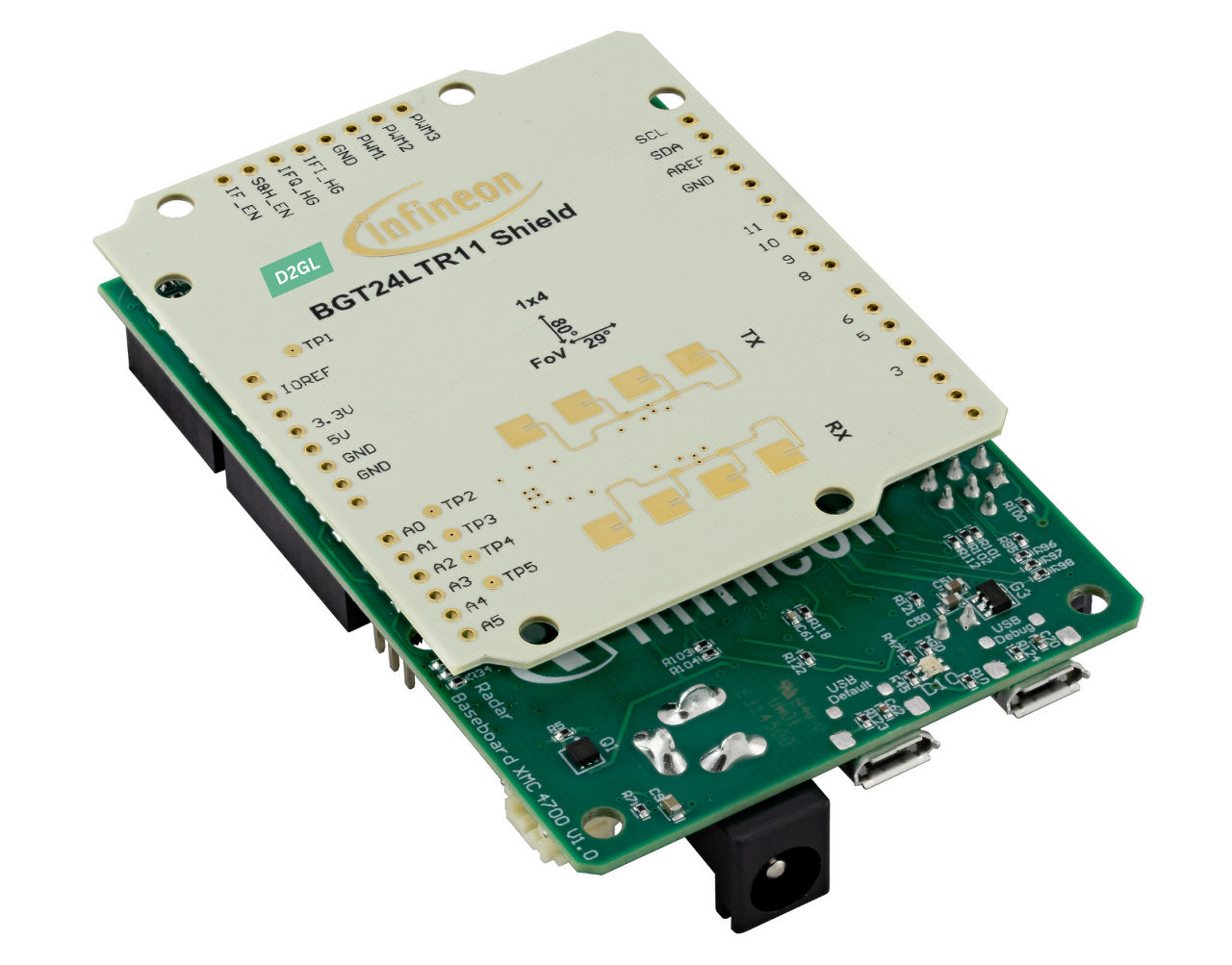

This demo kit features XENSIV™ BGT24LTR11 Software-Controller FMCW shield mounted on a Radar Baseboard MCU4 (based on XMC4700 MCU), via the SAMTEC connectors. This kit operates in Software-Controller FMCW mode and is compatible with the DAVE™ based embedded software and Radar GUI, enabling easy radar sensor configuration and an immediate display of radar signals, targeting range measurements and 1D tracking of humans. The XENSIV™ BGT24LTR11 FMCW shield embeds the 24 GHz BGT24LTR11 radar sensor with 1Tx, 1Rx onboard antennas. Additionally, it is adaptable for use with other hardware, such as the Arduino UNO.

Features

  • Detects distance & velocity of the closest target
  • Configurable detection range up to 15 m for humans
  • Low power consumption due to duty cycling options
  • Arduino compatible baseboard
  • Micro-strip patch antennas with 10 dBi gain
  • Field of View of 29°/80°
  • Operates with Radar GUI (Legacy)

Benefits

  • Detects distance & velocity of the closest target
  • Configurable detection range up to 15 m for humans
  • Low power consumption due to duty cycling options
  • Arduino compatible baseboard
  • Micro-strip patch antennas with 10 dBi gain
  • Field of View of 29°/80°
  • Operates with Radar GUI (Legacy)
