TLE9189QVW

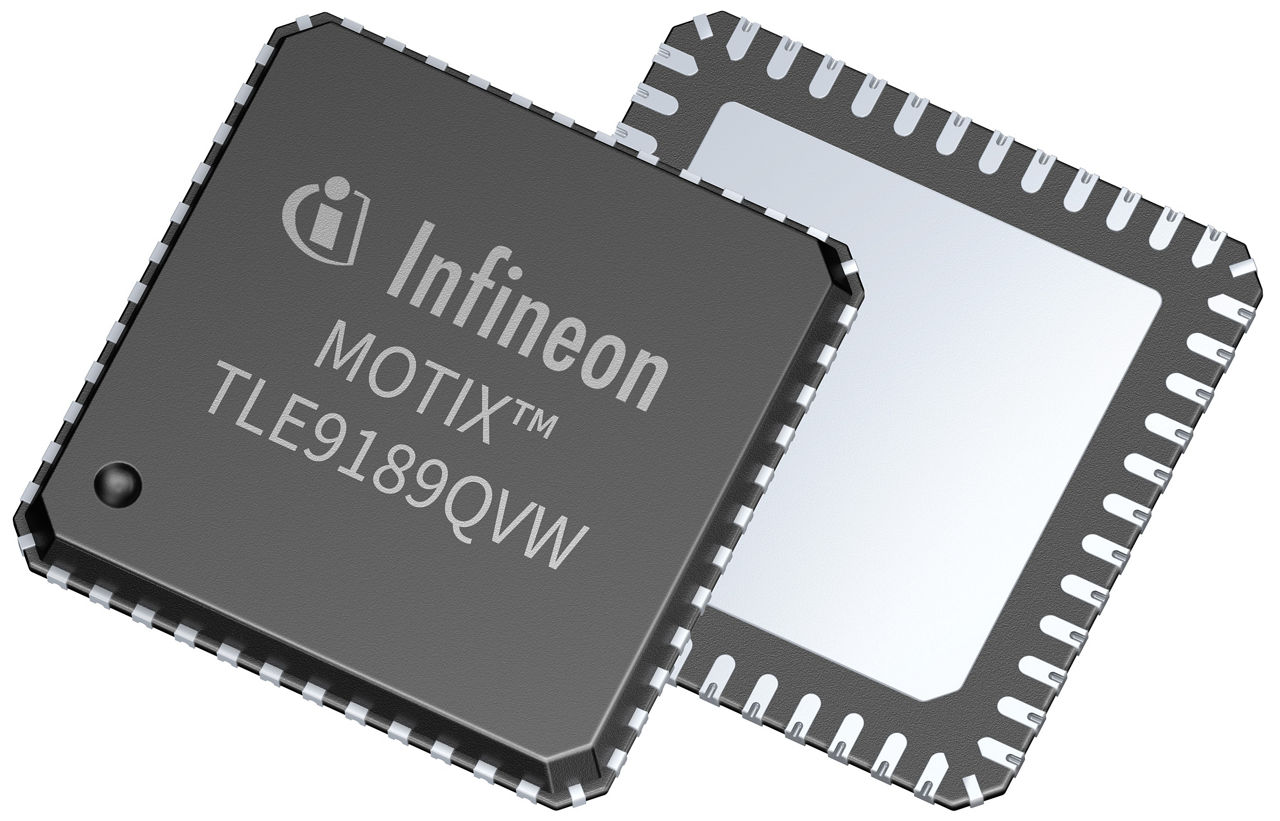

MOTIX™ TLE9189QVW is a gate driver IC is designed for BLDC motor drive applications in the automotive sector with ISO 26262 ASIL D compliance.
Data Sheet
package
board
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9189QVW
TLE9189QVW
ea.
Data Sheet

Product details

  • Channels
    3
  • Classification
    ISO 26262-compliant
  • Configuration
    3-phase
  • Current Sense Amplifier
    3
  • Driving Capability
    200nC at 20 kHz
  • Family
    MOTIX™ gate driver ICs
  • Operating Voltage
    4.2 V to 36 V
  • Output Current
    Configurable via SPI
  • Planned to be available until at least
    2039
  • Qualification
    Automotive
  • Supply Voltage
    4.2 V to 36 V
  • Technology
    MOTIX™ Driver
  • Temperature
    - 40°C - 175°C
  • Voltage range GHx,SHx
    Max. 40 V
Recommended
OPN
TLE9189QVWXUMA1
Product Status active and preferred
Infineon Package
PG-VQFN-48
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-VQFN-48
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
MOTIX™ TLE9189QVW gate driver IC for BLDC motors has a conventional motor control concept via PWM input and 3 integrated current sense amplifiers for accurate current measurement with a precise configurable reference voltage (3.3 V/5 V). The adaptive MOSFET control feature helps improve EMC performance, achieve target switching time and reduce power losses. The supply voltage range (4,2 V to 36 V) is optimized for automotive 12 V battery systems.

Features

  • Drives 6 MOSFETs, Qgtot= 200 nC/MOSFET
  • Supply voltage range of 4.2 V to 36 V
  • 0..100% duty cycle w/o restrictions
  • Motor control concept with PWM input
  • Robust motor connection pins (12 V-48 V)
  • 3 integrated current sense amplifiers
  • Configurable reference voltage for CSA
  • Support of self-test features
  • Passive clamping of external FETs
  • Current source-controlled output stage
  • VQFN-48 (7x7mm2)
  • Diverse monitoring & diagnostics

Benefits

  • Reduced external component count
  • Optimized system cost
  • Fully operational down to 4.2 V supply
  • Configurable failure reactions
  • Extended temperature range AEC-Q100
  • ISO 26262 FuSa-compliant: ASIL D

Diagrams

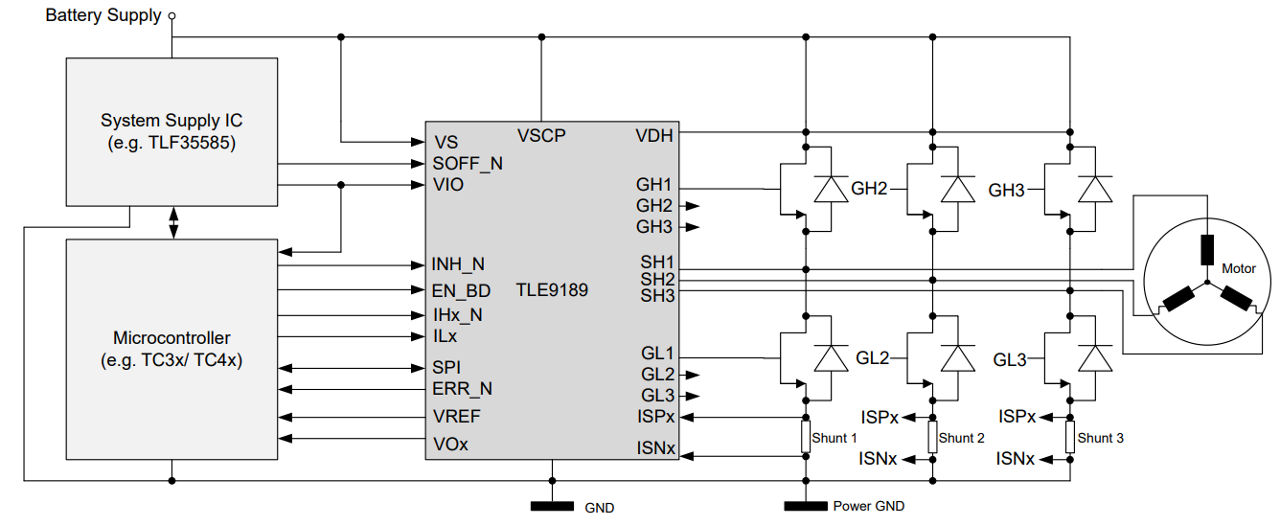

tle9189-product-page
