XDP720-001

Stackable 20 A, 3.2 mΩ electronic fuse (eFuse) with PMBus® interface for 7V to 80V DC rails in a small LIQFN-23 package
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

XDP720-001
XDP720-001
Data Sheet

Product details

  • Analog reporting
    Current
  • Communication Interfaces
    PMBus 1.3 at 1MHz
  • Current rating
    20 A
  • Current sensing
    High-side
  • Energy reading register size
    40-bit
  • Fault response
    auto retry or digitally configurable, Latch off
  • Input Voltage fault hysteresis configurability
    OV and UV are configurable
  • Input Voltage
    7 V to 80 V
  • Inrush current control type
    SOA current control
  • Package
    PG-LIQFN-23
  • Power averaging ((32,768 samples))
    3 s
  • Product Group
    eFuse
  • Protection Features
    VDS protections, over temperature, FET health, Watchdog, undervoltage, Programmable overcurrent, severe overcurrent, overvoltage
  • Supported rails
    Positive
  • Surge immunity
    Yes
  • Telemetry accuracy
    V ≤ 0.5%, I ≤ 1.0%, P ≤ 2.0%, E ≤ 3.0%
OPN
Product Status coming soon
Infineon Package
PG-LIQFN-23
Package Name N/A
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status coming soon
Infineon Package
PG-LIQFN-23
Package Name -
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

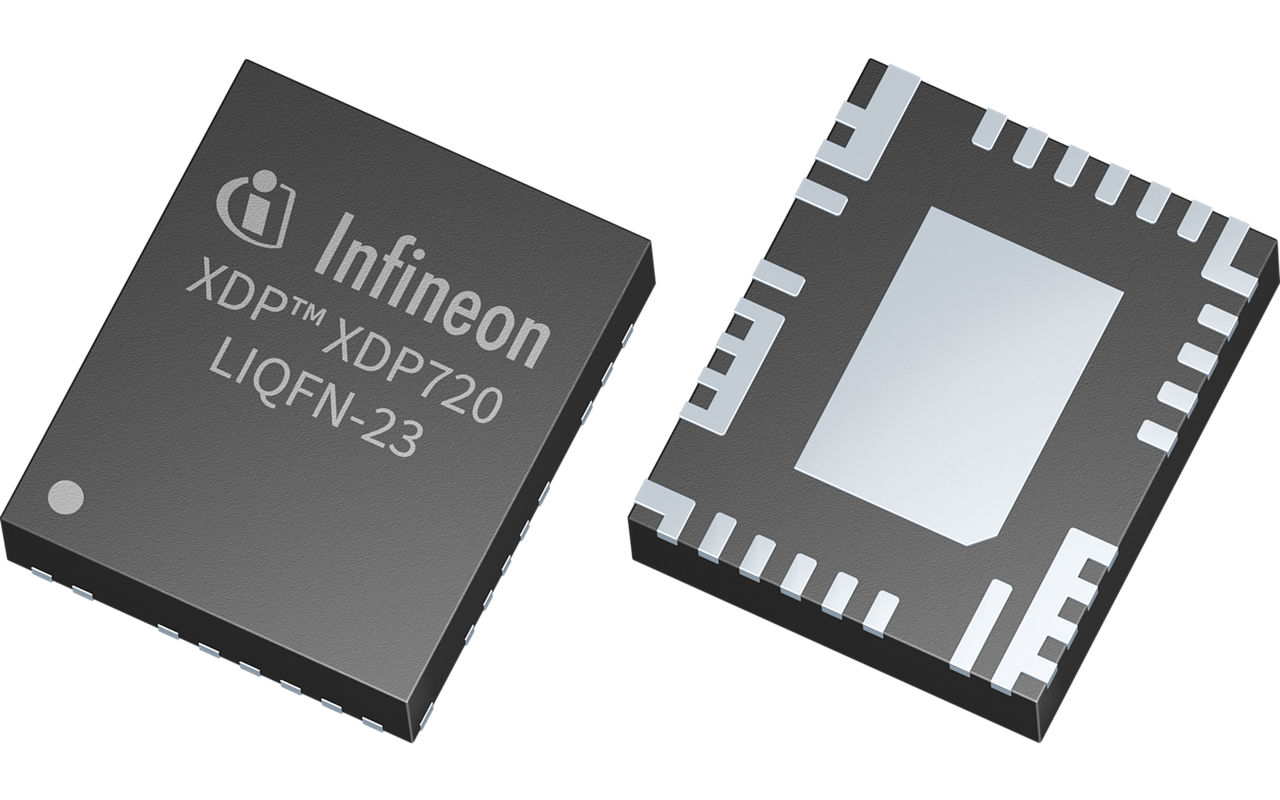

Infineon's XDP720-001 eFuse integrates a hot-swap controller, a low RDS(on) FET with up to 20 A current carrying capability, and a current sense in a small 6 mm x 5 mm package. With its wide operating voltage range, Surge Immunity, telemetry, and extensive list of protection features against e.g., inrush current, under- and overvoltage, and overcurrent, it is especially suitable for sophisticated 48 V/54 V (AI) server and data center applications.

Features

  • Input operating voltage range 7 V to 80 V
  • Integr. low RDS(on) OptiMOS™ FET, 3.2 mΩ
  • Integr. current sense & hot-swap ctrl.
  • Fault response: programmable
  • Active SOA protection
  • PMBus® v1.3 interface: up to 1 MHz
  • Input voltage Surge Immunity
  • Primary or secondary operation mode
  • Active monitoring: V≤0.5%, I≤1.0%
  • IMON current reporting accuracy: ≥ ±1%
  • One-time program. non-volatile memory
  • Small footprint: LIQFN-23 (6 mm x 5 mm)

Benefits

  • Improves system reliability & robustness
  • High level of protection & flexibility
  • Reduce risk of damage from faults
  • Suitable for a variety of applications
  • Accurate & high-speed telemetry
  • Small footprint & reduced system BOM
  • Current sharing to achieve higher IOUT
