XDP711-001

XDP711-001 is the new member of Infineon's wide input voltage hot-swap controller with programmable digital SOA control ideal for AI servers
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

XDP711-001
XDP711-001
Data Sheet

Product details

  • Analog reporting
    Power, Current
  • Communication Interfaces
    PMBus 1.3 at 1MHz
  • Current sensing
    High-side
  • Energy reading register size
    40-bit
  • Fault response
    Auto retry or digitally configurable, Latch off
  • Input Voltage fault hysteresis configurability
    Both OV and UV are configurable
  • Input Voltage
    7 V to 80 V
  • Inrush current control type
    SOA current control, boost mode with auto boost or full boost
  • Package
    PG-VQFN-29
  • Power averaging ((32,768 samples))
    3 s
  • Product Group
    Hot-swap controller
  • Protection Features
    Input overvoltage, input undervoltage, output undervoltage, overcurrent, short circuit current, over temperature, FET faults, fast input overvoltage, watchdog timer, memory, SOA fault, VDS fault
  • Supported rails
    Positive
  • Surge immunity
    Yes
  • Telemetry accuracy
    V ≤ 0.4%, E ≤ 2.7%, P ≤ 1.15%, I ≤ 0.75%
Recommended
OPN
XDP711001XUMA1
Product Status active and preferred
Infineon Package
PG-VQFN-29
Package Name N/A
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-VQFN-29
Package Name -
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
XDP711-001 is a wide input voltage hot-swap & monitoring controller with digital SOA control & enhancements over XDP710 to meet the high availability & reliability requirements of AI servers while maintaining backward compatibility. It drives single or multiple parallel MOSFETs, enables continuous system health monitoring & high-speed communication via PMBus, which allows system designers to disable the downstream sub-systems fully or partially.

Features

  • Wide VIN: +7V to +80V (100V for 500 ms)
  • Integrated gate drive: 0 to 250 uA
  • 1.5A gate pull-down on short-circuit
  • Programmable & pre-set FET SOA profiles
  • 12-bit ADC: V ≤ 0.4%, I ≤ 0.75% accuracy
  • NVM programmable fault & warning levels
  • Pulsed SOA current control technology
  • Telemetry with PMBus 1.3 interface @1MHz
  • FET health monitoring
  • Analog current and power reporting
  • Input voltage Surge Immunity

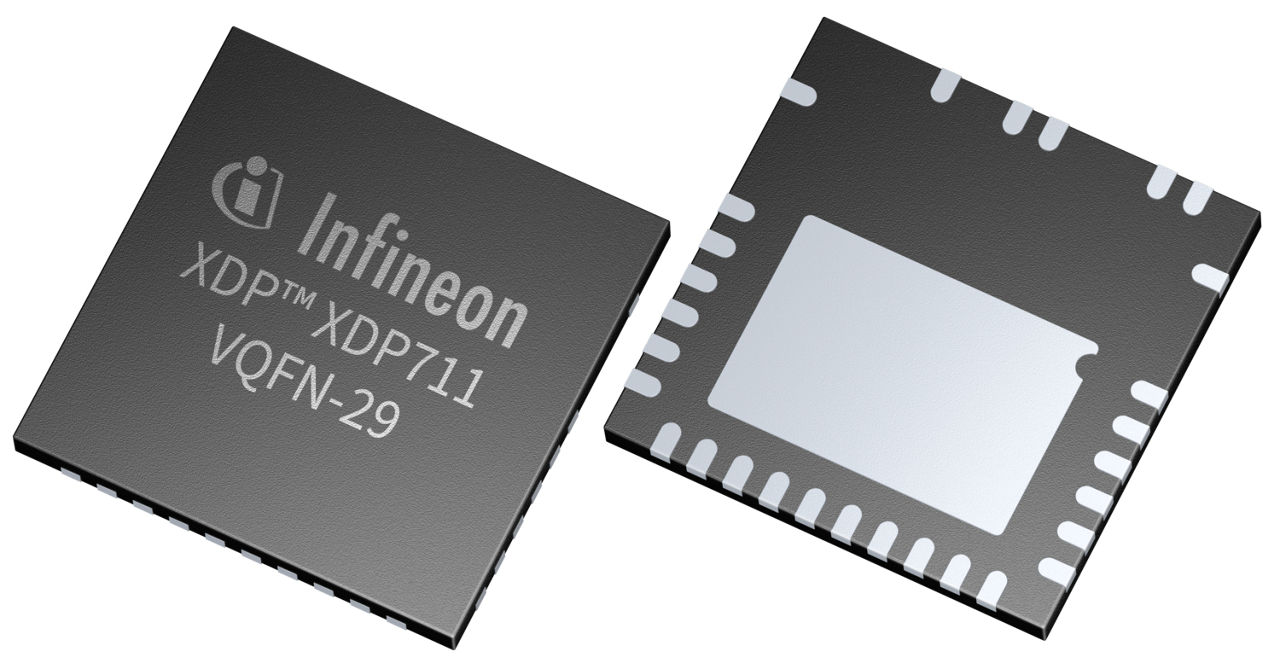

  • 29-lead 6mm x 6mm VQFN package

Benefits

  • Increased system reliability
  • Optimized system performance
  • Higher flexibility in design
  • Allows for system scalability
  • Robust design due to protection features
  • Small footprint & reduced BOM
  • Compliance with industry standards
  • Turn-off in <1μs on short-circuit
  • Support for non-optimized SOA FETs
