TLS205B0EJ V33

The TLS205B0EJ V33 is a micropower, low noise, capable of supplying an output current of 500 mA with a dropout voltage of 320 mV.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLS205B0EJ V33
TLS205B0EJ V33
ea.
Data Sheet

Product details

  • Accuracy
    2.5 %
  • Base Product
    TLS205B0xxVxx
  • Budgetary Price €/1k
    0.65
  • Dropout Voltage
    320 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    yes
  • Family
    EiceDRIVER™ isolated gate driver ICs for EV
  • Hold
    no
  • Operating Temperature
    -40 °C to 125 °C
  • Operating Voltage
    2.3 V to 20 V
  • Output Current max
    500 mA
  • Output Voltage Type
    3.3 V
  • Over Voltage Protection
    no
  • Planned to be available until at least
    2038
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    30 µA
  • Regulator Type
    Post Regulator
  • Reset
    no
  • Status Output
    no
  • Watchdog
    no
Recommended
OPN
TLS205B0EJV33XUMA1
Product Status active and preferred

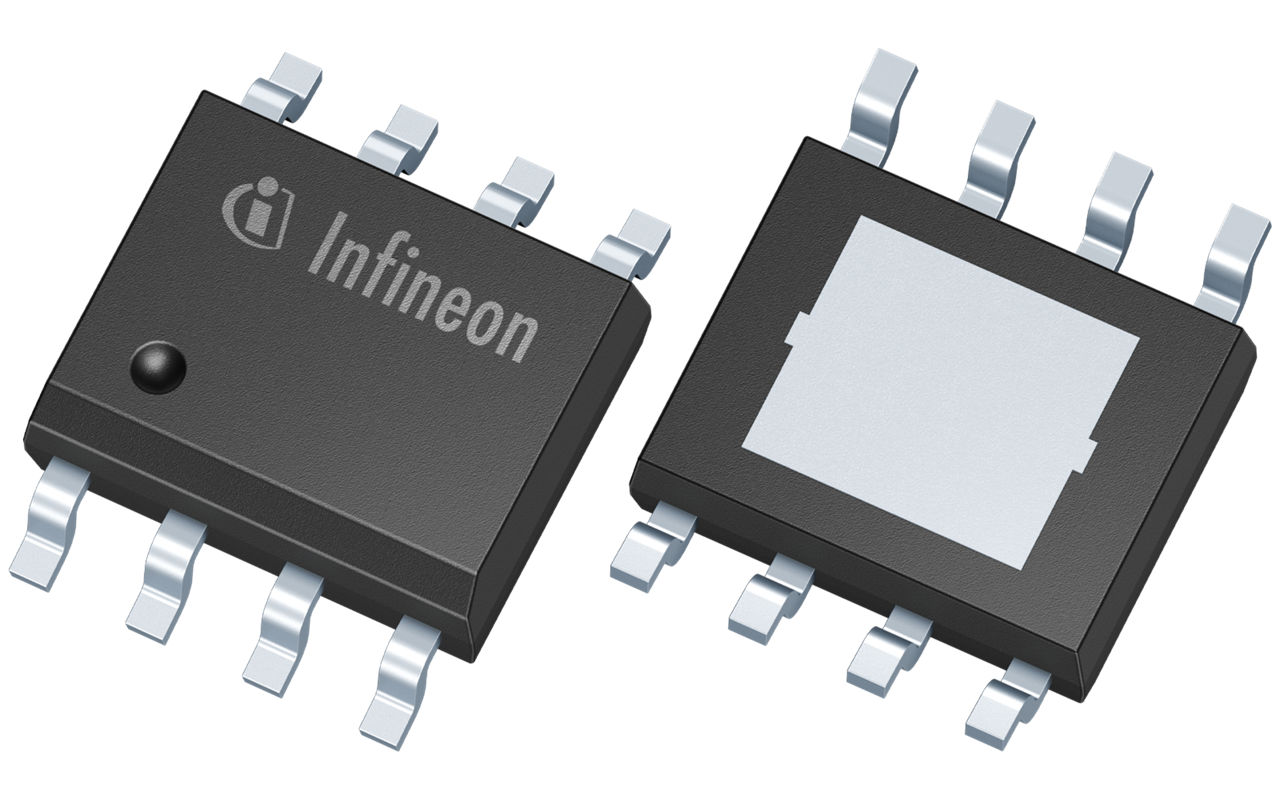

Infineon Package
PG-DSO-8
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-8
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
TLS205B0EJV33: Ideal for battery-powered systems with low quiescent current (30μA). Low output noise with 0.01μF bypass capacitor. Stable with small output capacitors (3.3μF), no series resistance needed for ceramic capacitors. Internal protection: reverse battery, current limiting, reverse current. Fixed output voltages (3.3V, 5.0V) and adjustable (1.22V reference). Available in PG-DSO8 and PG-TSON10 exposed pad packages.

Features

  • Wide Input Voltage Range: up to 20 V
  • 500 mA Current Capability
  • Low Quiescent Current: 30μA
  • Low Dropout Voltage: 320 mV
  • Low Noise typ.: 30µV RMS
  • LIN 2.1 (Physical layer)
  • Reverse battery protected up to -2.5V
  • 8kV ESD protection for alternator
  • Duty cycle excitation 0-100%
  • Load response control (LRC)
  • Temperature range -40°C to 175°C

Benefits

  • Wide input voltage range
  • Low noise

Diagrams

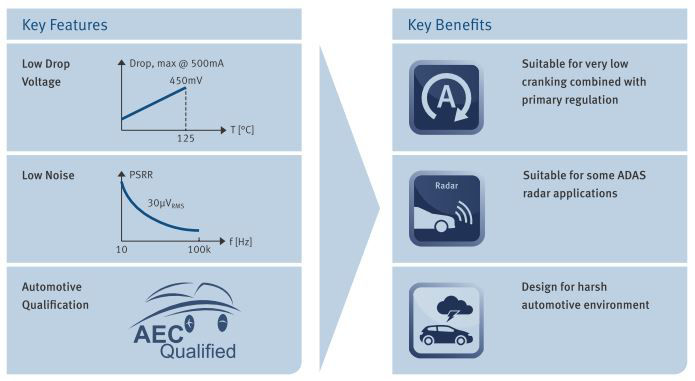

Key_features_and_benefits_TLS205B0_33V_50V
