TLI4965-5M

XENSIV™ - TLI4965-5M magnetic switch for industrial open/close detection
Data Sheet
package
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLI4965-5M
TLI4965-5M
ea.
Data Sheet

Product details

  • Bhyst
    2.5 mT
  • Bop
    7.5 mT
  • Brp
    5 mT
  • Interfaces
    open collector
  • Language
    Magnetics
  • Online Simulation
    https://design.infineon.com/hallsim/
  • Currently planned availability until at least
    2038, 2038
  • Product Category
    Sensors
  • Product Description
    5V High precision unipolar Hall switch for industrial applications
  • Supply Voltage
    3 V to 5.5 V
  • Temperature
    -40 °C to 125 °C
  • Type
    Unipolar
Recommended
OPN
TLI49655MXTSA1 TLI49655MXTMA1
Product Status active and preferred active and preferred
Infineon Package
PG-SOT23-3
PG-SOT23-3
Package Name N/A N/A
Packing Size 3000 10000
Packing Type TAPE & REEL TAPE & REEL
Moisture Level 1 1
Moisture Packing NON DRY NON DRY
Lead-free Yes Yes
Halogen Free Yes Yes
RoHS Compliant Yes Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-SOT23-3
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Product Status
Active
Infineon Package
PG-SOT23-3
Package Name -
Packing Size 10000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

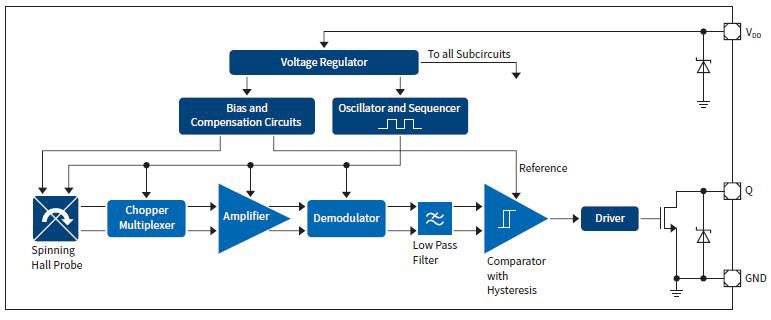

TLI496x-xM is an integrated Hall effect sensor specially designed for highly accurateapplications. The sensor provides an easy-to-use and cost effective solution for positionsensing applications, requiring high temperature stability of the magnetic threshold.Target applications for the TLI496x-xM Hall switch family are all applications requestinga precision Hall latch or Hall switch with an operating temperature from -40°C to 125°C.

Features

  • 3.0 V to 5.5 V operating supply voltage
  • „„Low current consumption 1.4 mA
  • „„ESD protection 4 kV HBM
  • „„Active error compensation (chopped)
  • High stability of magnetic thresholds
  • „„Low jitter (typ. 0.35 μs)
