TLE9954QSW40-33

NEW
TLE9954QSW40-33 is a fully integrated System-in-Package (SiP) with SoC and built-in MOSFETs

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9954QSW40-33
TLE9954QSW40-33

Product details

  • Classification
    ISO 26262-compliant
  • Clock Frequency
    40 MHz
  • Family
    MOTIX™ 32-bit motor control SiP
  • High Voltage Monitor Input
    1
  • Instruction Set Architecture
    Arm® Cortex®-M23
  • Interfaces
    PWM + LIN
  • MOSFET Drivers (Low Side)
    3
  • MOSFET Drivers (High Side)
    3
  • Operating Voltage
    5.5 V to 29 V
  • Operational Amplifier
    Yes
  • Planned to be available until at least
    2038
  • Product Category
    Microcontroller (MCU)
  • RAM
    6 kByte
  • Solid Flash
    72 kByte
  • Technology
    MOTIX™ MCU
  • Temperature
    - 40°C - 175°C
  • Tj
    175 °C
OPN
TLE9954QSW4033AUMA1
Product Status coming soon
Infineon Package PG-LIQFN-58
Package Name N/A
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status coming soon
Infineon Package PG-LIQFN-58
Package Name -
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

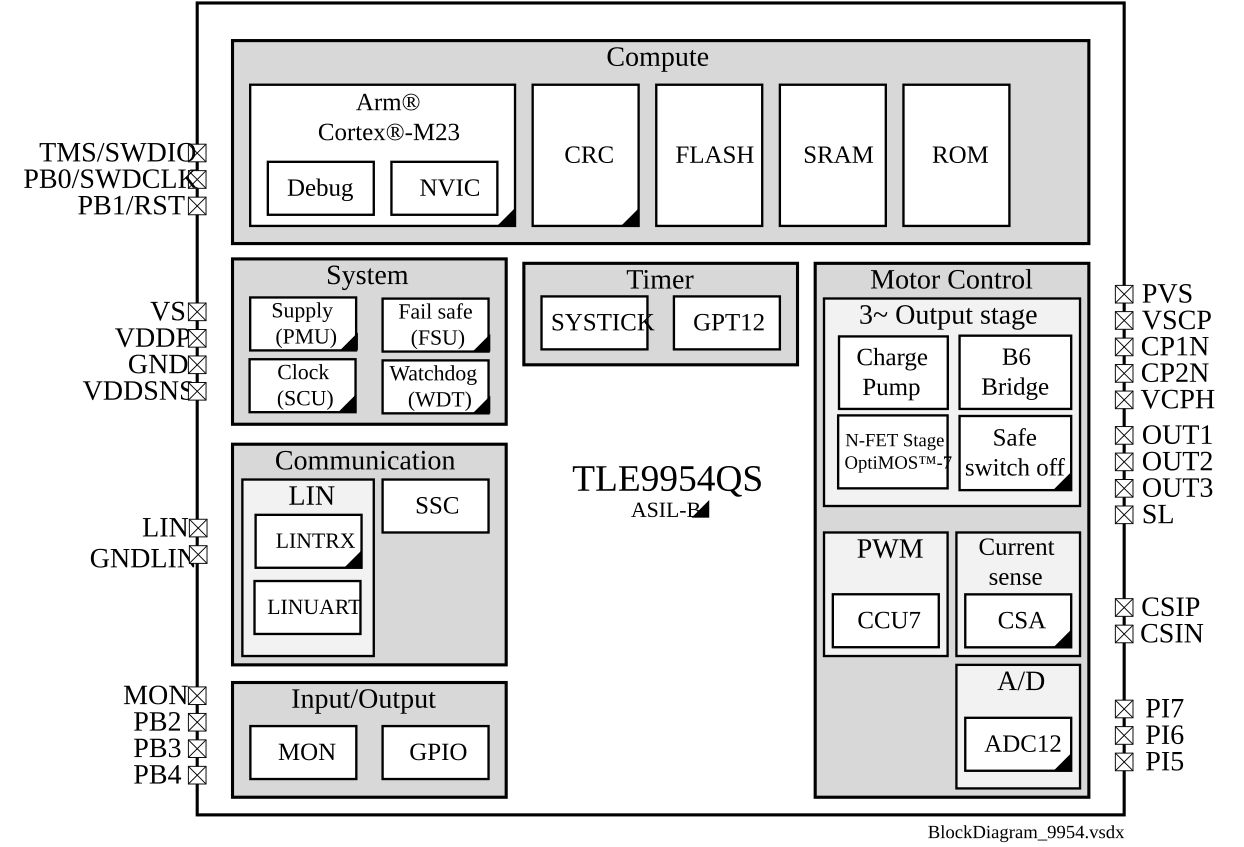

The TLE9954QSW40-33, System-in-Package, combines the TLE9954EQW40 with 6 OptiMOS™ 7 MOSFETs, delivering a compact, highly integrated solution for automotive BLDC pumps and seats. It offers 40% space savings, enhanced EMC performance, and enables very fast switching rate compared to discrete solutions—all without compromising EMC. Ideal for BLDC automotive applications up to 150W, it ensures efficiency and reliability in a custom-made QFN package.

Features

  • 32-bit Arm® Cortex®-M23 core, 40 MHz
  • Single power supply from 5.5 V to 29 V
  • On-chip clock generation
  • 72 KB Flash, 6 KB RAM, EEPROM emulation
  • LIN with protocol support (LINUART)
  • High voltage monitoring pin (MON)
  • Fast synchronous communication (SSC)
  • Three-phase bridge driver (BDRV)
  • Integrated B6 OptiMOS™-7 NFETs
  • Low-side shunt current sense amplifier
  • Fast 12-bit ADC up to 16 inputs
  • Temperature range: -40°C to 175°C
  • LIQFN-58-1 package

Benefits

  • 40% PCB space saving (vs. discrete)
  • Better motor control (fast switching)
  • Optimized EMC performance
  • Improved hardware features
  • Functional safety (ASIL-B)
  • Cybersecurity (TrustZone)
  • Premium design-in experience
  • FOC capability
