Active and preferred
RoHS Compliant
Lead-free

TLE9562-3QXJ

The MOTIX™ TLE9562-3QXJ conforms to Vehicle LAN Interoperability with integrated power supply, communication interfaces and multiple half-bridges.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9562-3QXJ
TLE9562-3QXJ
ea.
Data Sheet

Product details

  • Classification
    ISO26262-ready
  • Control Interface
    SPI
  • Family
    MOTIX™ motor system ICs (SBC)
  • Gate current max
    100 mA
  • Planned to be available until at least
    2039
  • Qualification
    Automotive
  • Supply Voltage absolute max ratings
    40 V
  • Supply Voltage
    5.5 V to 28 V
  • Temperature
    -40 °C to 150 °C
  • Transceiver
    1 x CAN PN
  • Voltage Regulator Output
    5V / 250 mA
Recommended
OPN
TLE95623QXJXUMA1
Product Status active and preferred
Infineon Package
PG-VQFN-48
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-VQFN-48
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

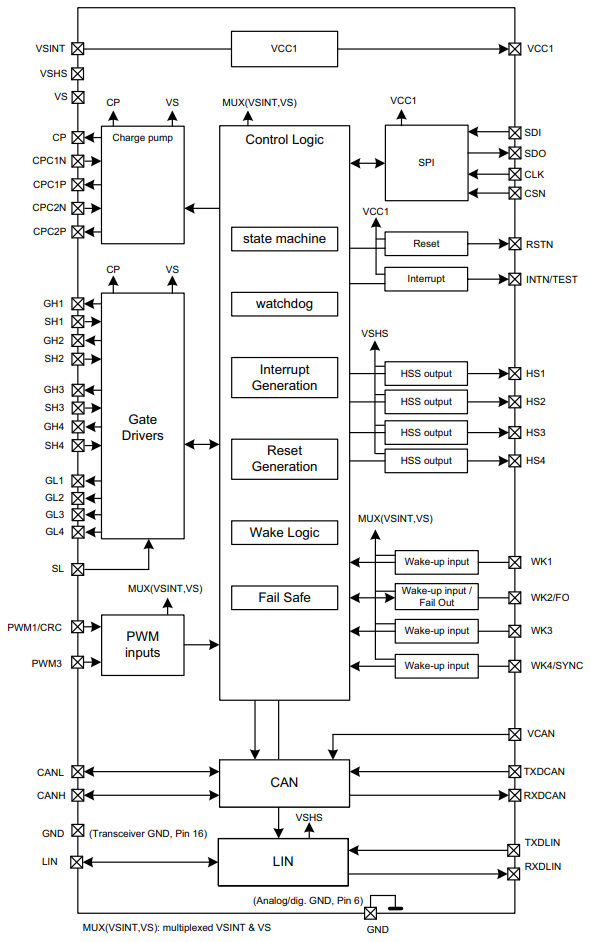

The device integrates a 5 V low-dropout voltage regulator, one HS-CAN transceiver supporting CAN FD, CAN Partial Networking (incl. FD Tolerant Mode), one LIN transceiver, four half-bridges for DC motor control, and one 32 bit serial peripheral interface (SPI). This device offers diagnostic and supervision features and is ISO 26262-ready.

Features

  • Low-drop voltage regulator 5 V, 250 mA
  • Half-bridge gate drivers for N-channel
  • CAN transceiver supporting CAN FD
  • LIN Transceivers LIN2.2/SAE J2602
  • Certified according to VeLIO test
  • Four high-side outputs 7 Ω typ
  • High-side and low-side PWM capable
  • Active free-wheeling
  • Up to 25 kHz PWM frequency
  • 32-bit SPI with CRC
  • Ultra-low current in stop & sleep

Benefits

  • Cut PCB size by 50% through integration
  • Efficient MOSFET pre-charge control
  • Product validation
  • Qualified for automotive applications

Applications
