Active and preferred
RoHS Compliant
Lead-free

TLE9351BVSJ

High speed CAN Transceivers with up to 8Mb/s transmission speed for automotive & many other applications.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9351BVSJ
TLE9351BVSJ
ea.
Data Sheet

Product details

  • Additional Features
    higher mission profile
  • Bus Wake-Up Capability
    Yes
  • Family
    CAN Transceiver
  • Green
    RoHS compliant, Halogen free
  • Language
    IBIS
  • Currently planned availability until at least
    2038
  • Quiescent Current
    <18µA @5V STB
  • Standards
    ISO 11898-2:2016, SAE J2284-4/-8
  • Transmission Rate max
    5 MBit/s
Recommended
OPN
TLE9351BVSJXTMA1
Product Status active and preferred

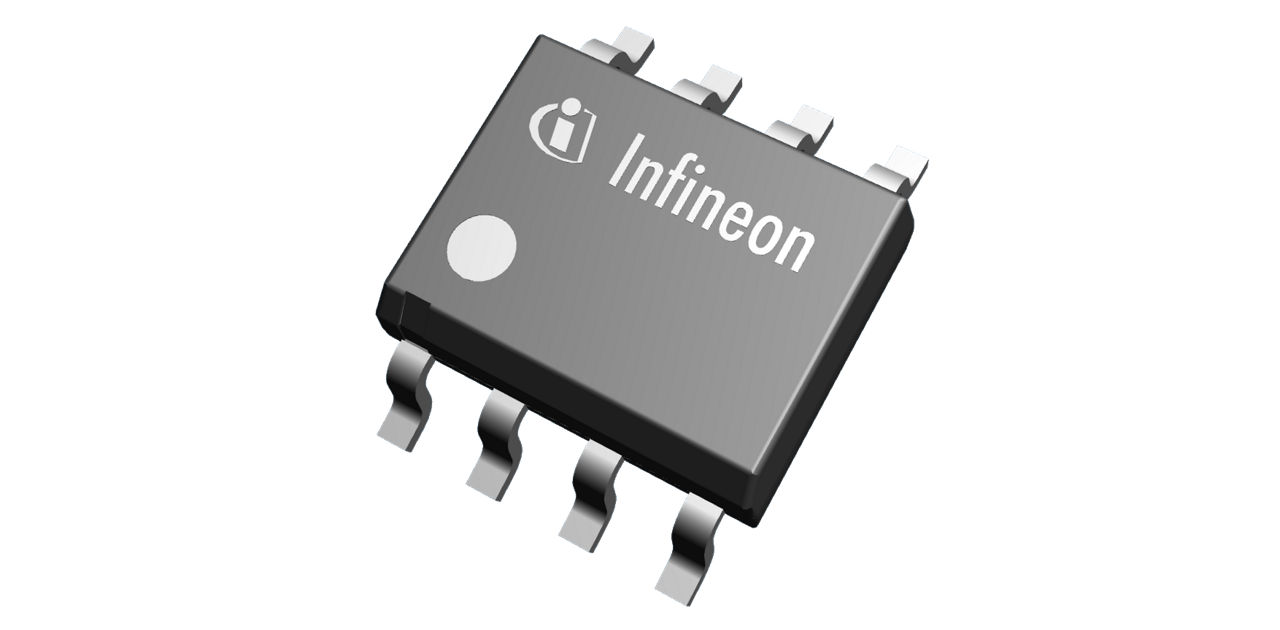

Infineon Package
PG-DSO-8
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-8
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The TLE9351BVSJ is a high speed CAN transceiver, used in HS CAN systems for automotive applications as well as for industrial applications. It is designed to fulfill the requirements of ISO 11898-2:2016 physical layer specification as well as SAE J1939 and SAE J2284. The TLE9351BVSJ is available in a RoHS compliant, halogen free PG-DSO-8 package.

Features

  • Fully compliant to ISO 11898-2:2016 and SAE J2284-4/-5
  • Loop delay symmetry for CAN FD data frames up to 5 Mbit/s
  • Very low electromagnetic emission (EME) allows the use without
    • additional common mode choke
  • VIO input for voltage adaption to the microcontroller interface (3.3 V or 5 V)
  • Bus wake-up pattern (WUP) function with optimized filter time for
    • worldwide OEM usage
  • Standby mode with minimized quiescent current
  • Transmitter supply VCC can be disabled in standby mode to further minimize quiescent current
  • Excellent ESD robustness
  • TxD timeout function
  • Very low CAN bus leakage current in power-down state
  • Overtemperature protection
  • Protected against automotive transients according to ISO 7637 and SAE J2962-2

Benefits

  • very high EDS robustness allowing for use without additional protection device
  • Excellent EMC without additional external circuitry
  • Low current consumption

Applications
