TLE92102QVW

NEW
The TLE92102 is an advanced gate driver with one integrated current sense amplifier (CSA) and compliant to ISO 26262 (ASIL B)
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE92102QVW
TLE92102QVW
ea.
Data Sheet

Product details

  • Classification
    ISO 26262-compliant (ASIL B)
  • Control Interface
    PWM, 24 bits SPI
  • Planned to be available until at least
    2039
  • Qualification
    Automotive
  • Supply Voltage absolute max ratings max
    40 V
  • Supply Voltage min
    7 V
  • Supply Voltage max
    36 V
  • Temperature
    -40 °C to 175 °C
Recommended
OPN
TLE92102QVWXUMA1
Product Status active and preferred
Infineon Package
PG-VQFN-32
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-VQFN-32
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

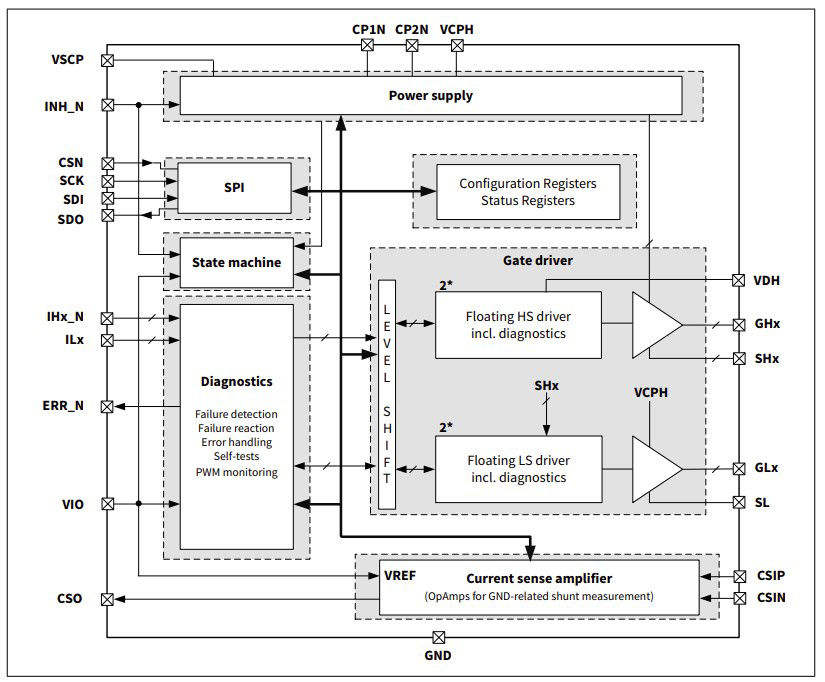

The TLE92102 is an advanced gate driver with SPI interface dedicated to control up to four N-channel MOSFETs. It includes two half-bridges for DC motor control, one integrated current sense amplifier (CSA) and is compliant to ISO 26262 (ASIL B). TLE92102 is ideal for 12 V and up to ASIL B rated safety motor drive applications such as seat control, window lift central door lock or body control module.

Features

  • Drive up to 4 N-MOSFETs
  • Integrated current sense amp
  • Configurable Gate current sequencer
  • Current control output stages
  • Redundant switch off path
  • 7-36V supply
  • PWM input
  • Configurable failure reactions
  • Monitoring & diagnostics
  • ISO 26262 ASIL B
  • AEC Q100 grade 0
  • 5MHz SPI configuration

Benefits

  • Drives up to 2 half-bridges
  • Reduces BOM
  • Low system cost
  • Avoids EMC problems
  • Precise control of the MOSFET
  • Precise control of the motor
  • Redundant path in case of error
  • Reduced energy consumption

Applications
