TLE75602-ESD

The TLE75602-ESD is an eight channel low-side and high-side power switch in PG-TSDSO-24-21 package providing embedded protective functions
Data Sheet

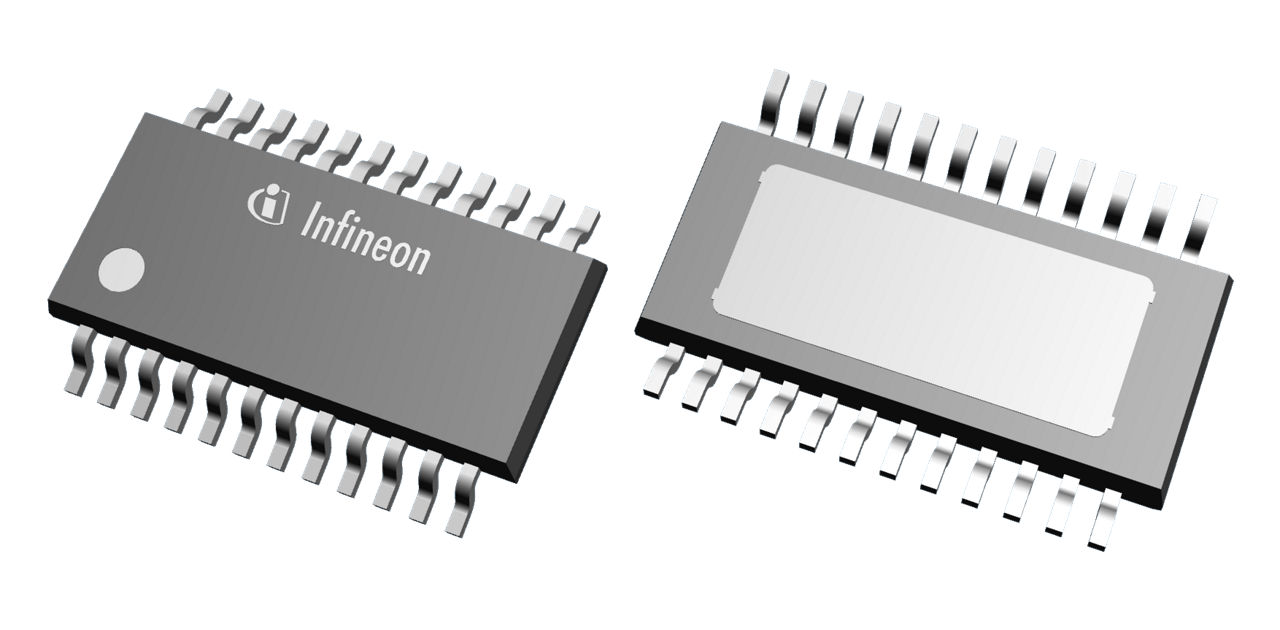

package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE75602-ESD
TLE75602-ESD
Data Sheet

Product details

  • Channels
    8
  • Configurable Channels
    6
  • Cranking mode
    Yes
  • Daisy-Chain Capability
    Yes
  • Family
    SPIDER+
  • ID (multiple)
    330.0 mA
  • ID(lim) min
    1 A
  • Limp Home Feature
    Yes
  • Mounting
    SMT
  • Open Load Detection
    Off
  • Open Load Disable Function
    Yes
  • Operating Temperature
    -40 °C to 150 °C
  • Over Current Protection
    Shutdown
  • Overload shutdown
    Yes
  • Currently planned availability until at least
    2037
  • PWM Inputs
    2
  • Quiescent Current max
    5 µA
  • RDS (on) (@ Tj = 25°C)
    1 Ω
  • Short GND Detection
    Yes
  • SPI
    16 Bit
  • Standby Mode
    Yes
  • Undervoltage Shutdown
    Yes
  • VDD
    3.0-5.5 V
  • VDS(CL)
    42 V to 55 V
Recommended
OPN
TLE75602ESDXUMA1
Product Status active and preferred
Infineon Package
PG-TSDSO-24
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-TSDSO-24
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
It is specially designed to control relays and LEDs in automotive and industrial applications. A serial peripheral interface (SPI) is utilized for control and diagnosis of the loads as well as of the device. For direct control and PWM there are two input pins available connected to two outputs by default. Additional or different outputs can be controlled by the same input pins (programmable via SPI).

Features

  • 16-bit SPI for control & diagnosis
  • Daisy Chain capability SPI
  • 2 CMOS compatible parallel input pins
  • Cranking capability down to VS = 3.0 V
  • Digital supply V R compatible with 3.3 V
  • Very low quiescent current
  • Green Product (RoHS compliant)
  • AEC Qualified
