TLE6251-2G

The TLE6251-2G with an excellent passive behavior in Power Down, extremely suitable for mixed power supply HS-CAN networks.
Data Sheet

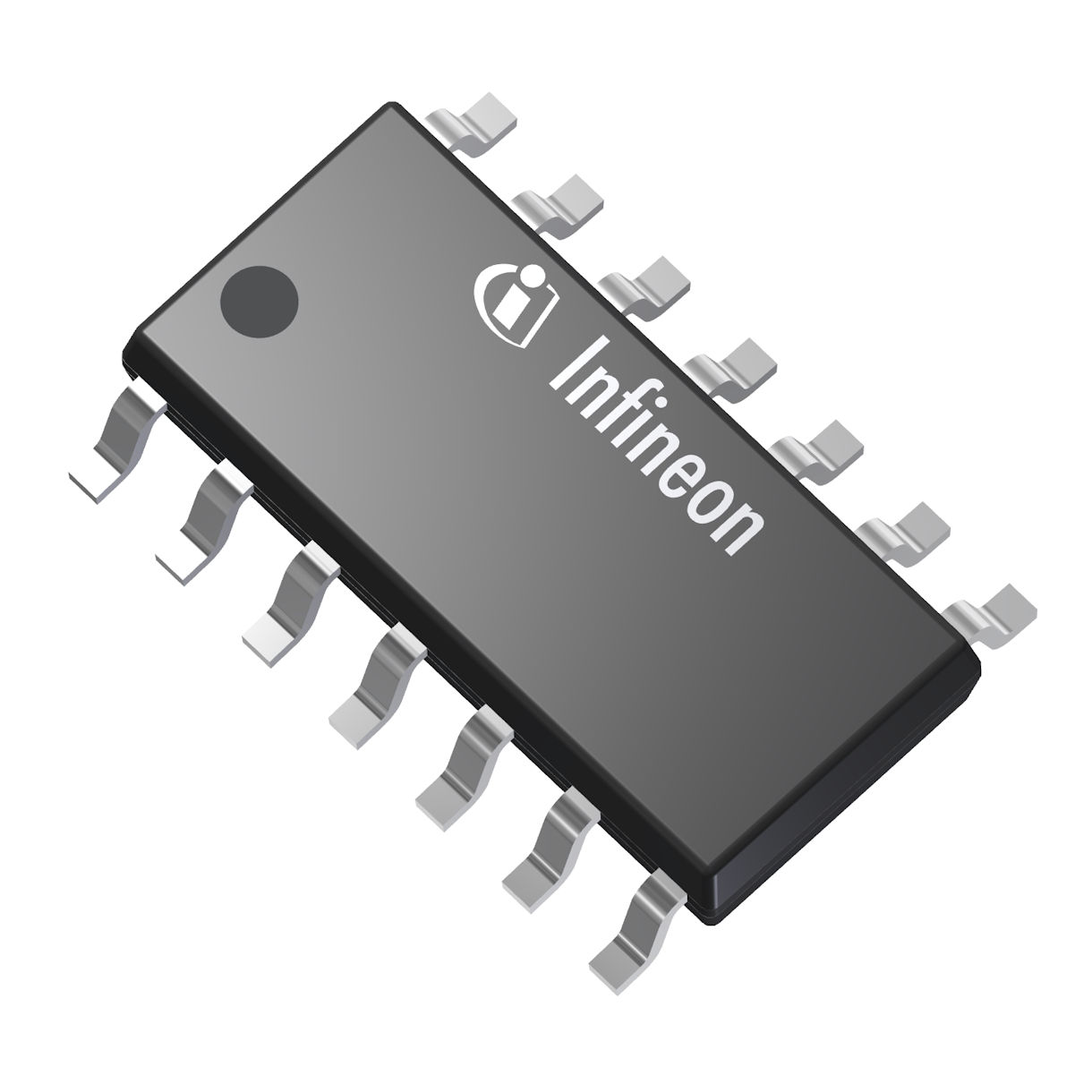

package
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE6251-2G
TLE6251-2G
ea.
Data Sheet

Product details

  • Additional Features
    NSTB, WK, EN, NERR, INH, Vio
  • Base Product
    CAN Classic
  • Bus Wake-Up Capability
    Yes
  • Family
    Classical CAN 1MBit/s
  • Features
    NSTB, WK, EN, NERR, INH Output, Vio , SPLIT PIN, Receive Only Mode
  • Green
    RoHS compliant, Halogen free
  • Product Category
    Transceivers
  • Qualification
    Automotive
  • Quiescent Current
    < 30 µA at 5 V standby
  • Standards
    ISO11898-5
  • Supply Voltage
    5 V, 3.3 V
  • Transmission Rate max
    1 MBit/s
  • Type
    CAN
  • Wake-up Inputs
    Bus Wake-up, Wake-up Pin
OPN
TLE62512GXUMA1 TLE62512GXUMA3
Product Status not for new design not for new design
Infineon Package
PG-DSO-14
PG-DSO-14
Package Name N/A N/A
Packing Size 2500 2500
Packing Type TAPE & REEL TAPE & REEL
Moisture Level N/A 2a
Moisture Packing DRY DRY
Lead-free Yes Yes
Halogen Free Yes Yes
RoHS Compliant Yes Yes
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package
PG-DSO-14
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

Product Status not for new design
Infineon Package
PG-DSO-14
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The TLE6251-2G is designed for passive behavior in Power Down for mixed power supply HS-CAN networks. It offers low quiescent current in Sleep mode and minimizes electromagnetic emission. Integrated in a RoHS compliant PG-DSO-14 package, it meets ISO11898-5 requirements and provides industry-leading ESD robustness and high electromagnetic immunity for automotive conditions.

Features

  • HS CAN Transceiver with data transmission rates up to 1 MBaud
  • Compliant to ISO 11898-5
  • Very low power consumption in Sleep Mode
  • Bus Wake-Up and local Wake-Up
  • Inhibit output to control external circuitry
  • Split termination to stabilize the “Recessive” level
  • Separate VIO input to adapt different micro controller supply voltages
  • Separate output for failure diagnosis
  • Optimized for low electromagnetic emission (EME)
  • Optimized for a high immunity against electromagnetic interference (EMI)
  • Very high ESD robustness, ± 9 kV according to IEC 61000-4-2
  • Protected against automotive transients
  • Receive-Only mode for node failure analysis
  • TxD time-out function and RxD recessive clamping with failure indication
  • TxD to RxD short circuit recognition with failure indication
  • CANH and CANL short circuit recognition with failure indication
  • Bus dominant clamping diagnosis
  • Under-voltage detection at V CC, V IO and V S
  • Power-Up and Wake-Up source recognition
  • Short circuit proof and Over-Temperature protection
  • Green Product (RoHS compliant)
  • AEC Qualified
