TLE4270-2D

The TLE4270-2D is a 5-V low drop fixed-voltage regulator. The maximum input voltage is 42 V (65 V, ≤ 400 ms).
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4270-2D
TLE4270-2D
ea.
Data Sheet

Product details

  • Accuracy
    2 %
  • Budgetary Price €/1k
    1.07
  • Dropout Voltage
    350 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    no
  • Family
    OPTIREG™ linear General Purpose
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    6 V to 42 V
  • Output Current max
    550 mA
  • Output Voltage Type
    5.0 V
  • Over Voltage Protection
    yes
  • Currently planned availability until at least
    2038
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    1000 µA
  • Regulator Type
    Application Specific - 24V
  • Reset
    yes
  • Status Output
    no
  • Watchdog
    no
Recommended
OPN
TLE42702DATMA1
Product Status active and preferred
Infineon Package
PG-TO252-5
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO252-5
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Up to an input voltage of 26 V and for an output current up to 650 mA it regulates the output voltage within a 2% accuracy. The short circuit protection limits the output current of more than 650 mA. The device incorporates overvoltage protection and a temperature protection which turns off the device at high temperatures.

Features

  • Output Voltage Tolerance ≤ ± 2%
  • 650 mA Output Current Capability
  • Low-drop Voltage
  • Reset Functionality
  • Adjustable Reset Time
  • Suitable Use in Automotive Electronics
  • Reverse Polarity Protection
  • Input Voltage up to 42 V
  • Overvoltage Protection up to 65V(≤400ms)
  • Short-circuit Proof
  • Wide Temperature Range

Benefits

  • Robust Protection Features
  • Integrated Overvoltage Detection

Applications

Diagrams

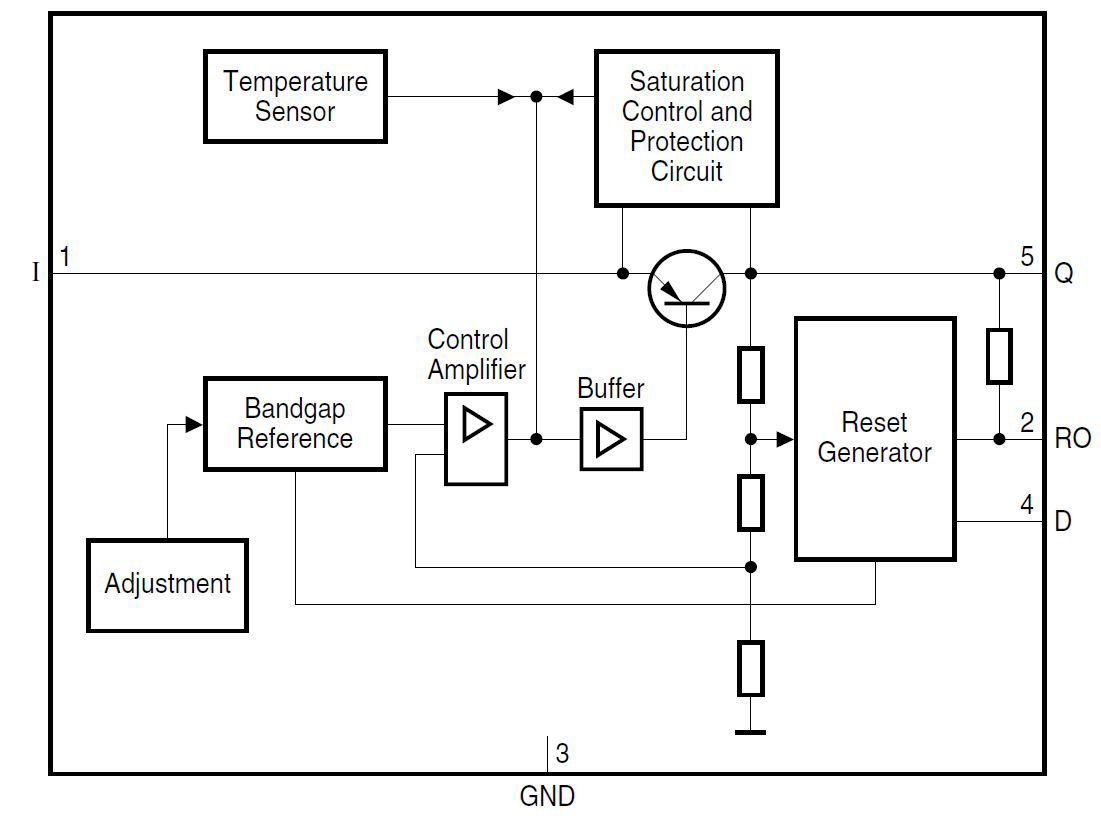

TLE4270-2-Block-Diagram
TLE4270-2-Block-Diagram
TLE4270-2-Block-Diagram TLE4270-2-Block-Diagram TLE4270-2-Block-Diagram

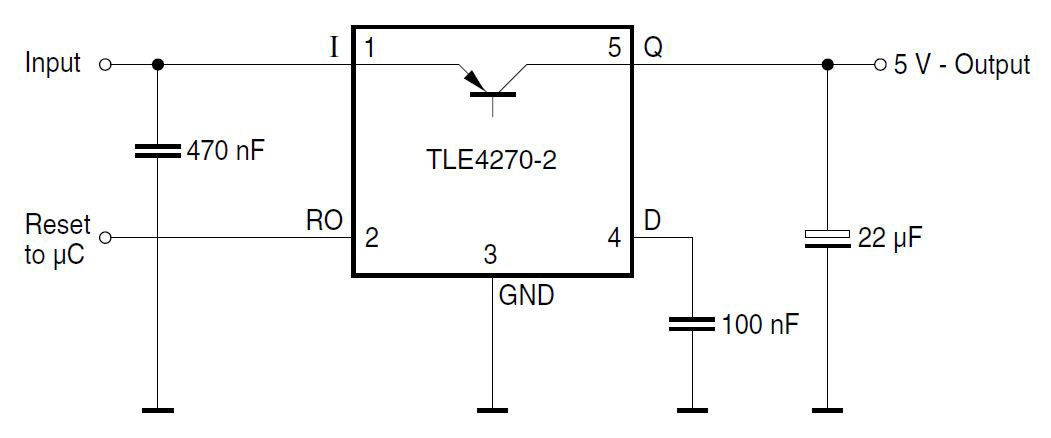

TLE4270-2-Application-Diagram TLE4270-2-Application-Diagram TLE4270-2-Application-Diagram
×
