IRS4426S

25 V dual-channel low-side gate driver IC
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRS4426S
IRS4426S
ea.
Data Sheet

Product details

  • Channels
    2
  • Configuration
    Low-side
  • Input Vcc
    6 V to 20 V
  • Isolation Type
    Non-isolated
  • Output Current (Sink)
    3.3 A
  • Output Current (Source)
    2.3 A
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    50 ns
  • Turn On Propagation Delay
    50 ns
  • VBS UVLO (On)
    11 V
  • VBS UVLO (Off)
    9.2 V
  • Voltage Class
    25 V
Recommended
OPN
IRS4426STRPBF
Product Status active and preferred
Infineon Package
SOIC 8N
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
SOIC 8N
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EiceDRIVER™ 25 V dual-channel low-side gate driver IC with typical 2.3 A source and 3.3 A sink currents in 8-lead SOIC and PDIP package for MOSFETs and IGBTs .The proprietary latch immune CMOS technologies enable ruggedized mono-lithic construction. The logic inputs are compatible with standard CMOS or LSTTL output. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction.

Features

  • Supply volt. rage with 25 V Vccmax
  • Gate drive supply: 6 V to 20 V
  • CMOS Schmitt-triggered inputs
  • 3.3 V and 5 V logic compatible
  • Two independent gate drivers
  • Matched prop. delay for both chan.
  • Outputs out of phase with inputs

Diagrams

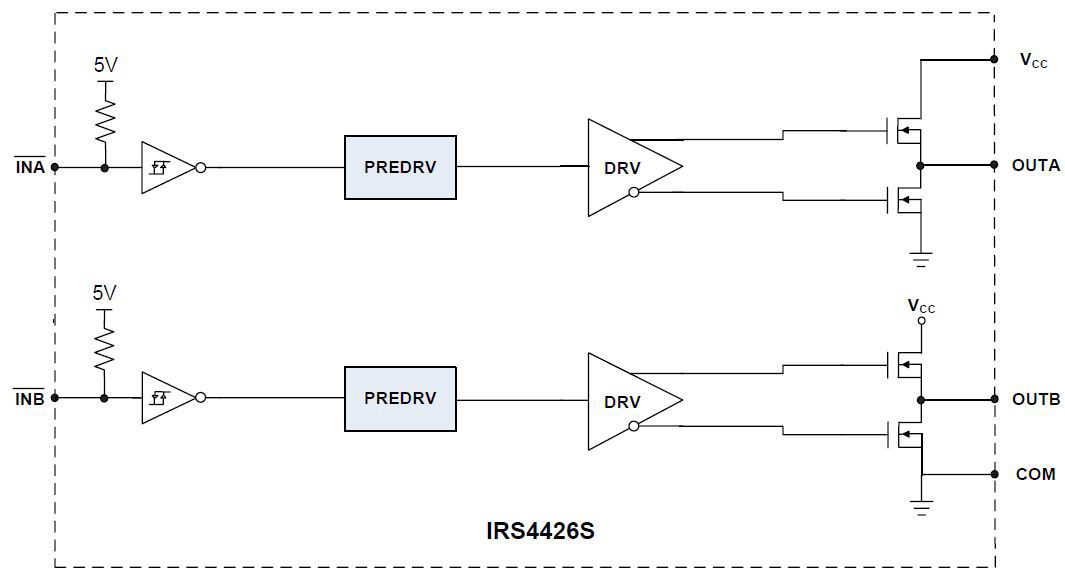

Circuit_Diagramm_IRS4426S
Circuit_Diagramm_IRS4426S
Circuit_Diagramm_IRS4426S Circuit_Diagramm_IRS4426S Circuit_Diagramm_IRS4426S
×
