IRS21091S

600 V half-bridge gate driver IC with shutdown and programmable deadtime
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRS21091S
IRS21091S
ea.
Data Sheet

Product details

  • Channels
    2
  • Configuration
    Half Bridge
  • Input Vcc
    10 V to 20 V
  • Isolation Type
    Functional levelshift JI (Junction Isolated)
  • Output Current (Source)
    0.29 A
  • Output Current (Sink)
    0.6 A
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    200 ns
  • Turn On Propagation Delay
    750 ns
  • VBS UVLO (On)
    8.9 V
  • VBS UVLO (Off)
    8.2 V
  • VCC UVLO (On)
    8.9 V
  • VCC UVLO (Off)
    8.2 V
  • Voltage Class
    600 V
Recommended
OPN
IRS21091STRPBF
Product Status active and preferred
Infineon Package
SOIC 8N
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
SOIC 8N
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
600 V Half Bridge Driver IC with typical 0.29 A source and 0.6 A sink currents in 8 Lead SOIC package for IGBTs and MOSFETs. Also available in 8 Lead PDIP.For the new version with our SOI technology we recommend 2ED21091S06F , providing integrated bootstrap diode, better robustness and higher switching frequency

Features

  • Floating driver for bootstrap op.
  • Fully operational to +600 V
  • Tolerant to neg. transient volt.
  • dV/dt immune
  • Gate drive supply: 10 V to 20 V
  • Undervolt. lockout for both channel
  • 3.3, 5, & 15 V logic input compati.
  • Cross-conduction prevention logic
  • Matched prop. delay for both chan.
  • Highside output in phase with input
  • Logic & power ground +/- 5 V offset
  • Internal 500 ns deadtime

Applications

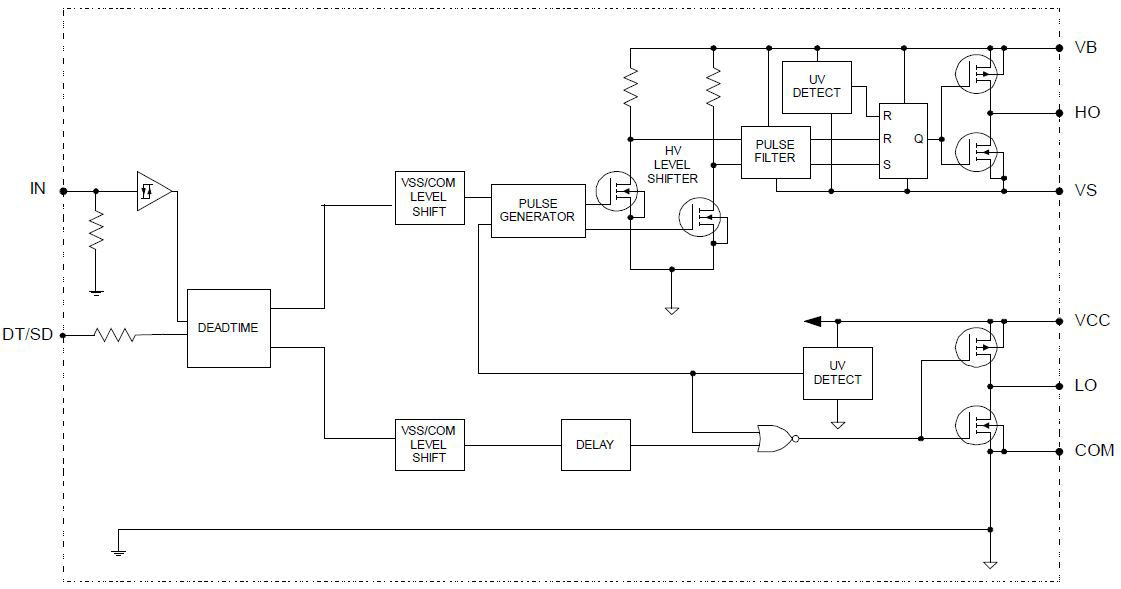

Diagrams

Circuit_Diagramm_IRS21091
Circuit_Diagramm_IRS21091
Circuit_Diagramm_IRS21091 Circuit_Diagramm_IRS21091 Circuit_Diagramm_IRS21091
×
