IPT60R125G7

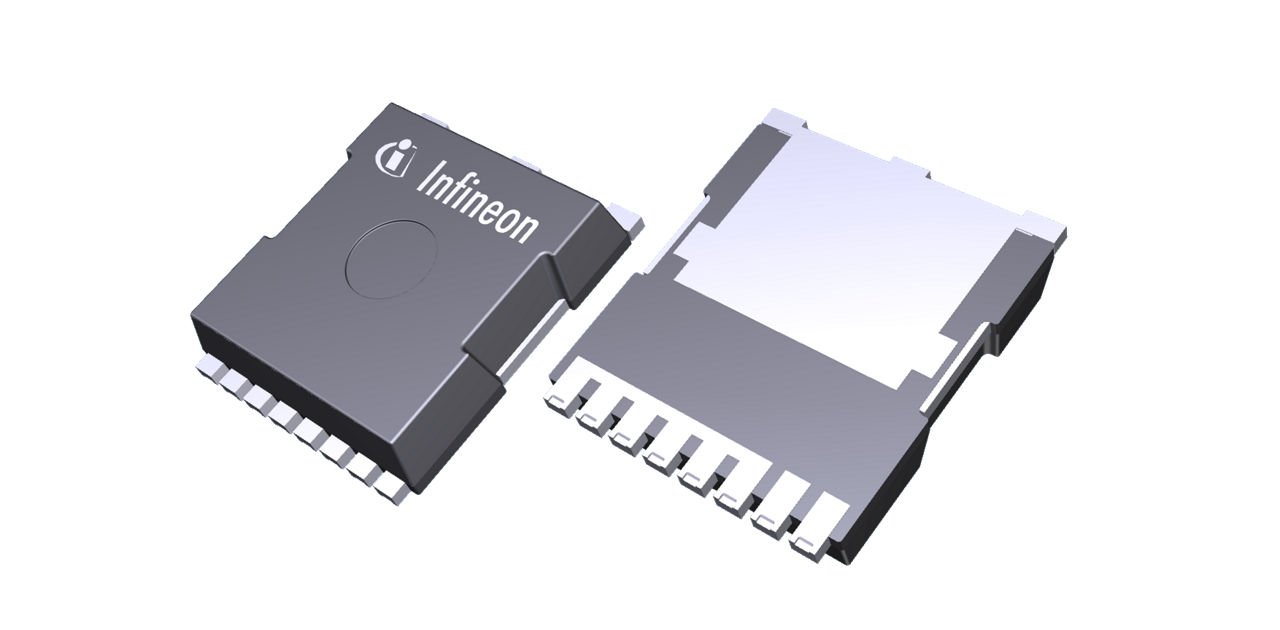

A new SMD package using Kelvin source concept
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPT60R125G7
IPT60R125G7
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    1.52
  • ID max
    20 A
  • ID (@25°C) max
    20 A
  • IDpuls max
    54 A
  • Mounting
    SMT
  • Operating Temperature
    -55 °C to 150 °C
  • Package
    TOLL
  • Pin Count
    8 Pins
  • Polarity
    N
  • Ptot max
    120 W
  • Qgd
    10 nC
  • QG
    27 nC
  • QG (typ @10V)
    27 nC
  • RDS (on) max
    125 mΩ
  • RDS (on) (@10V) max
    125 mΩ
  • RthJA max
    62 K/W
  • RthJC max
    1.04 K/W
  • Rth
    1.04 K/W
  • Special Features
    highest performance
  • VDS max
    600 V
  • VGS(th)
    3.5 V
OPN
IPT60R125G7XTMA1
Product Status not for new design
Infineon Package
PG-HSOF-8
Package Name TOLL
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package
PG-HSOF-8
Package Name TOLL
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
For the first time the CoolMOS™ C7 Gold superjunction MOSFET series (G7) brings together the benefits of the improved 600V CoolMOS™ C7 Gold technology, 4pin Kelvin source capability and the improved thermal properties of the TO-Leadless (TOLL) package to enable a possible SMD solution for high current hard switching topologies such as power factor correction (PFC) up to 3kW and for resonant circuits such as high end LLC.

Features

  • Best-in-class FOM R DS(on) x E oss
  • Best-in-class R DS(on) x Q G
  • Inbuilt Kelvin source pin
  • Low parasitic source inductance (~1nH)
  • MSL1 compliant, total Pb-free
  • Enables improved thermal performance R th

Benefits

  • Higher efficiency by C7 Gold technology
  • Fast switching due to low inductance SMD
  • Fast switching due to Kelvin source pin
  • Low R DS(on)  in small footprint
  • Improved power density due to SMD
  • Assembly cost reduction by using SMD
