IMZC120R017M2H

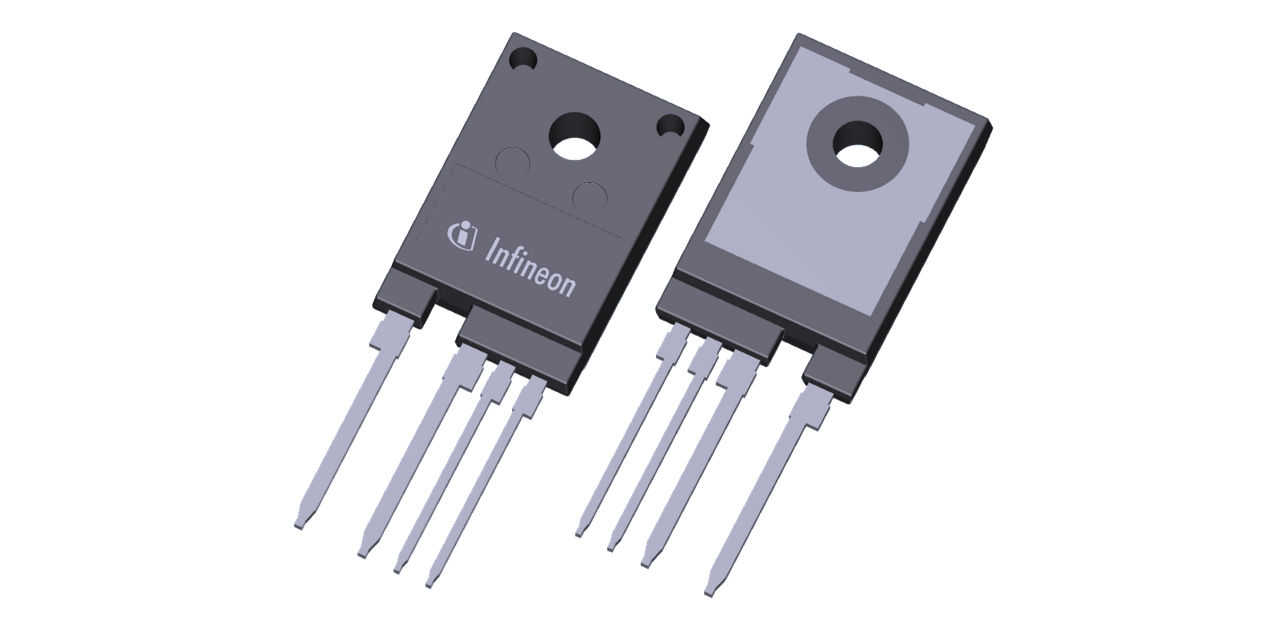

CoolSiC™ MOSFET discrete 1200 V G2 in TO-247 4pin with high creepage package
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IMZC120R017M2H
IMZC120R017M2H
ea.
Data Sheet

Product details

  • Ciss
    2910 pF
  • Coss
    126 pF
  • ID (@ TC=25°C) max
    97 A
  • Mounting
    THT
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    TO-247-4 high creepage
  • Pin Count
    4 Pins
  • Polarity
    N
  • Ptot (@ TA=25°C) max
    382 W
  • Qgd
    24 nC
  • QG
    89 nC
  • Qualification
    Industrial
  • RDS (on) (@ Tj = 25°C)
    17 mΩ
  • RthJA max
    62 K/W
  • RthJC max
    0.39 K/W
  • Technology
    CoolSiC™ G2
  • Tj max
    200 °C
  • VDS max
    1200 V
Recommended
OPN
IMZC120R017M2HXKSA1
Product Status active and preferred
Infineon Package
PG-TO247-4
Package Name TO-247-4 HC 8.8mm
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO247-4
Package Name TO-247-4 HC 8.8mm
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The 1200 V, 17 mΩ G2 in a TO-247 4pin with high creepage package builds on the strengths of Generation 1 technology with significant improvement that provides an advanced solution for more cost-optimized, efficient, compact, easy-to-design and reliable system. It enhanced better performance in both hard-switching operation and soft-switching topologies for all common combinations of AC-DC, DC-DC, and DC-AC stages.

Features

  • RDS(on) = 17 mΩ at VGS = 18 V, Tvj = 25°C
  • Very low switching losses
  • Wider max. VGS range from -10 V to +25 V
  • Overload operation up to Tvj = 200°C
  • Short circuit withstand time 2 µs
  • Benchmark gate threshold voltage 4.2 V
  • Robust against parasitic turn on
  • .XT interconnection technology
  • Tighter VGS(th) parameter distribution

Benefits

  • Better energy efficiency
  • Cooling optimization
  • Higher power density
  • New robustness features
  • Highly reliable
  • Easy paralleling

Documents

Documents

Design resources

Partner solutions

Developer community
