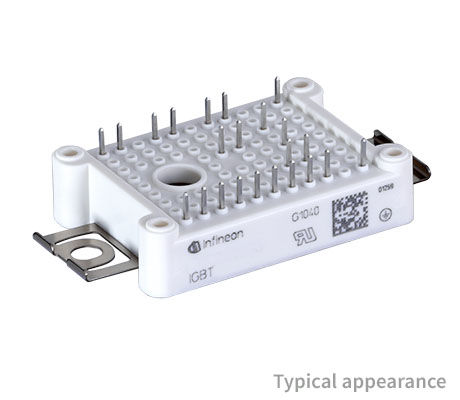

FS50R07W1E3_B11A

END OF LIFE
650 V, 50 A sixpack automotive qualified IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS50R07W1E3_B11A
FS50R07W1E3_B11A
Data Sheet

Product details

  • Applications
    Hybrid Electric Vehicles, eMobility, Drives, CAV, Aircon
  • Configuration
    Sixpack
  • Cooling Concept
    Flat baseplate
  • Dimensions (width)
    28.1 mm
  • Dimensions (length)
    48 mm
  • Features
    PressFIT
  • Housing
    EasyPACK™ 1B
  • IC(nom) / IF(nom)
    50 A
  • IC max
    50 A
  • Qualification
    Automotive
  • Technology
    IGBT3 - E3
  • VCE(sat) (Tvj=25°C typ)
    1.45 V
  • VCES (Tvj=25°C typ)
    650 V
  • VF (Tvj=25°C typ)
    1.55 V
  • Voltage Class max
    650 V
OPN
FS50R07W1E3B11ABOMA1
Product Status discontinued
Infineon Package AG-EASY1BA-311
Package Name N/A
Packing Size 24
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package AG-EASY1BA-311
Package Name -
Packing Size 24
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
EasyPACK™ 1B Modules with Trench/Fieldstop IGBT3, Emitter Controlled 3 diode and PressFIT / NTC.Evaluation Board available

Features

  • blocking voltage capability to 650V
  • Low Switching Losses
  • Low VCEsat
  • Trench IGBT 3
  • Al Substrate Low Thermal Restistance
  • High Power Density
  • Compact Design
  • PressFIT Contact tech
  • RoHS compliant
  • Rugged mounting clamps
